Purchase Includes
(1) Silicone Hose
(1) 2.5" T-Bolt Clamp
(2) 13mm–22mm Worm-Gear Clamps
(4) aluminium Push-On Fittings
(1) Outlet Pipe

Interior Material
Heat Resistant Embedded Fibers w/ Inserted Steel Rings

Exterior Material
Silicone

Max Temperature
330°F (166°C)

Inner Diameter
2.38" (turbo side)–2.75" (intake side)

Outer Diameter
2.63"–3.25"

Note
This inlet hose will fit any stock or aftermarket turbo with a 2.4" inlet size. Turbos with an inlet size larger than 2.4" may not work with this product.

Chassis Codes
GE
GH
GR
GV

Engine Codes
EJ205
EJ255

Also Fits
2005–2009 Subaru Legacy GT
2005–2009 Subaru Outback XT

Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
These clamps have an operating range of 18-35 in-lbs (2-4N*M).
Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

22 in-lbs (2.5N*M) recommended for all worm-gear clamps.
These clamps have an operating range of 18-27 in-lbs 2-3N*M.
Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

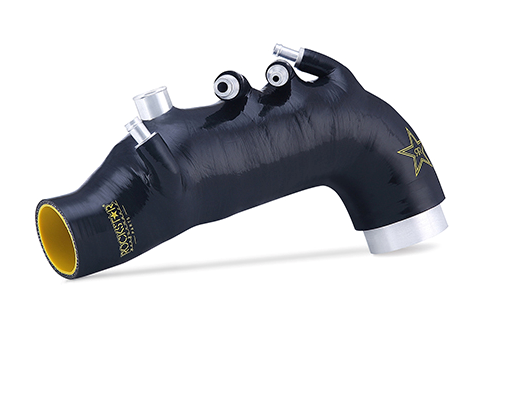

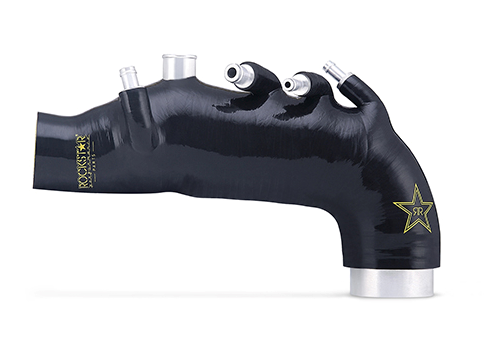

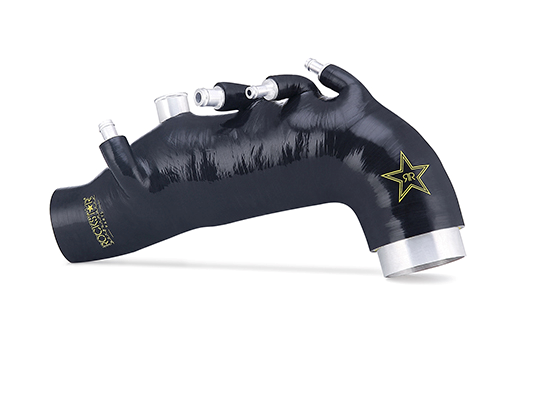

Mishimoto's silicone induction hose for the 08–14 Subaru WRX is made from a combination of high-grade silicone and heat-resistant embedded fibers for a high-quality replacement for your stock Subaru turbo inlet hose.

The Mishimoto WRX induction hose is wire reinforced to prevent collapsing under pressure and features increased flow thanks to a larger internal diameter. The accessory ports of this induction hose come with CNC aluminium fittings with a 3-barb design that will not fall out or leak under load. This turbo inlet hose also comes with everything you’ll need for installation, including a robust 2.5"" T-bolt clamp for the turbo as well as added worm-gear clamps. Available in black, blue, or red, the silicone WRX induction hose retains stock fitment, the ultimate upgrade in performance and style. This hose will work with your stock airbox hose, Mishimoto Subaru WRX/STI Performance Cold-Air Intake, or Mishimoto Subaru WRX/STI Performance Race Intake. As with all of our products, this hose comes with the Mishimoto Lifetime Warranty!
