£849.43

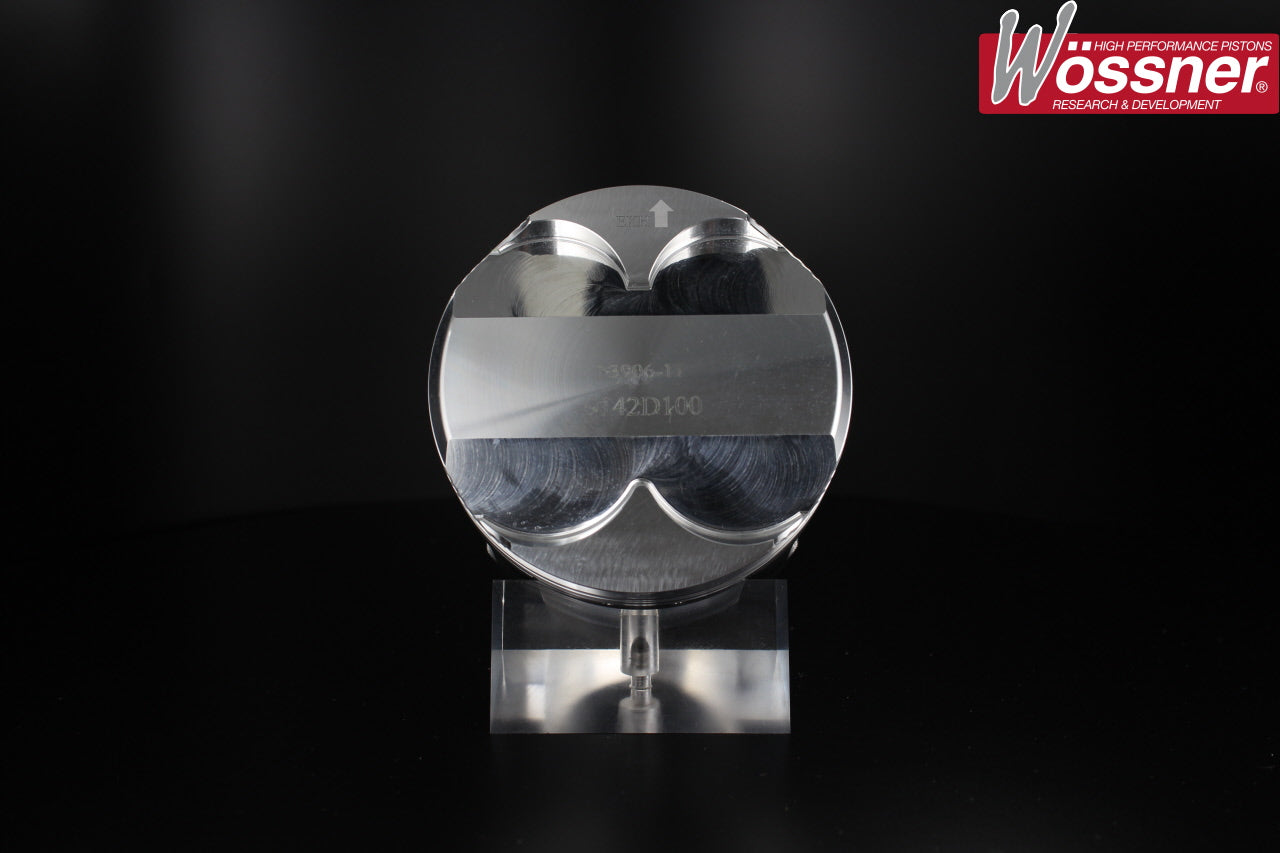

Wössner 145, 156, 155, 156, GTV & Spider 2.0 16v High Comp Forged Piston Kit.
Kit reference: K9142
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | AR 32301 |
|---|---|
| Model years from | 1998 |
| Model years to | 2003 |
| Bore Size | 83.5mm , 83mm , 84mm |
| Stroke | 91mm |
| Compression Height | 32mm |
| Number of Rings | 3 |
| Piston pin diameter | 20mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9142D050 | 83.43mm | 12.74:1 |
| K9142D100 | 83.93mm | 12.88:1 |
| K9142DA | 82.93mm | 12.6:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
