£960.67

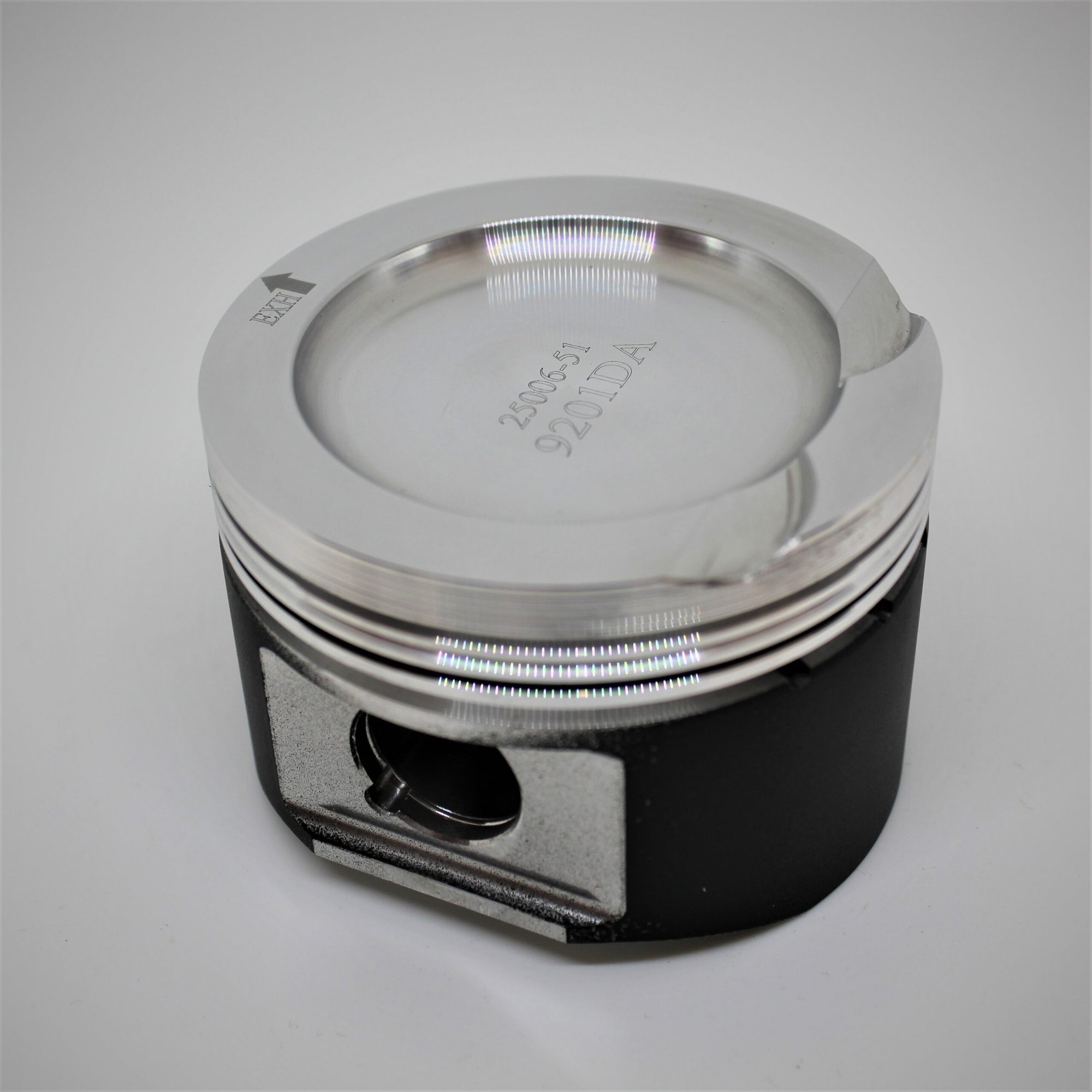

Wössner Audi Coupe S2 2.2 Turbo (5 Cyl) Forged Piston Kit.
Kit reference: K9201-5
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | 3B / ABY |
|---|---|
| Model years from | 1993 |
| Model years to | 1996 |
| Bore Size | 81.5mm , 81mm , 82.5mm , 82mm , 83.5mm , 83mm |
| Stroke | 86.4mm |
| Compression Height | 33.4mm |
| Number of Rings | 3 |
| Piston pin diameter | 20mm |
| Number of cylinders | 5 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9201D050-5 | 81.43mm | 8.09:1 |
| K9201D100-5 | 81.93mm | 8.17:1 |
| K9201D150-5 | 82.43mm | 8.26:1 |
| K9201D200-5 | 82.93mm | 8.35:1 |
| K9201D250-5 | 83.43mm | 8.44:1 |
| K9201DA-5 | 80.93mm | 8:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
