£849.43

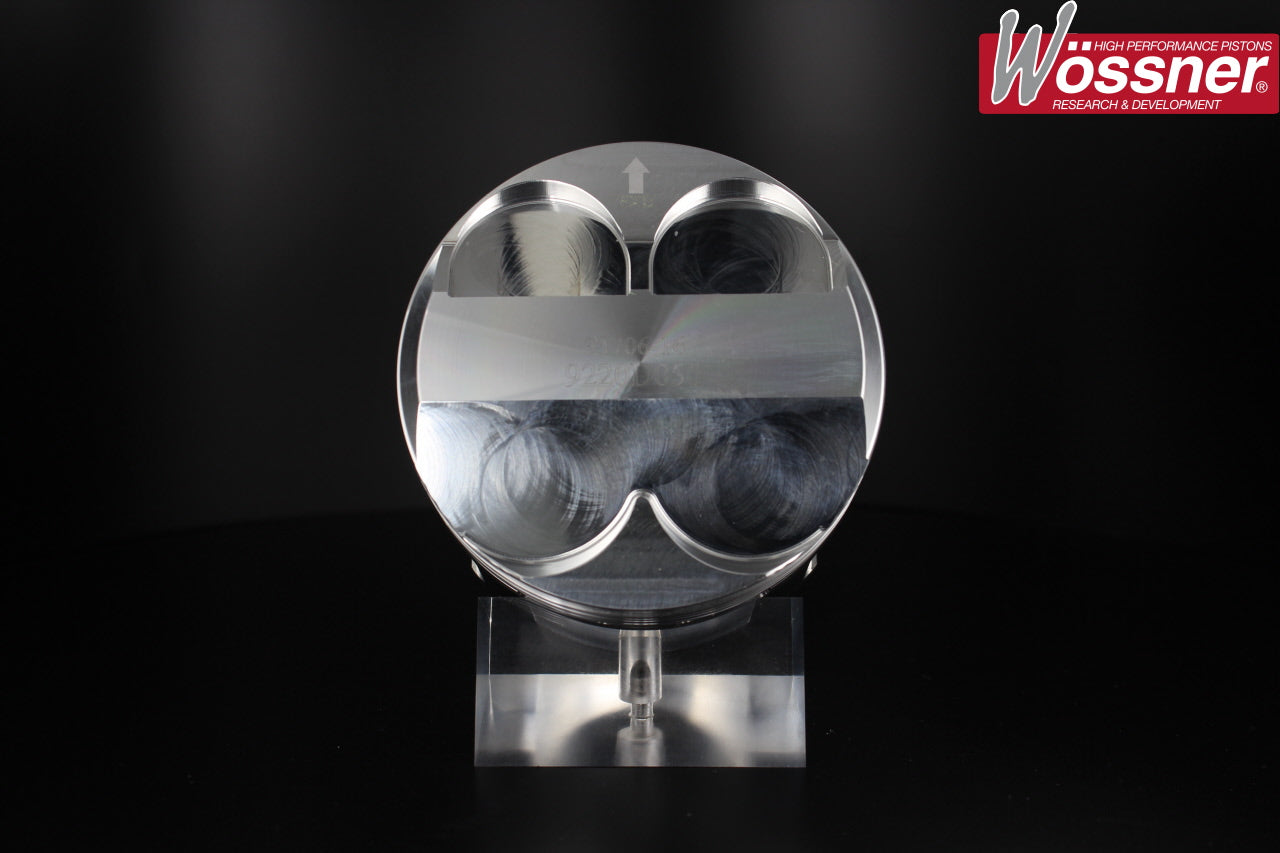

Wössner Duratec 2.0 16v High Comp Forged Piston Kit.
Kit reference: K9220
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | CJBA |
|---|---|
| Model years from | 2000 |
| Model years to | 2007 |
| Bore Size | 87.5mm – K9220DA , 88.5mm – K9220D100 , 88mm – K9220D050 |
| Stroke | 83.1mm |
| Compression Height | 28.65mm |
| Number of Rings | 3 |
| Piston pin diameter | 21mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9220D050 | 87.93mm | 12.63:1 |
| K9220D100 | 88.43mm | 12.76:1 |
| K9220DA | 87.43mm | 12.5:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
