£1,672.18

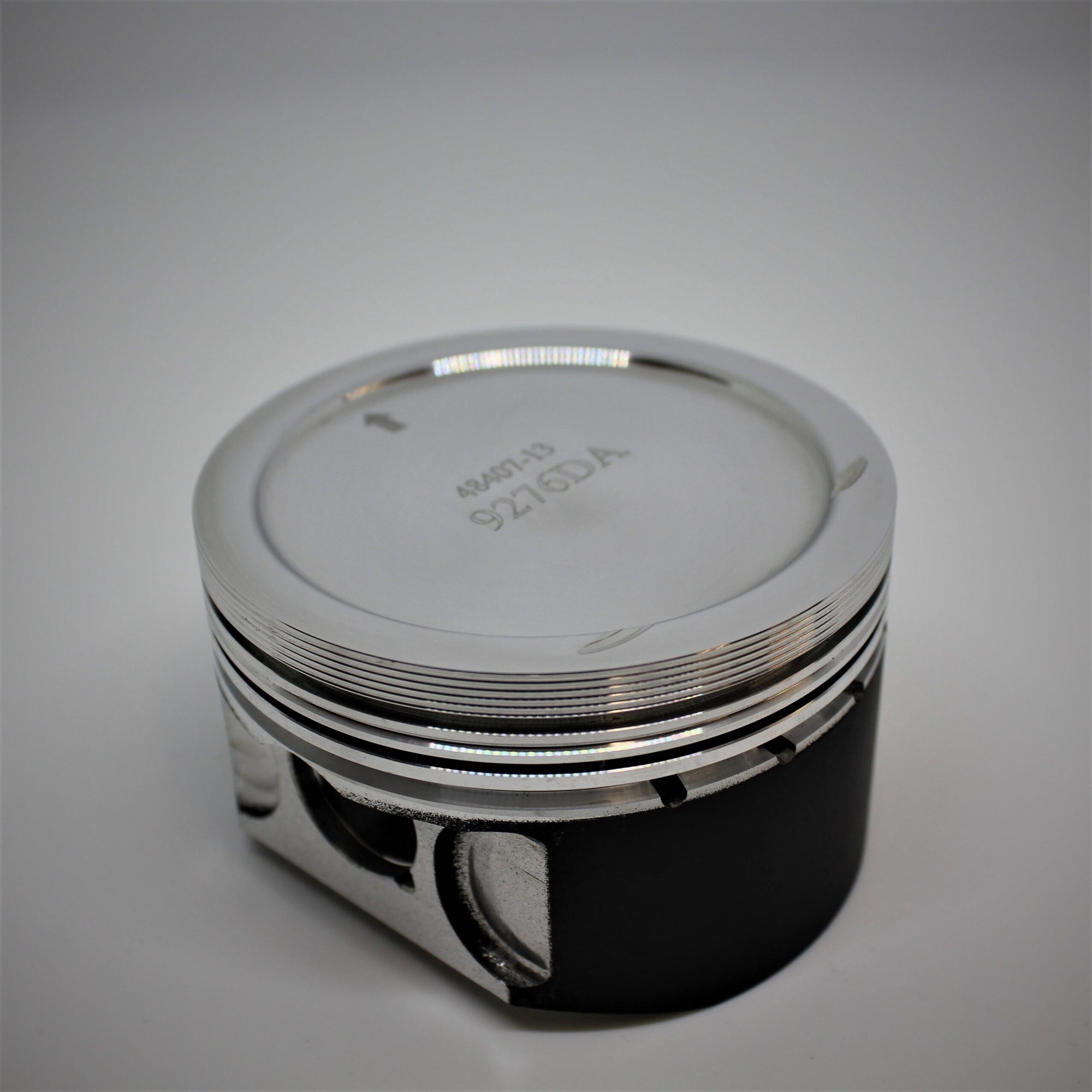

Wössner forged piston and PEC H-beam steel connecting rod package for Focus ST 2.5 20v Turbo 5cyl.
The current catalogue kit includes ARP 2000 series bolts and ARP assembly lubricant.
Bore size: Please confirm the required bore size before ordering. The kit reference does not identify an individual piston size.
| Engine Code | HYDA / HUWA |
|---|---|
| Model years from | 2005 |
| Model years to | 2012 |
| Bore Size | 83.5mm – K9276D050 , 83mm – K9276DA , 84mm – K9276D100 |
| Stroke | 93.2mm |
| Compression Height | 28.4mm |
| Number of Rings | 3 |
| Piston pin diameter | 21mm |
| Number of cylinders | 5 |
| Valves Per Cylinder | 4 |
| Connecting rod length (centre to centre) | 145mm |
| Engine Code | HYDA / HUWA |
|---|---|
| Model years from | 2005 |
| Model years to | 2012 |
| Connecting rod length (centre to centre) | 145mm |
| Big end diameter | 53mm |
| Big end width | 25.65mm |
| Small end diameter | 21mm |
| Small end width | 22mm |
| Bolt thread | 3/8" |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9276D050 | 83.43mm | 9.0:1 |
| K9276D100 | 83.93mm | 9.0:1 |
| K9276DA | 82.93mm | 9.0:1 |
Piston diameter and cylinder bore are different measurements. Confirm the correct size and engine specification before ordering.
