£892.21

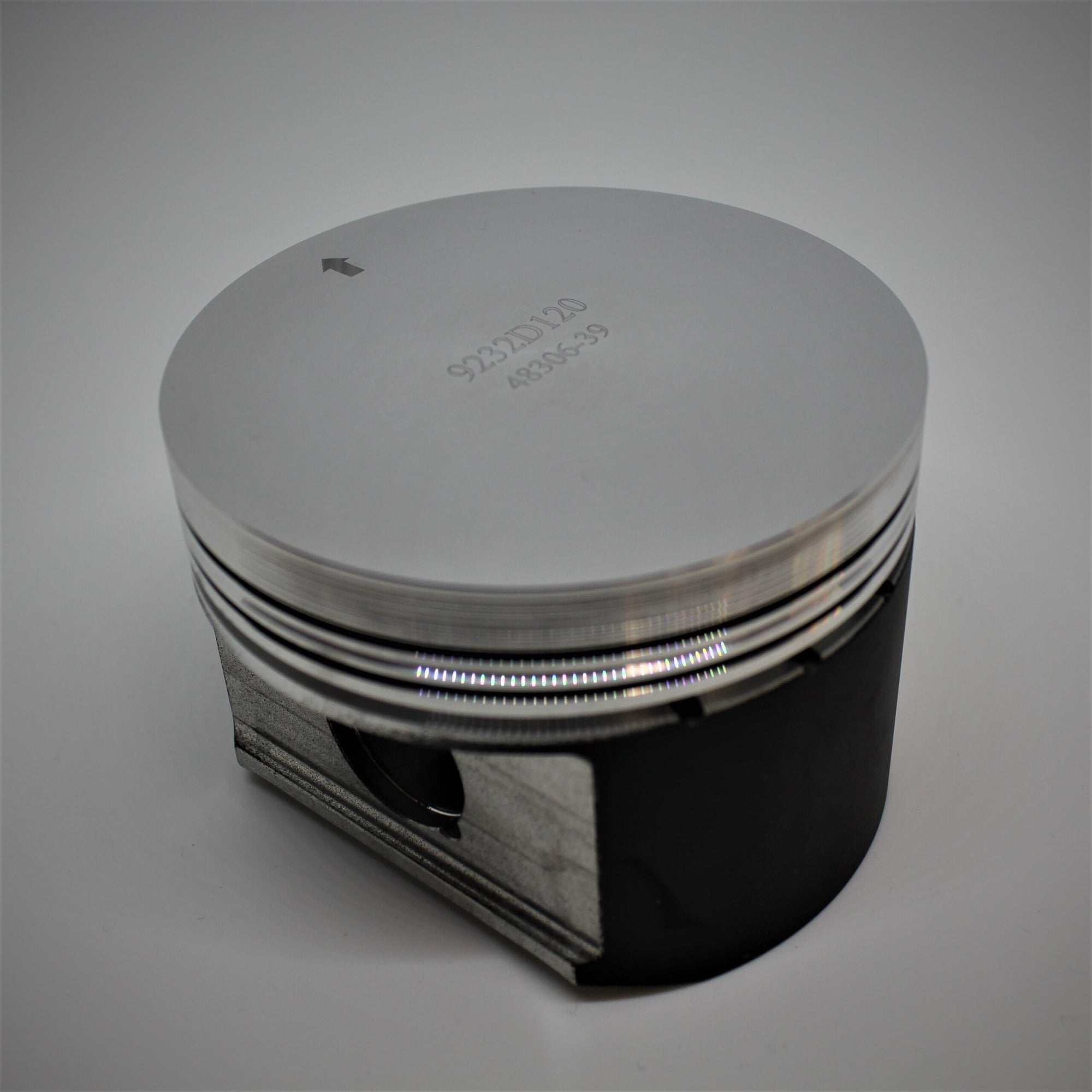

Wössner Pinto 2.0 8v Flat top Forged Piston Kit.
Kit reference: K9232
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | TL20 |
|---|---|
| Model years from | 1978 |
| Model years to | 1985 |
| Bore Size | 90.9mm – K9232D010 , 91.25mm – K9232D045 , 91.5mm – K9232D070 , 91mm – K9232D020 , 92.5mm – K9232D170 , 92mm – K9232D120 , 93mm – K9232D220 |
| Stroke | 77mm |
| Compression Height | 41.65mm |
| Number of Rings | 3 |
| Piston pin diameter | 24mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9232D010 | 90.83mm | 12:1 |
| K9232D020 | 90.93mm | 12.02:1 |
| K9232D045 | 91.18mm | 12.08:1 |
| K9232D070 | 91.43mm | 12.15:1 |
| K9232D120 | 91.93mm | 12.27:1 |
| K9232D170 | 92.43mm | 12.39:1 |
| K9232D220 | 92.93mm | 12.51:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
