£849.43

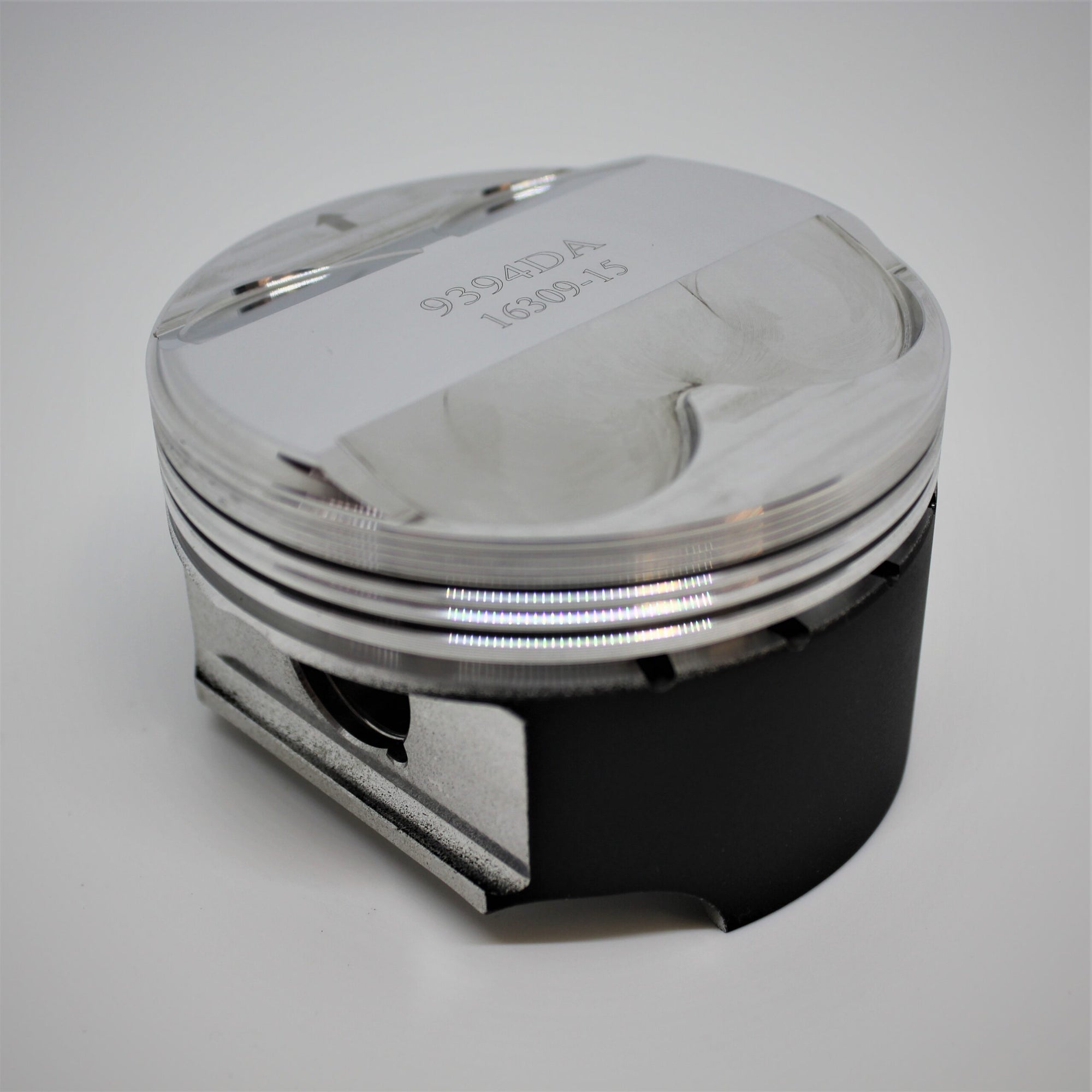

Wössner 2.0 16v Zetec-R Black Top High Comp Forged Piston kit.
Kit reference: K9394
Bore size: Please confirm the required bore size before ordering. This kit reference does not identify an individual piston size.
| Engine Code | NGA |
|---|---|
| Model years from | 1996 |
| Model years to | 2001 |
| Bore Size | 84.8mm – K9394DA , 85.5mm – K9394D070 , 86mm – K9394D120 |
| Stroke | 88mm |
| Compression Height | 28mm |
| Number of Rings | 3 |
| Piston pin diameter | 20.6502mm |
| Number of cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio |
|---|---|---|
| K9394D070 | 85.42mm | 12.18:1 |
| K9394D120 | 85.92mm | 12.31:1 |
| K9394DA | 84.72mm | 12:1 |
Piston diameter and cylinder bore are different measurements. Confirm engine specification, compression ratio and the correct size before ordering.
