206 Gti 180 2.0 16v Low Comp Wossner Forged Piston & Steel Con Rod Package (K9287/G0020)

Wossner Pistons

206 Gti 180 2.0 16v Low Comp Wossner Forged Piston & Steel Con Rod Package (K9287/G0020)

£1,337.74

206 Gti 180 2.0 16v Low Comp Wossner Forged Piston & Steel Con Rod Package.

Manufacturer kit reference: K9287/G0020

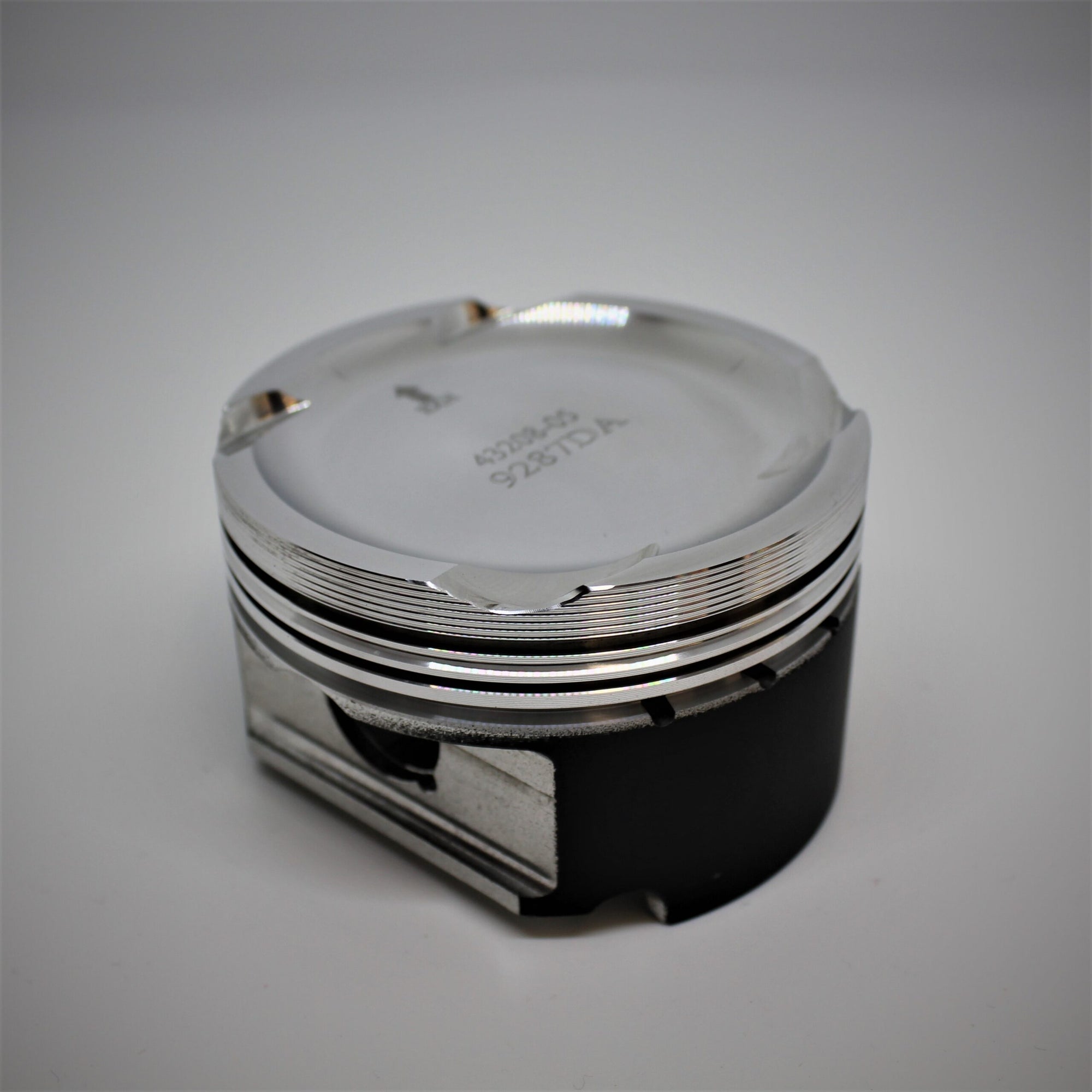

206 Gti 180 2.0 16v Low Comp Wossner Forged Piston Kit

Engine Code	EW10J4R
YOM From	2003
YOM To	current
Bore Size	85.5mm – K9287D050 , 85mm – K9287DA
Stroke	88mm
Compression Height	29.5mm
OEM Comp Ratio	11:01
Number of Rings	3
OEM Rod Length	139mm
Clip Part Number	CW21
Pin Size	21mm
Pin Part Number	WP139-SP
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0020
Con Rod Length C/C	139mm

EW10J4RS 2.0 16V 206 GTi 180 & C4 VTR H-Beam Connecting rods

Engine Code	EW10J4RS
YOM From	2003
YOM To	2010
Con Rod Length C/C	139mm
Con Rod Big End Dia	48.6mm
Con Rod Big End Width	24.20mm
Con Rod Small End Dia	21mm
Con Rod Small End Width	19.10mm
Con Rod Bolt	3/8"

Kit contents

206 Gti 180 2.0 16v Low Comp Wossner Forged Piston Kit
EW10J4RS 2.0 16V 206 GTi 180 & C4 VTR H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9287D050	85.43mm	8.59:1	2020cc
K9287DA	84.93mm	8.5:1	1997cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
