£1,401.83

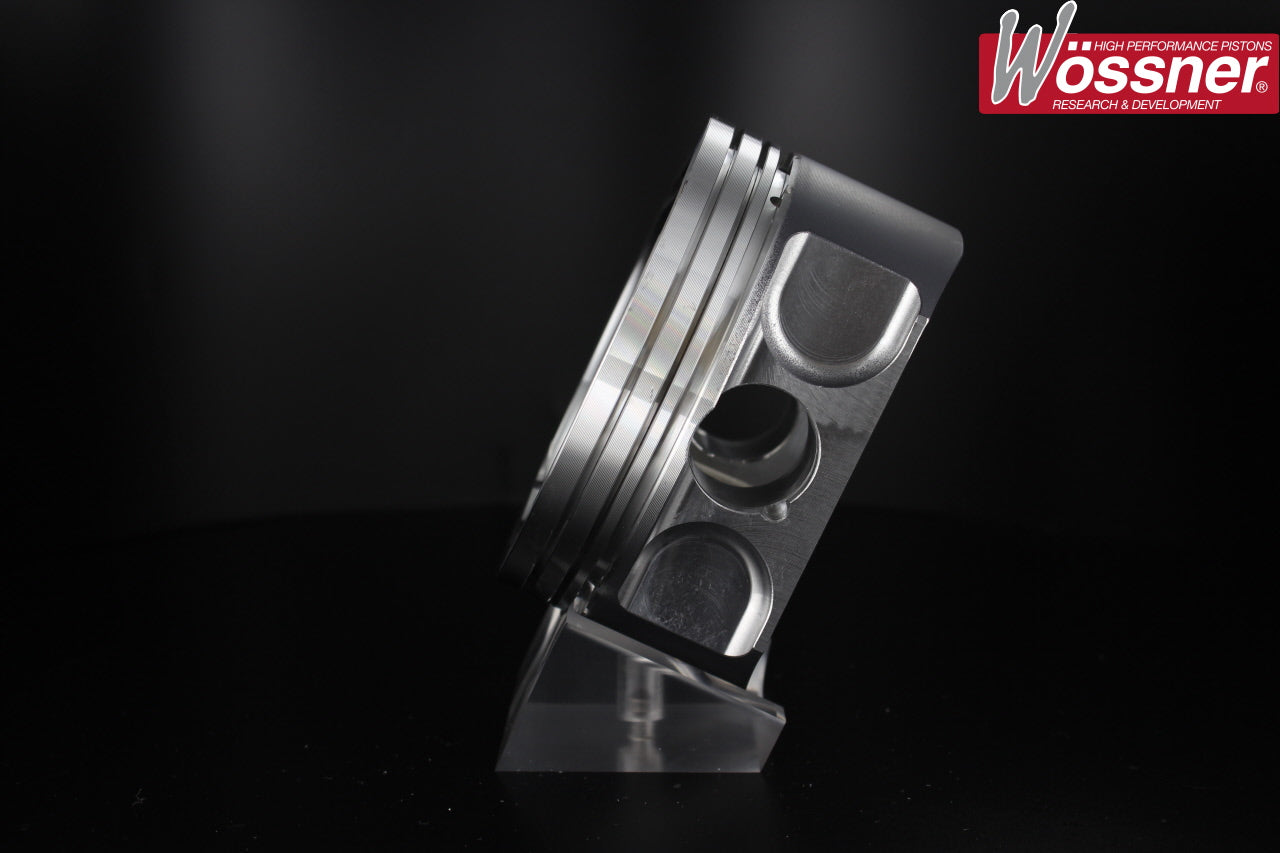

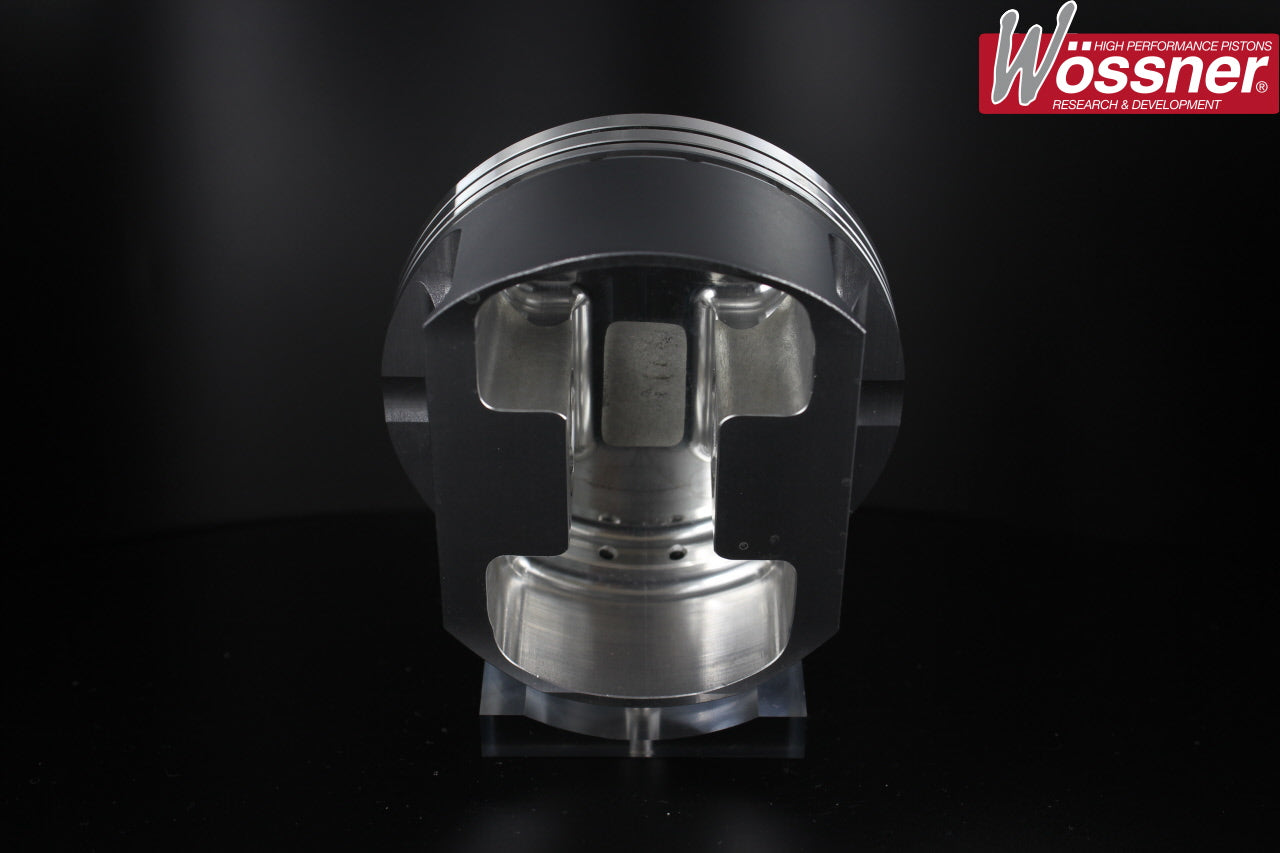

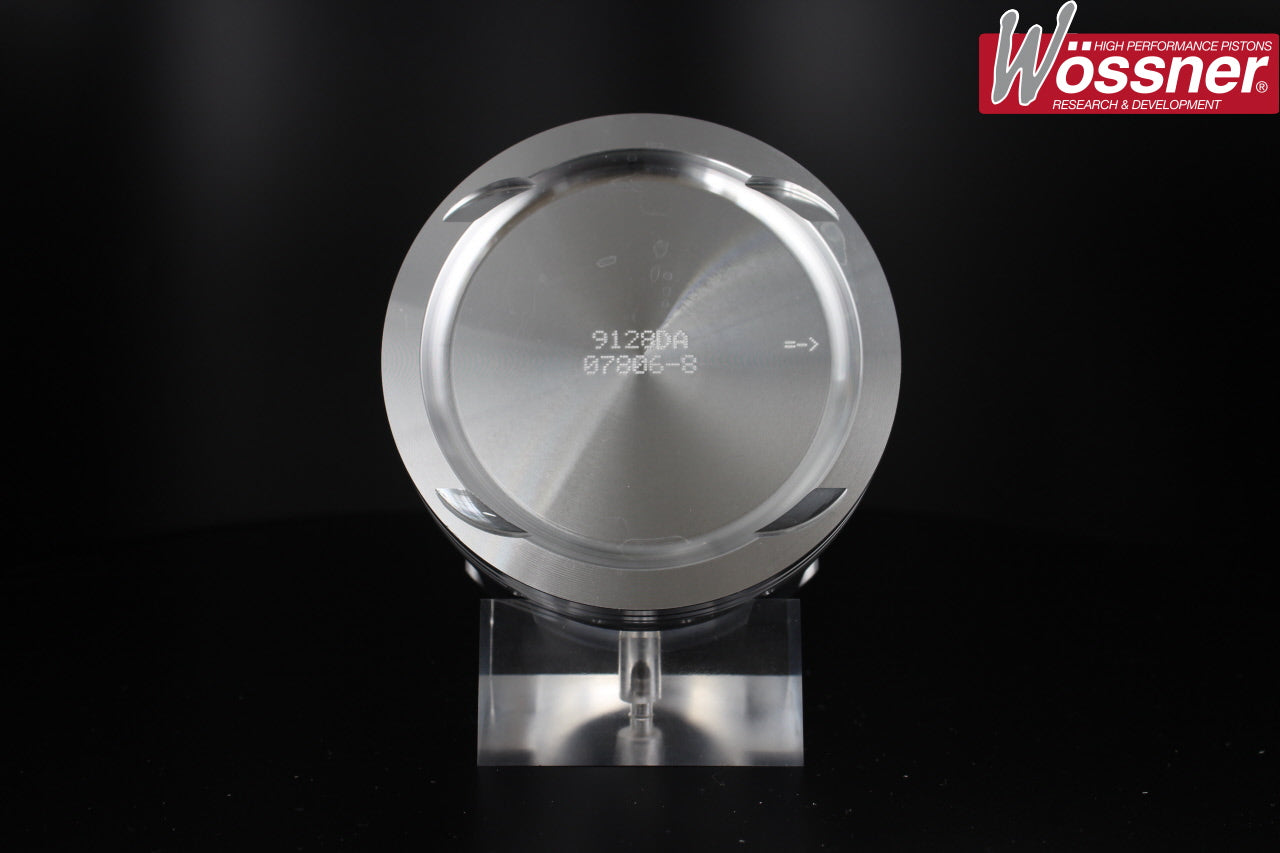

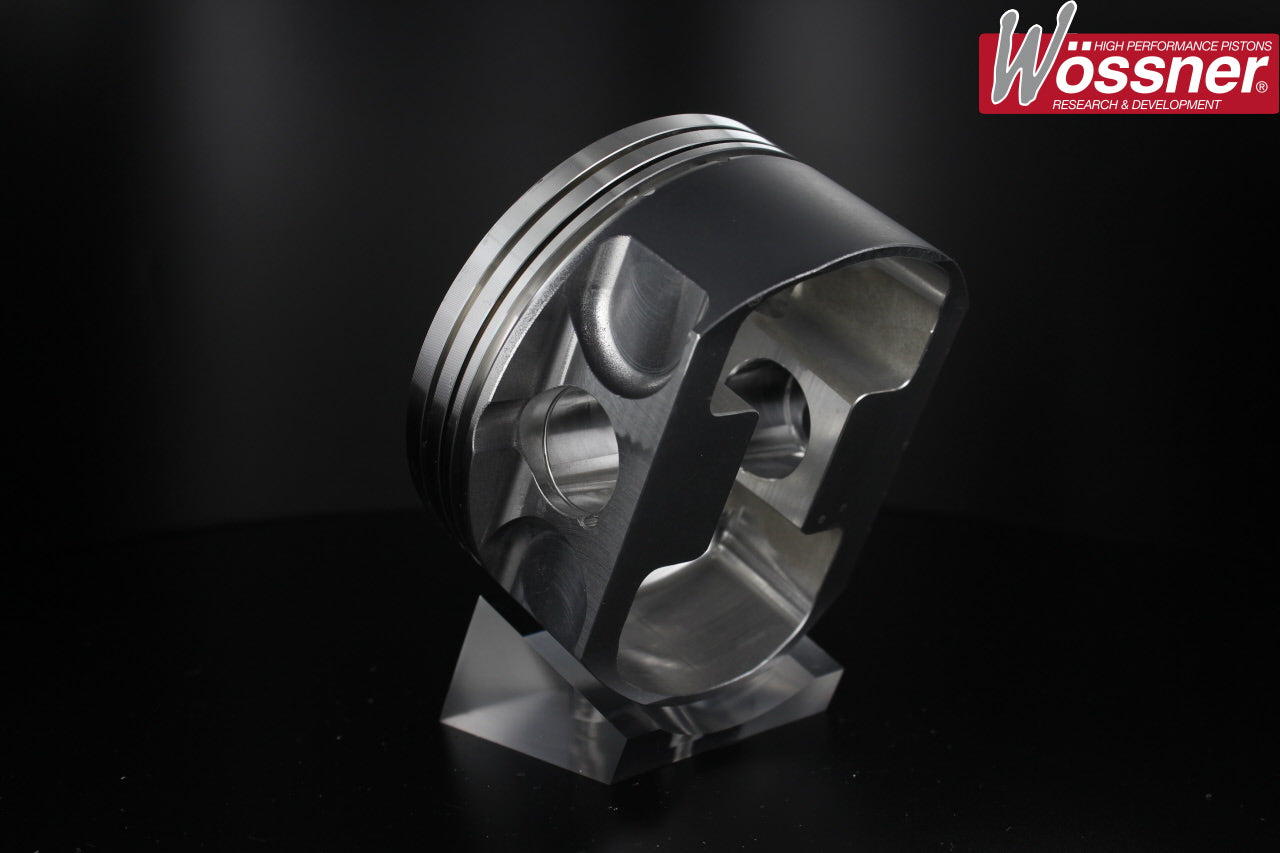

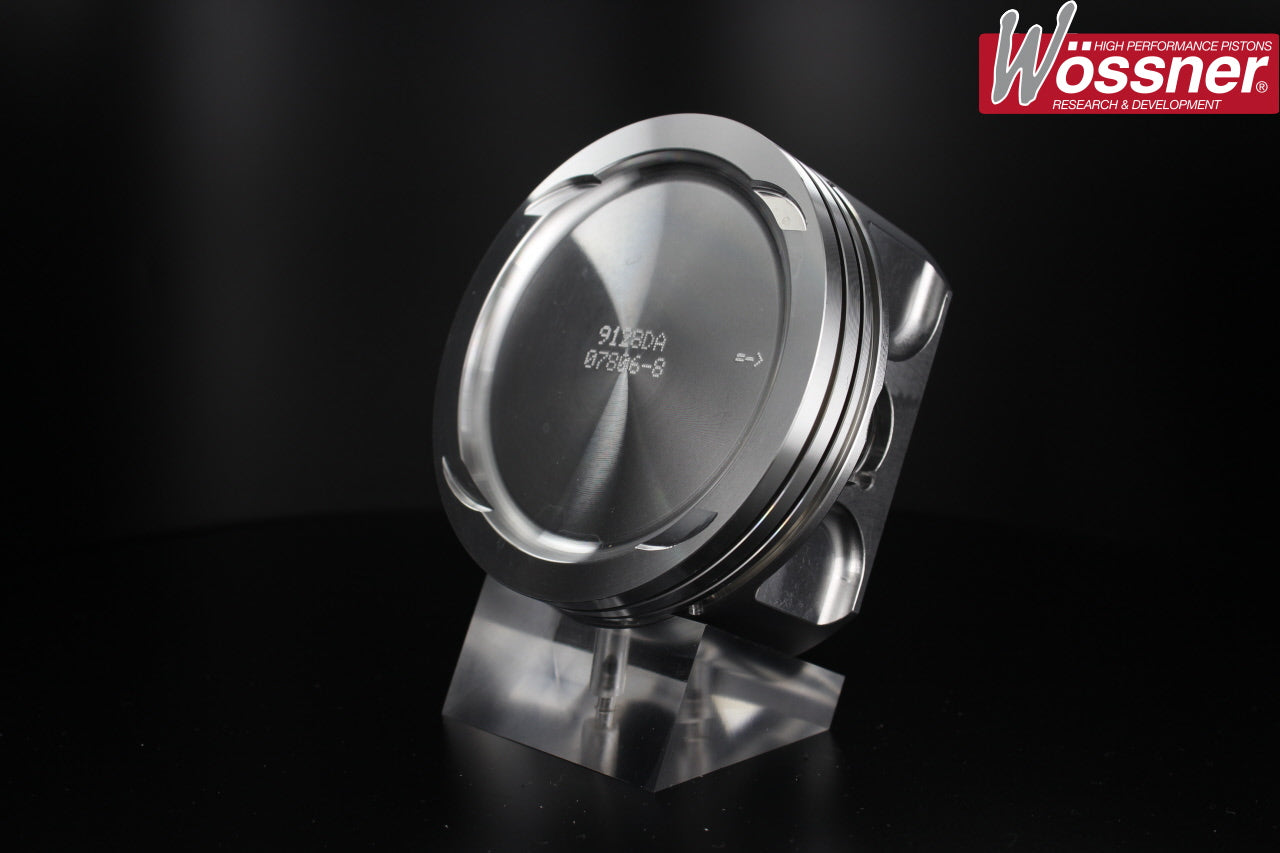

350Z 3.5 V6 34v Low Comp Ratio Forged Piston Kit.
Manufacturer kit reference: K9128
| Engine Code | VQ35DET |
|---|---|
| YOM From | 2003 |
| YOM To | 2009 |
| Bore Size | 95.5mm , 96mm |
| Stroke | 81.4mm |
| Compression Height | 29.6mm |
| OEM Comp Ratio | 10.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9128D050 | 95.93mm | 8.57:1 | 3534cc |
| K9128DA | 95.43mm | 8.5:1 | 3498cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
