£849.43

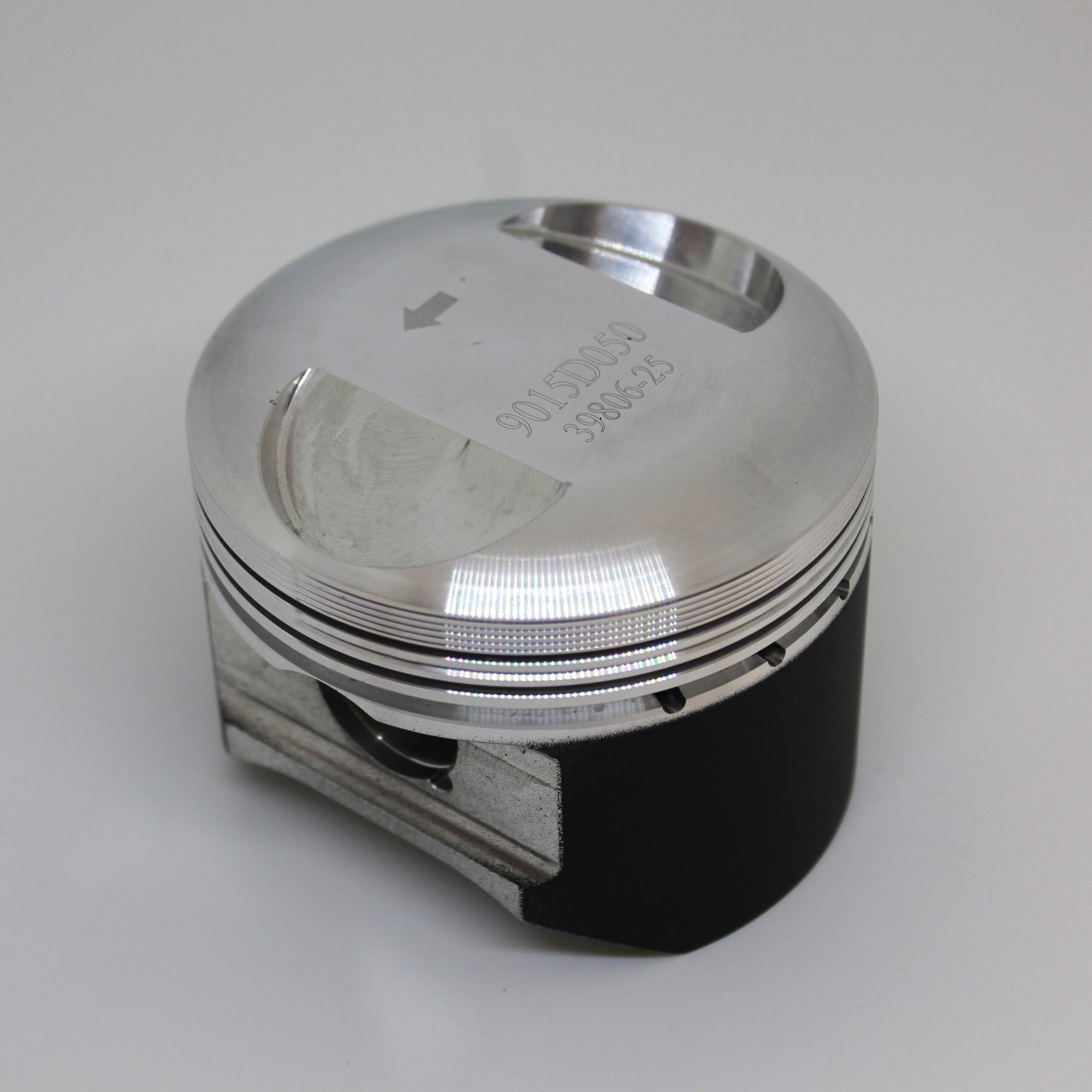

356B, 356SC & 912 Super 90 1.8 8v Forged Piston Kit.
Manufacturer kit reference: K9015
| Engine Code | 36 , 616.16 |
|---|---|
| YOM From | 1959 |
| YOM To | 1969 |
| Bore Size | 82.5mm – K9015DA , 83.5mm – K9015D100 , 83mm – K9015D050 |
| Stroke | 74mm |
| Compression Height | 27mm |
| OEM Comp Ratio | 9.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 136mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9015D050 | 82.93mm | 9.6:1 | 1620cc |
| K9015D100 | 83.43mm | 9.71:1 | 1620cc |
| K9015DA | 82.43mm | 9.5:1 | 1582cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
