£1,401.83

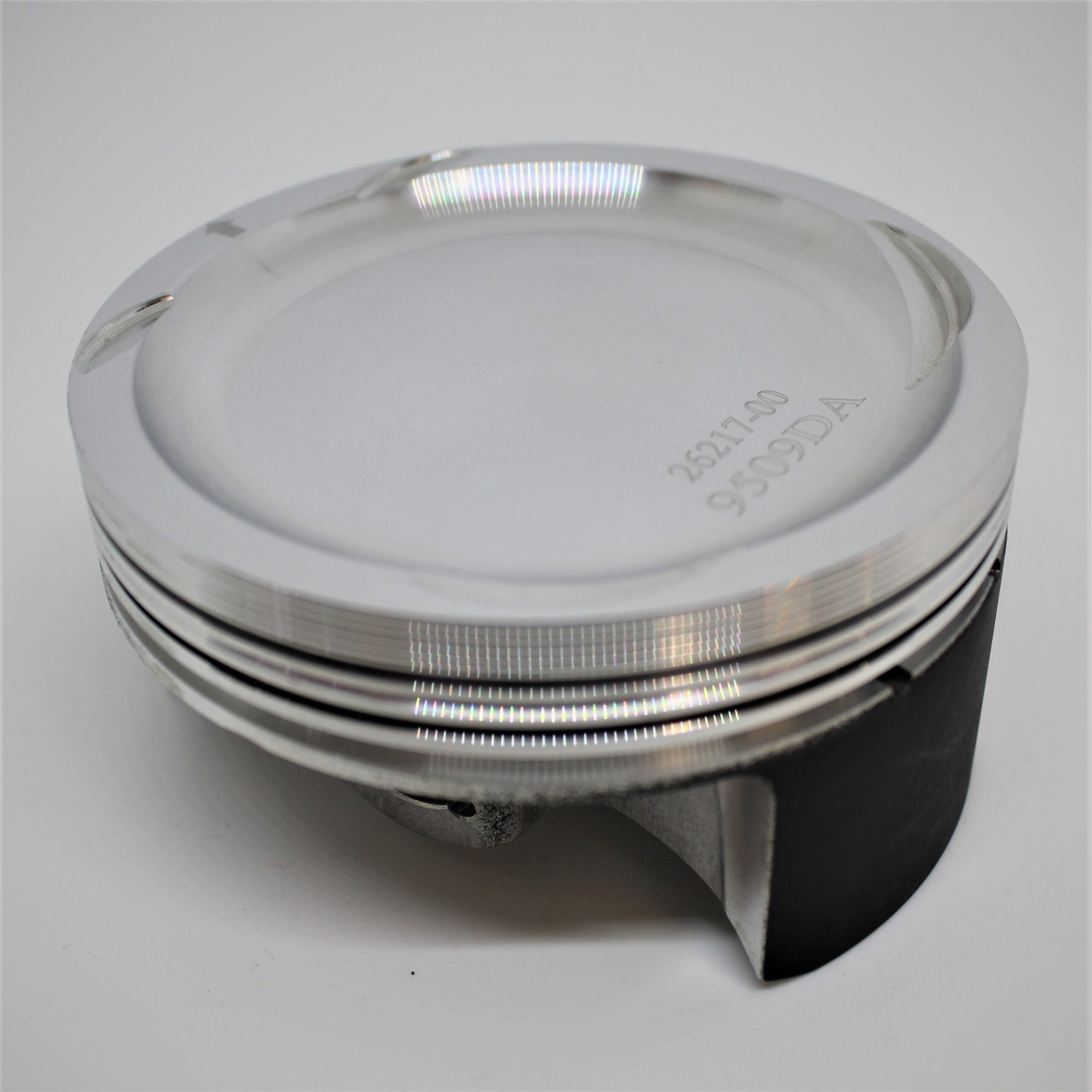

370Z 3.7 V6 24v Low Comp Forged Piston Kit.
Manufacturer kit reference: K9509
| Engine Code | VQ37VHR |
|---|---|
| YOM From | 2009 |
| YOM To | current |
| Bore Size | 95.5mm – K9509DA , 96mm – K9509D050 |
| Stroke | 86mm |
| Compression Height | 30.4mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP098 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9509D050 | 95.93mm | 8.5:1 | 3734cc |
| K9509DA | 95.43mm | 8.5:1 | 3695cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
