£849.43

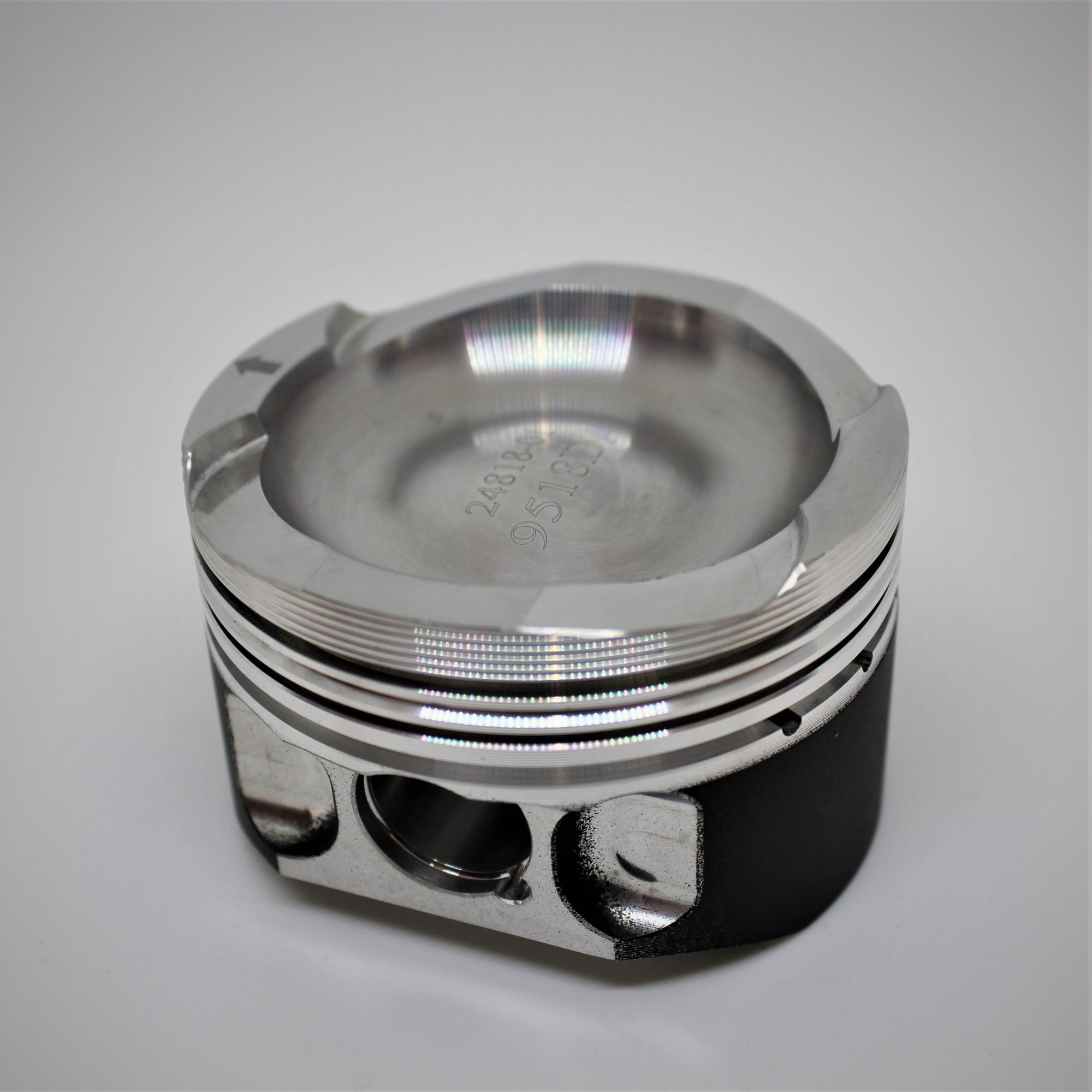

500 Abarth 1.4 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9518
| Engine Code | 312A |
|---|---|
| YOM From | 2008 |
| YOM To | 2016 |
| Bore Size | 72.5mm – K9518D050 , 72mm – K9518DA , 73mm – K9518D100 |
| Stroke | 84mm |
| Compression Height | 26.8mm |
| OEM Comp Ratio | 9.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 129mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP064 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G308 |
| Con Rod Length C/C | 129mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9518D050 | 72.42mm | 9.92:1 | 1386cc |
| K9518DA | 71.92mm | 9.8:1 | 1367cc |
| K9518D100 | 72.92mm | 10.05:1 | 1406cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
