£849.43

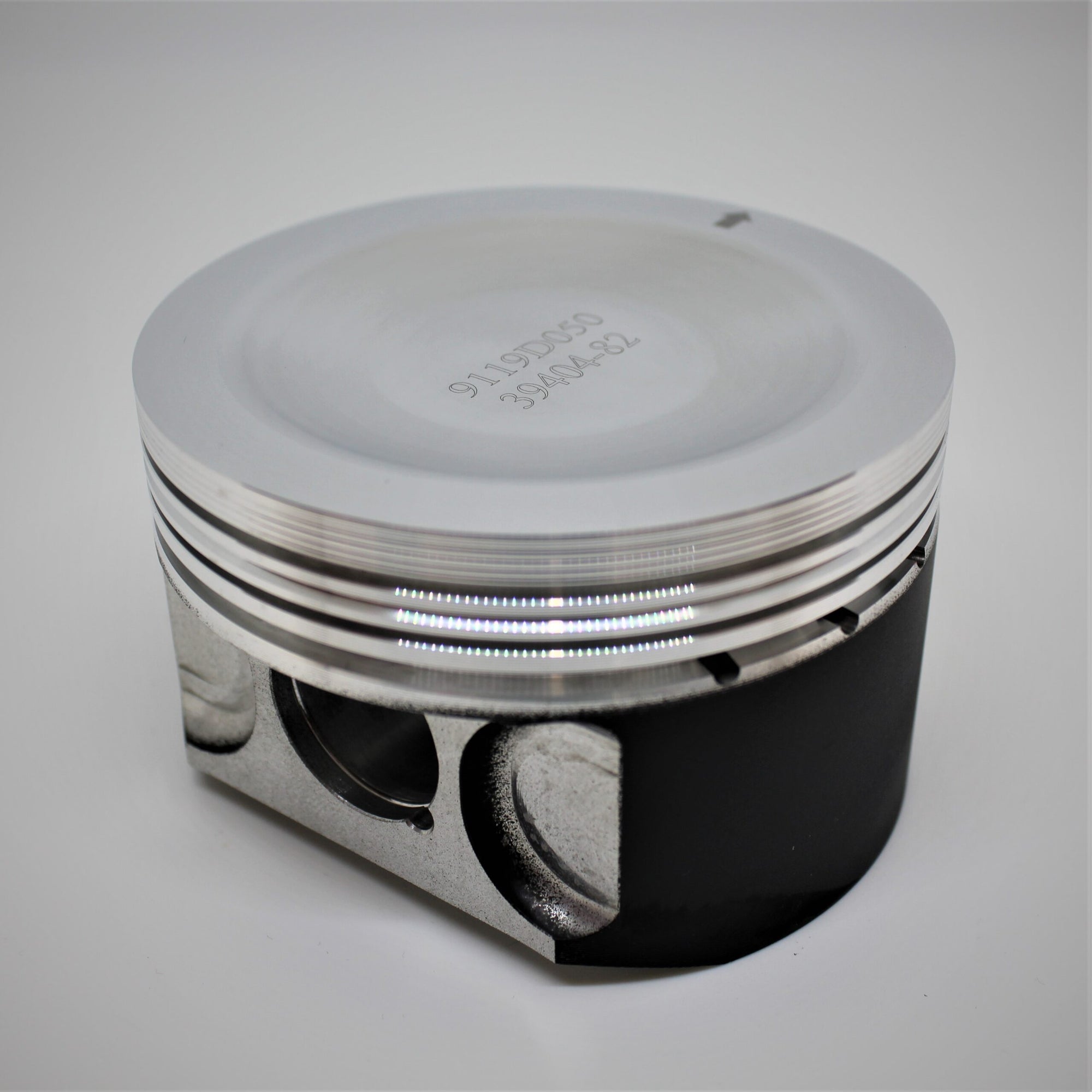

9-5 2.3Ltr. 16V Turbo Forged Piston Kit.
Manufacturer kit reference: K9119
| Engine Code | B235E |
|---|---|
| YOM From | 1997 |
| YOM To | 2009 |
| Bore Size | 90.5mm , 90mm , 91mm |
| Stroke | 90mm |
| Compression Height | 32.9mm |
| OEM Comp Ratio | 9.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 153mm |
| Clip Part Number | CW24 |
| Pin Size | 24mm |
| Pin Part Number | WP137-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0070 |
| Con Rod Length C/C | 153mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9119DA | 89.93mm | 9.25:1 | 2290cc |
| K9119D050 | 90.43mm | 9.34:1 | 2315cc |
| K9119D100 | 90.93mm | 9.43:1 | 2341cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
