£1,471.92

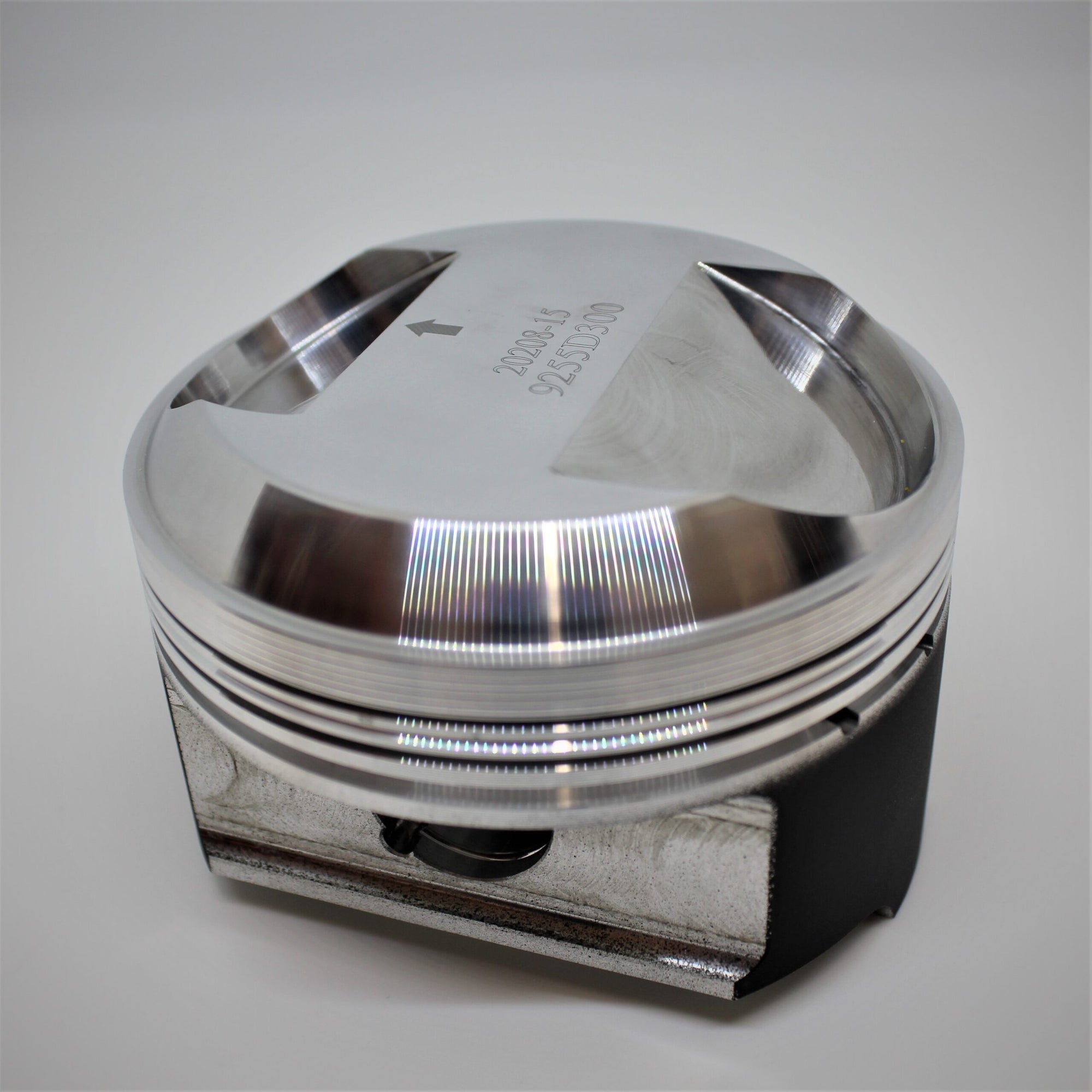

911 3.2 12v Forged Piston Kit.
Manufacturer kit reference: K9255
| Engine Code | 21 , 26 , 930.20 |
|---|---|
| YOM From | 1983 |
| YOM To | 1990 |
| Bore Size | 95mm – K9255DA , 98mm – K9255D300 |
| Stroke | 74.4mm |
| Compression Height | 32.8mm |
| OEM Comp Ratio | 10.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 127mm |
| Clip Part Number | C23x1.6 |
| Pin Size | 23mm |
| Pin Part Number | WP024 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9255D300 | 97.95mm | 11.1:1 | |
| K9255DA | 94.95mm | 10.5:1 | 3163cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
