£1,401.83

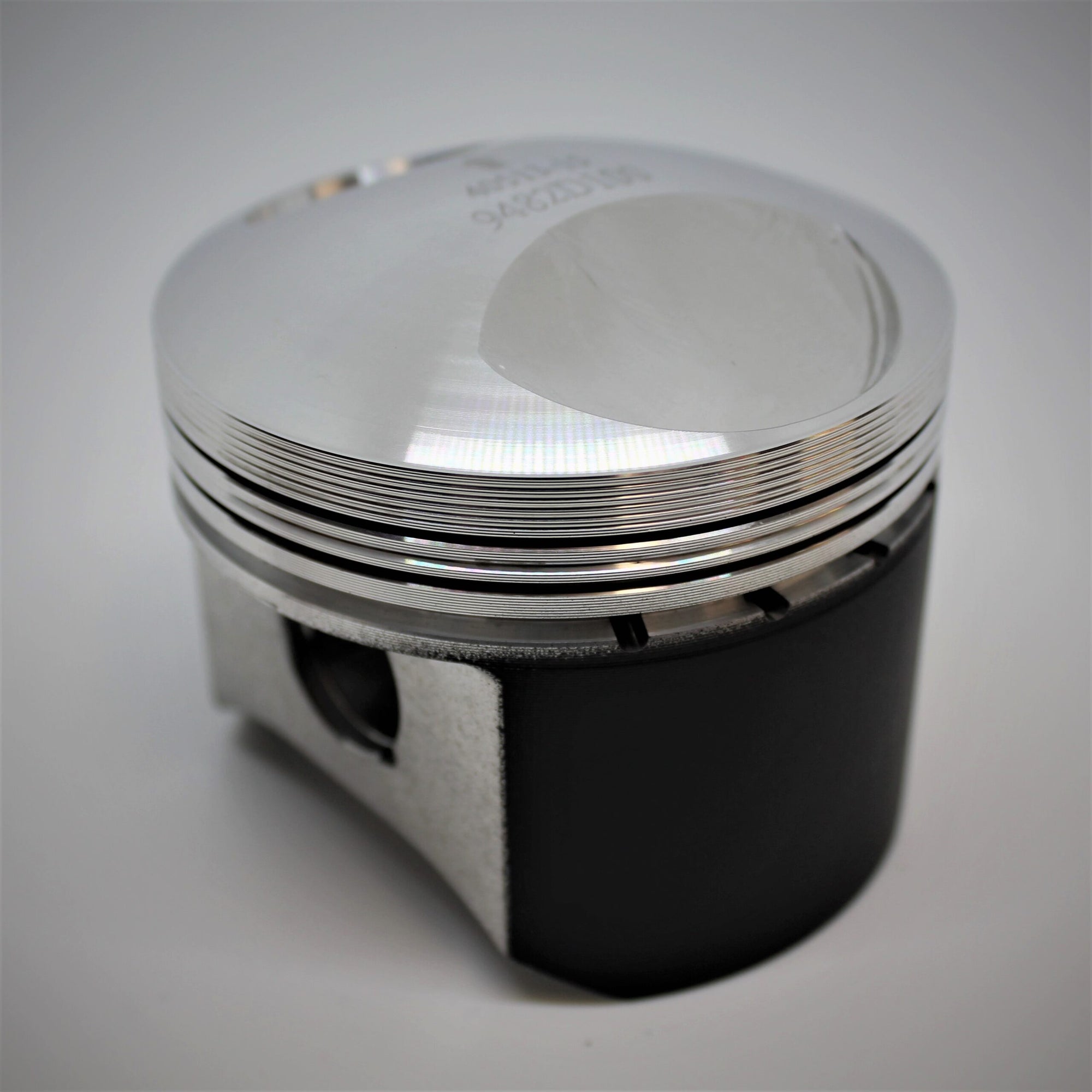

911 E, S & T 2.4 High Comp Forged Piston Kit.
Manufacturer kit reference: K9482
| Engine Code | x |
|---|---|
| YOM From | 1972 |
| YOM To | 1973 |
| Bore Size | 84.5mm – K9482D050 , 84mm – K9482DA , 85mm – K9482D100 |
| Stroke | 70.4mm |
| Compression Height | 34mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 127.75mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9482DA | 83.94mm | 10:1 | 2340cc |
| K9482D050 | 84.44mm | 10.11:1 | 2368cc |
| K9482D100 | 84.94mm | 10.22:1 | 2396cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
