£849.43

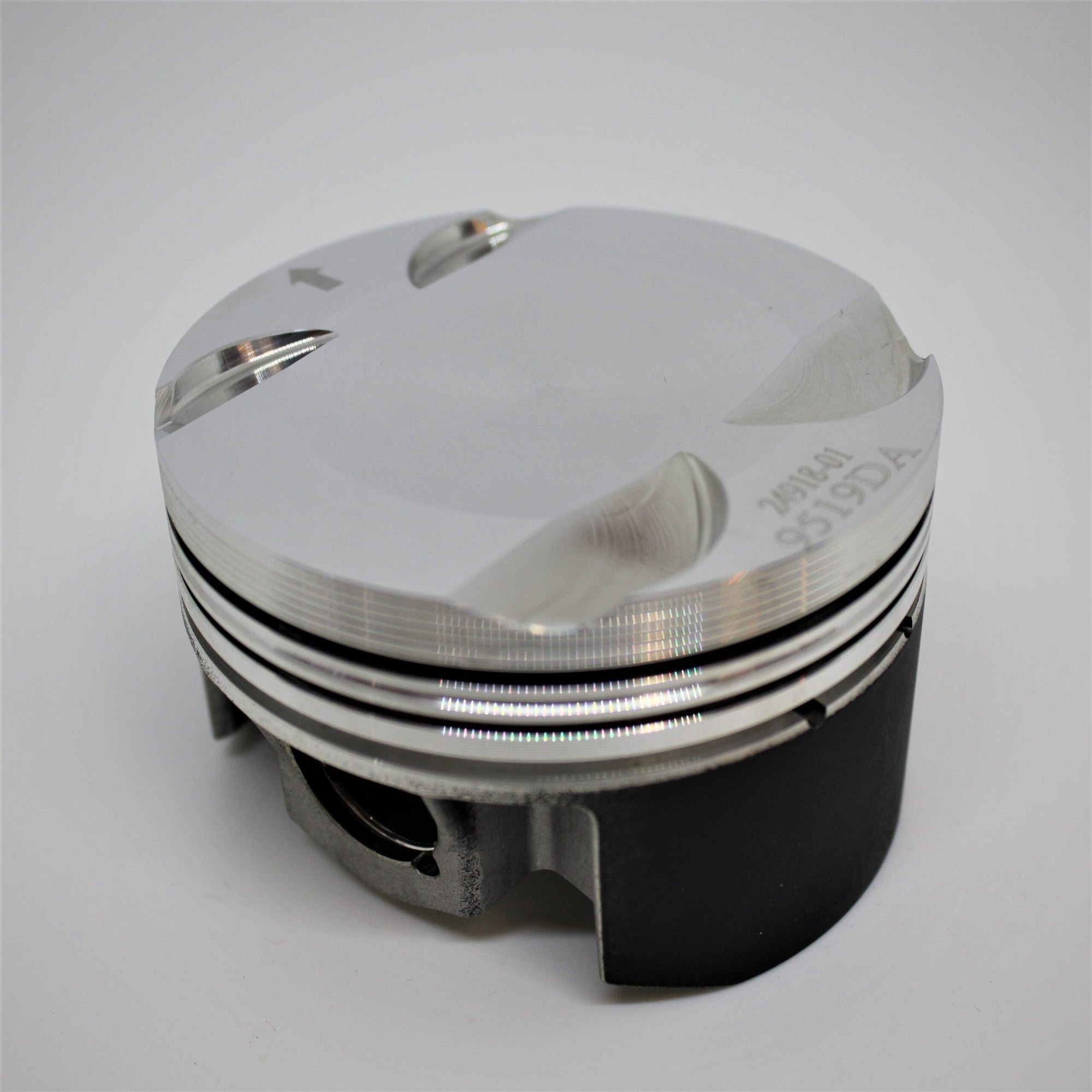

A3 & A4 / Golf Mk7 1.4 16v Turbo FSI Forged Piston Kit.
Manufacturer kit reference: K9519
| Engine Code | CMBH , CPTA , CZCA , CZEA; CTHG |
|---|---|
| YOM From | 2012 |
| YOM To | current |
| Bore Size | 74.5mm – K9519DA , 75mm – K9519D050 |
| Stroke | 80mm |
| Compression Height | 31mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW19 |
| Pin Size | 19mm |
| Pin Part Number | WP050DLC |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9519DA | 74.43mm | 10.5:1 | 1394cc |
| K9519D050 | 74.93mm | 10.5:1 | 1413cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
