£1,098.78

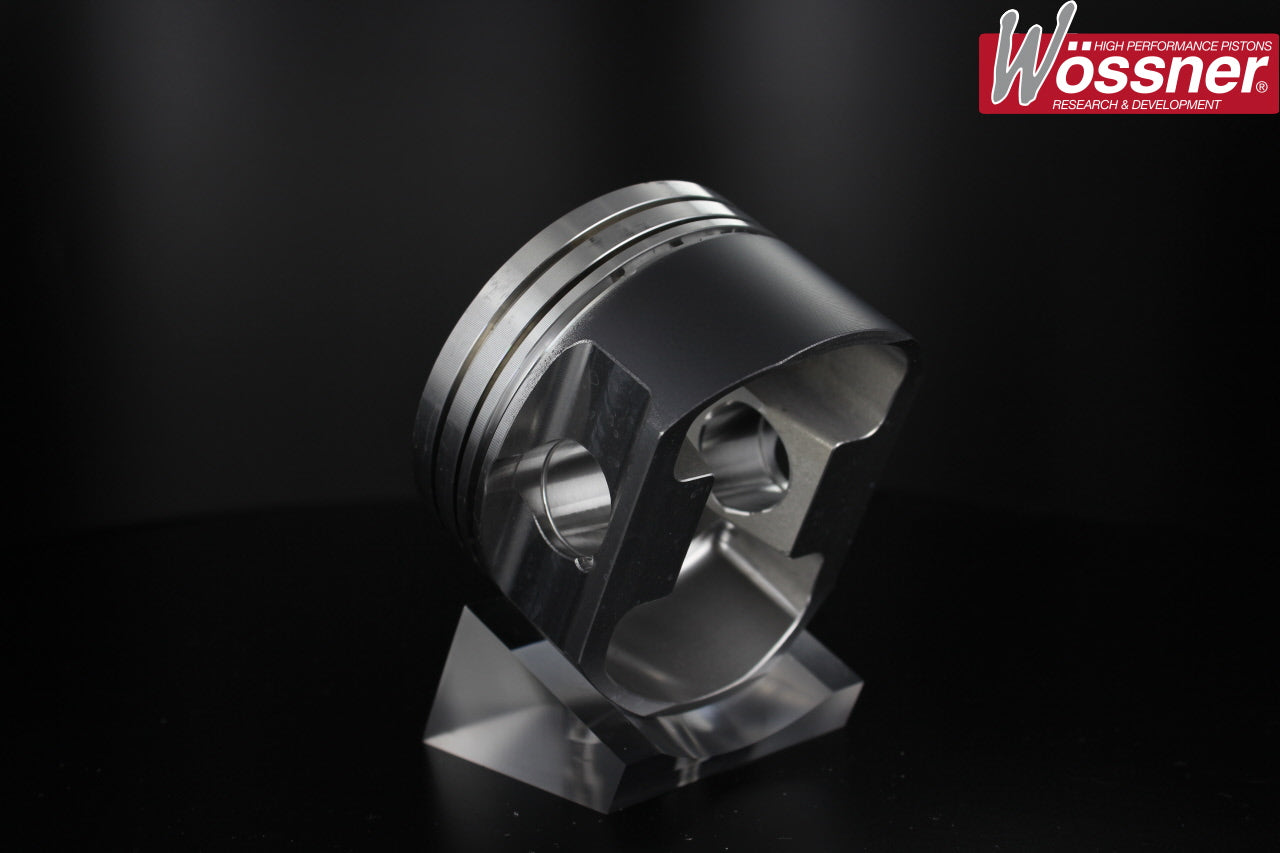

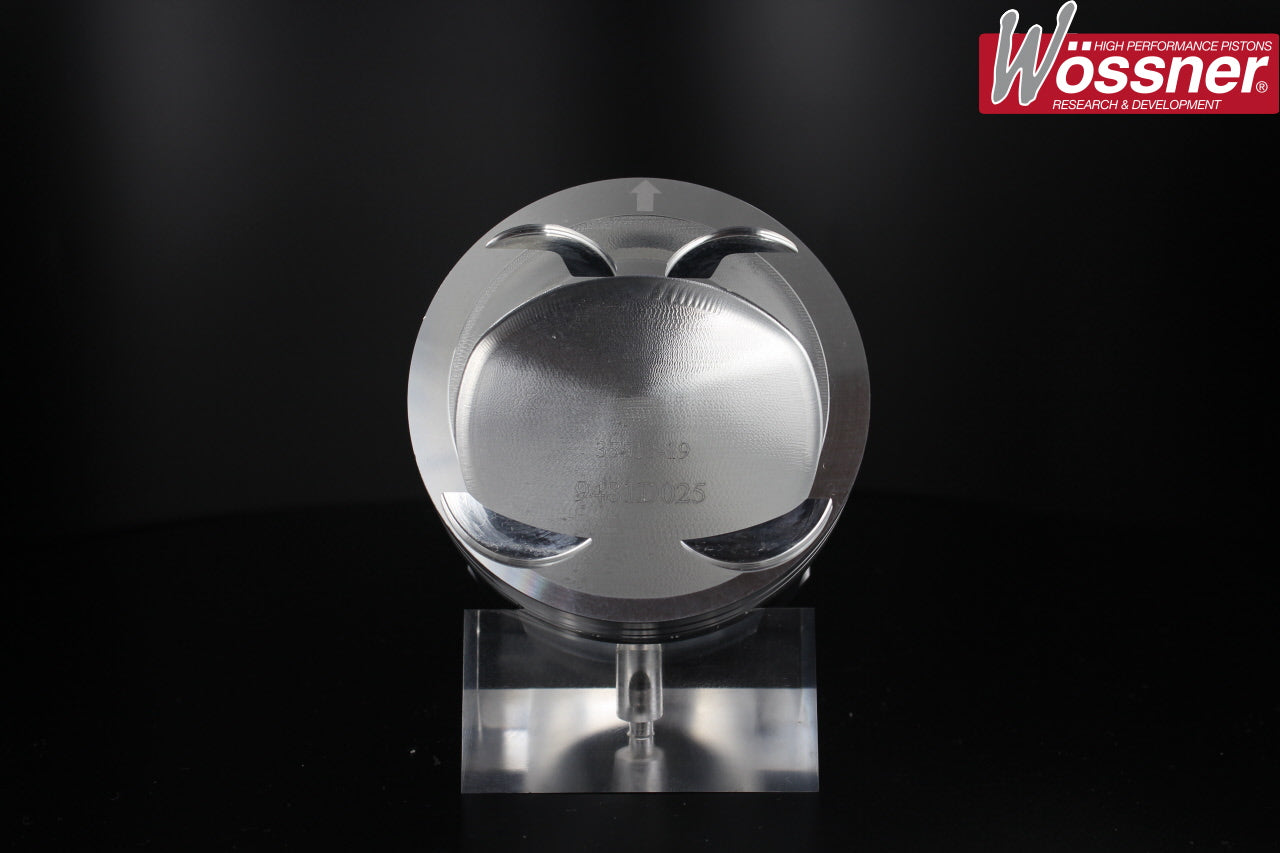

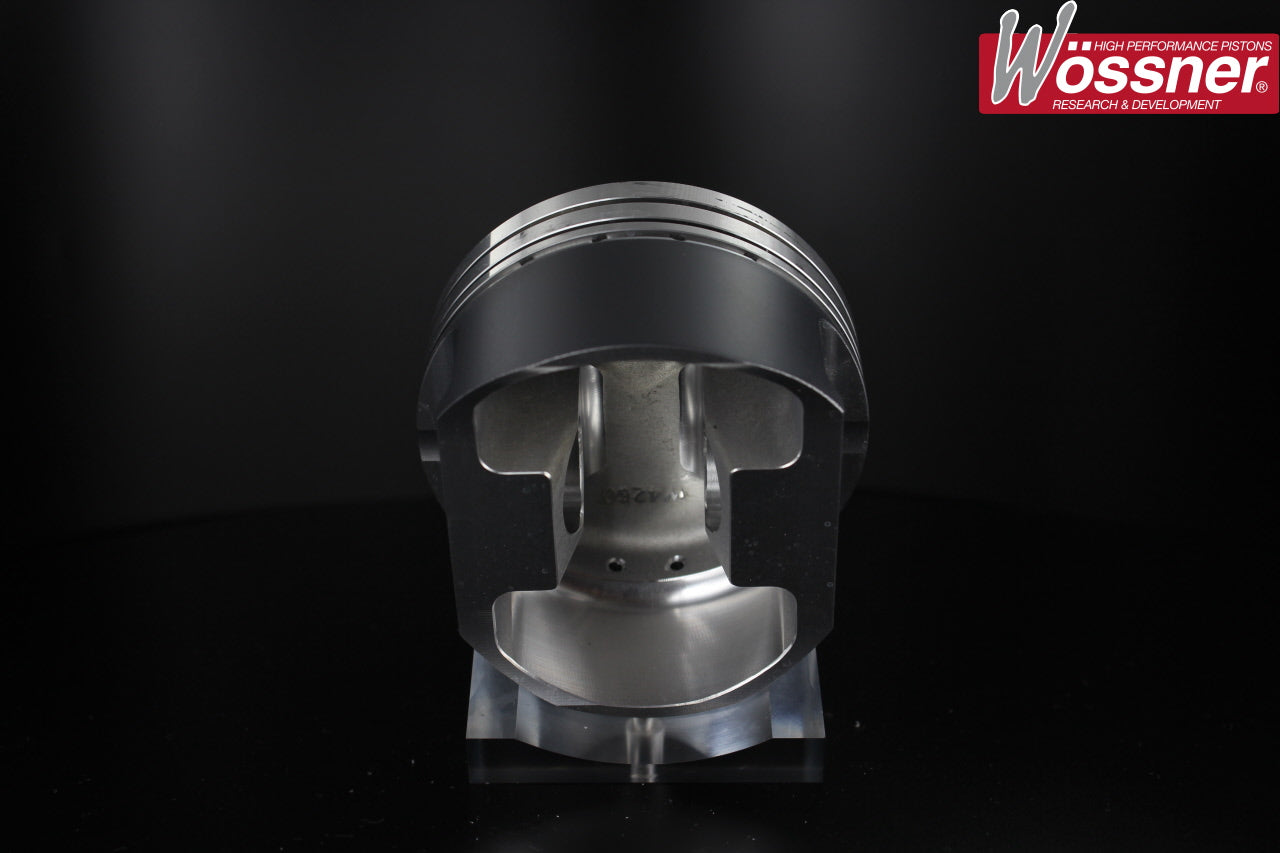

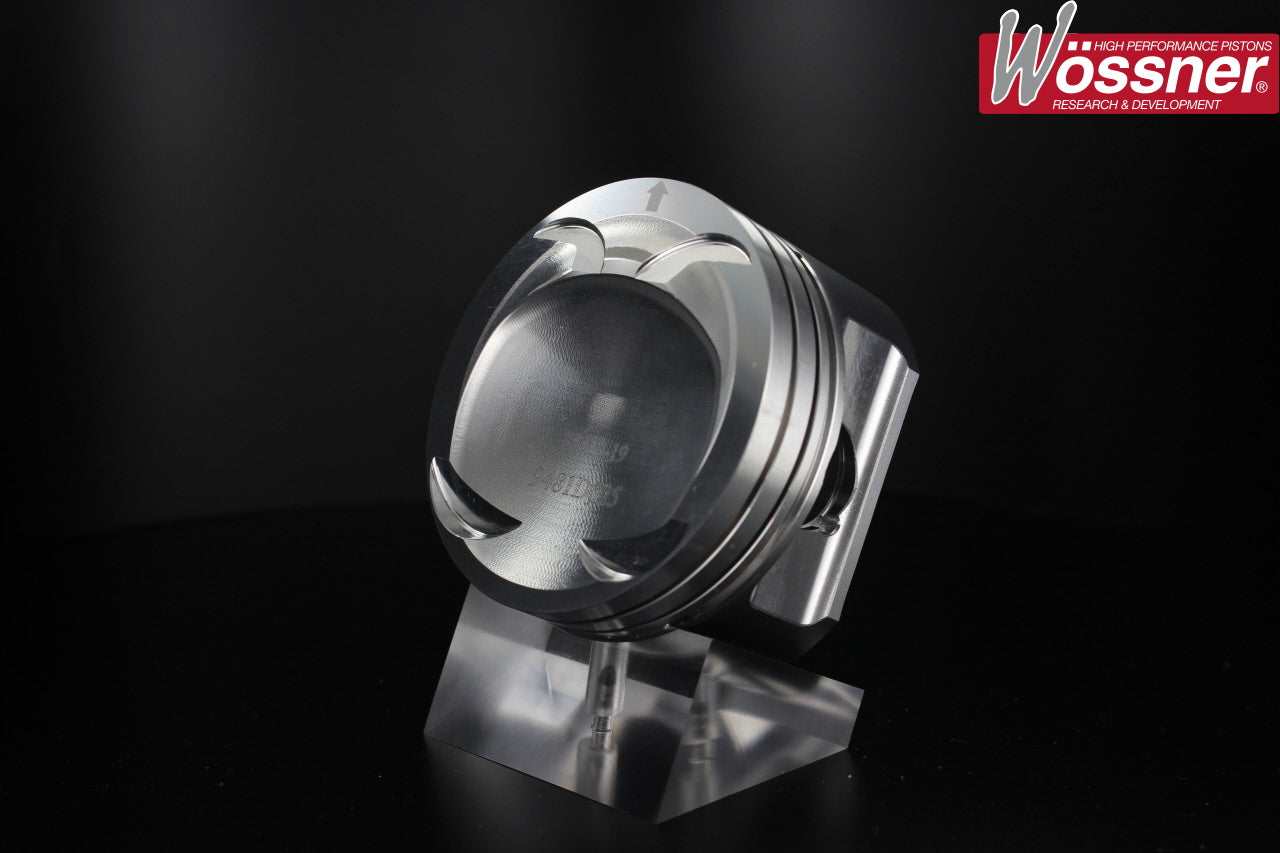

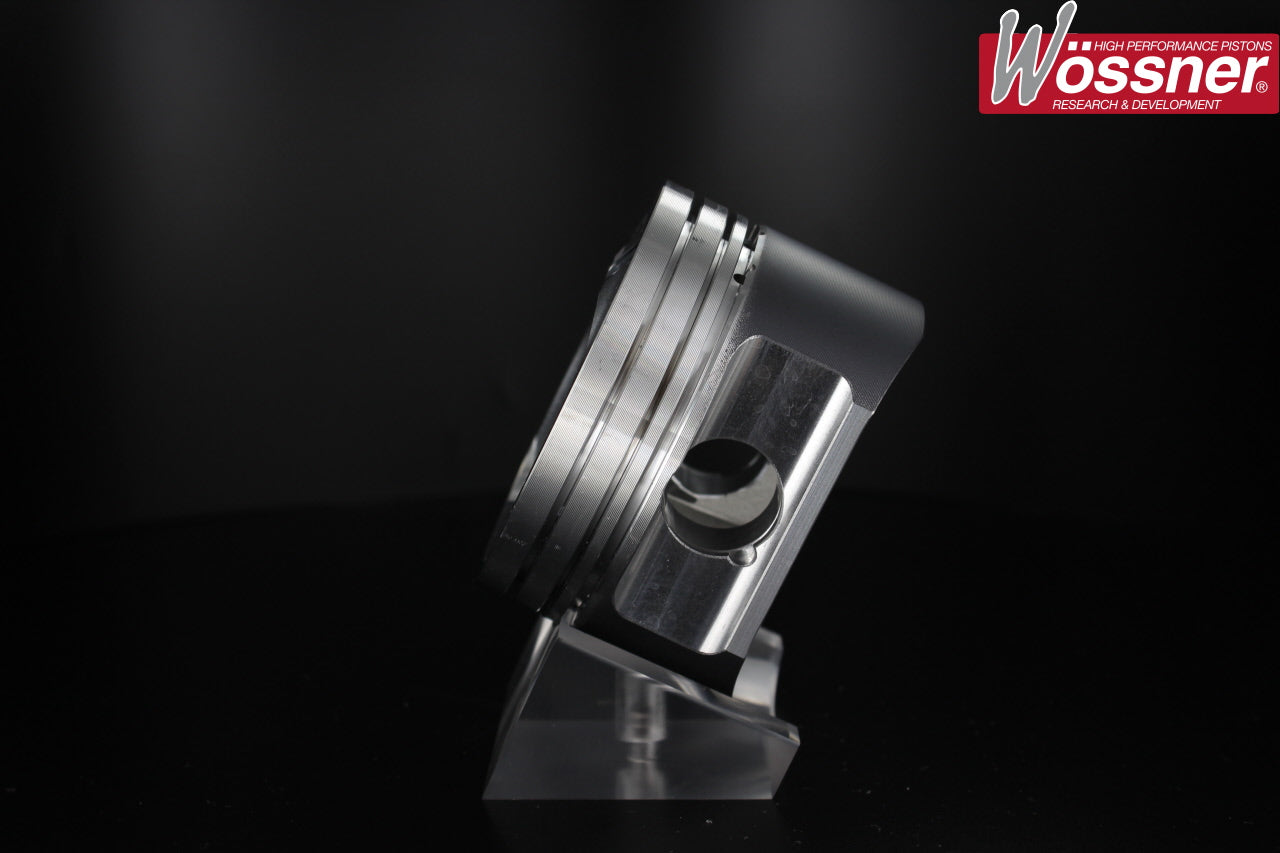

A3 / Golf GT & Scriocco 1.4 Twin Charged TFSI Forged Piston Kit.
Manufacturer kit reference: K9481
| Engine Code | CAX / CAV / CVA |
|---|---|
| YOM From | 2007 |
| YOM To | 2013 |
| Bore Size | 76.5mm – K9481DA , 76.75mm – K9481D025 , 77mm – K9481D050 |
| Stroke | 75.6mm |
| Compression Height | 29mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW19 |
| Pin Size | 19mm |
| Pin Part Number | WP037DLC |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0292 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9481DA | 76.43mm | 10.5:1 | 1389cc |
| K9481D025 | 76.68mm | ||
| K9481D050 | 76.93mm | 10.5:1 | 1407cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
