£1,210.79

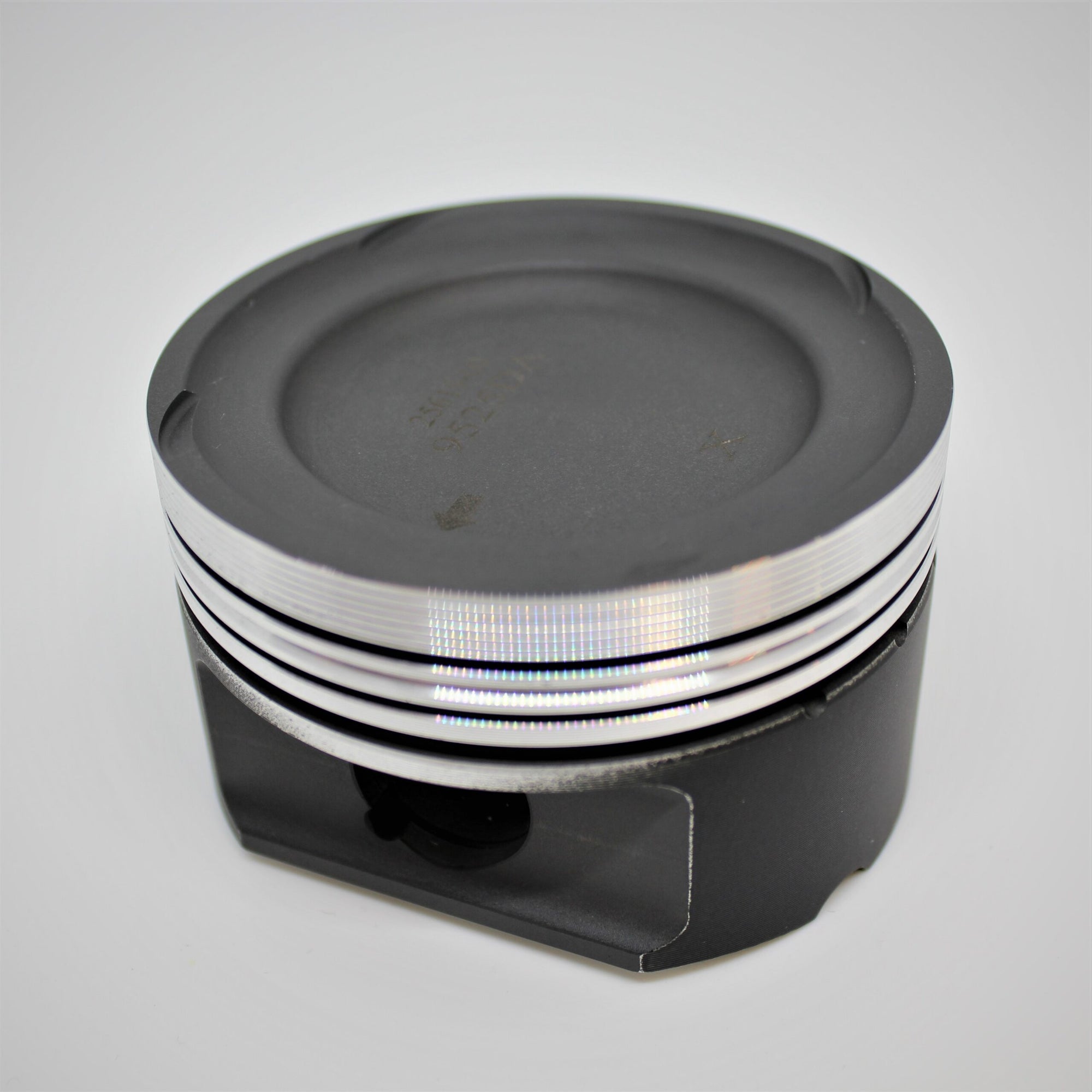

A35 AMG 2.0L 16v Turbo Forged Piston Kit With Hard Anodised Crown.
Manufacturer kit reference: K9525
| Engine Code | M260 DE20 LA |
|---|---|
| YOM From | 2018 |
| YOM To | current |
| Bore Size | 83.5mm – K9525D050 , 83mm – K9525DA |
| Stroke | 92mm |
| Compression Height | 33.6mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 138.7mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP065 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0356 |
| Con Rod Length C/C | 138.7mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9525DA | 82.93mm | 10.5:1 | 1991cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
