Wossner A4 & A5 2.0 16v Turbo TFSI Forged Piston Kit With Hard Anodised Crown & H-Beam Steel Con Rod Package (K9539/G0296)

Wossner Pistons

Wossner A4 & A5 2.0 16v Turbo TFSI Forged Piston Kit With Hard Anodised Crown & H-Beam Steel Con Rod Package (K9539/G0296)

£1,551.46

A4 & A5 2.0 16v Turbo TFSI Forged Piston Kit With Hard Anodised Crown & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9539/G0296

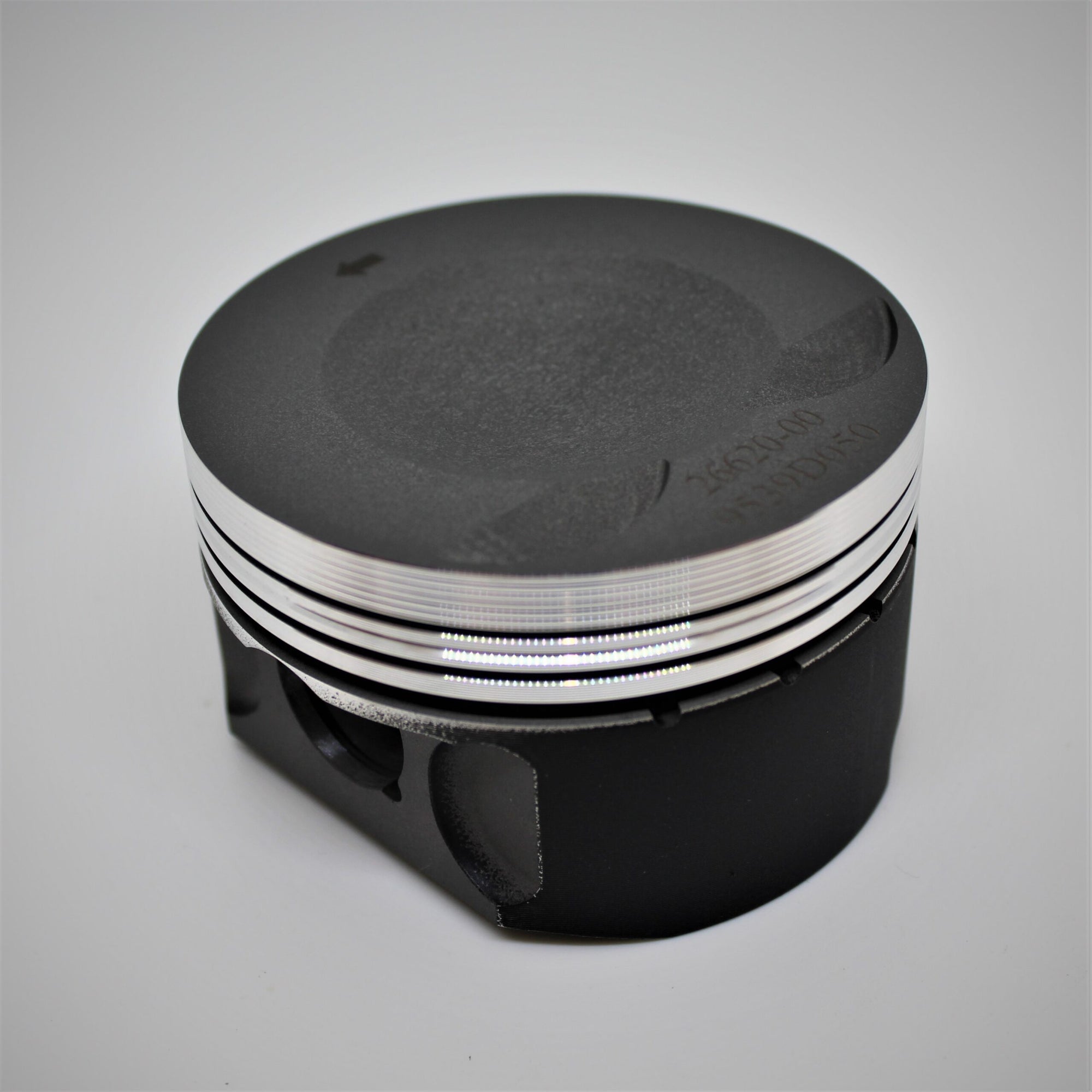

A4 & A5 2.0 16v Turbo TFSI Forged Piston Kit With Hard Anodised Crown

Engine Code	CCTA / CCZA / CCZB / CBF / CAEB >2011
YOM From	2008
YOM To	2015
Bore Size	82.5mm – K9539DA , 83mm – K9539D050
Stroke	92.8mm
Compression Height	29.6mm
OEM Comp Ratio	9.6:1
Number of Rings	3
OEM Rod Length	144mm
Clip Part Number	CW21
Pin Size	21mm
Pin Part Number	WP092DLC
Cylinders	4
Valves Per Cylinder	4
Suits Wossner Con Rod	G0293
Con Rod Length C/C	144mm

VW 2.0 TFSI OEM & Narrow big end I-Beam Connecting rods

Engine Code	BYD
Con Rod Length C/C	144mm
Con Rod Big End Dia	50.6mm
Con Rod Big End Width	21.9mm
Con Rod Small End Dia	21mm
Con Rod Small End Width	18mm T
Con Rod Bolt	3/8"

Kit contents

A4 & A5 2.0 16v Turbo TFSI Forged Piston Kit With Hard Anodised Crown
VW 2.0 TFSI OEM & Narrow big end I-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 8
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9539DA	82.43mm	9.6:1	1983cc
K9539D050	82.93mm	9.7:1	2008cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
