£1,545.52

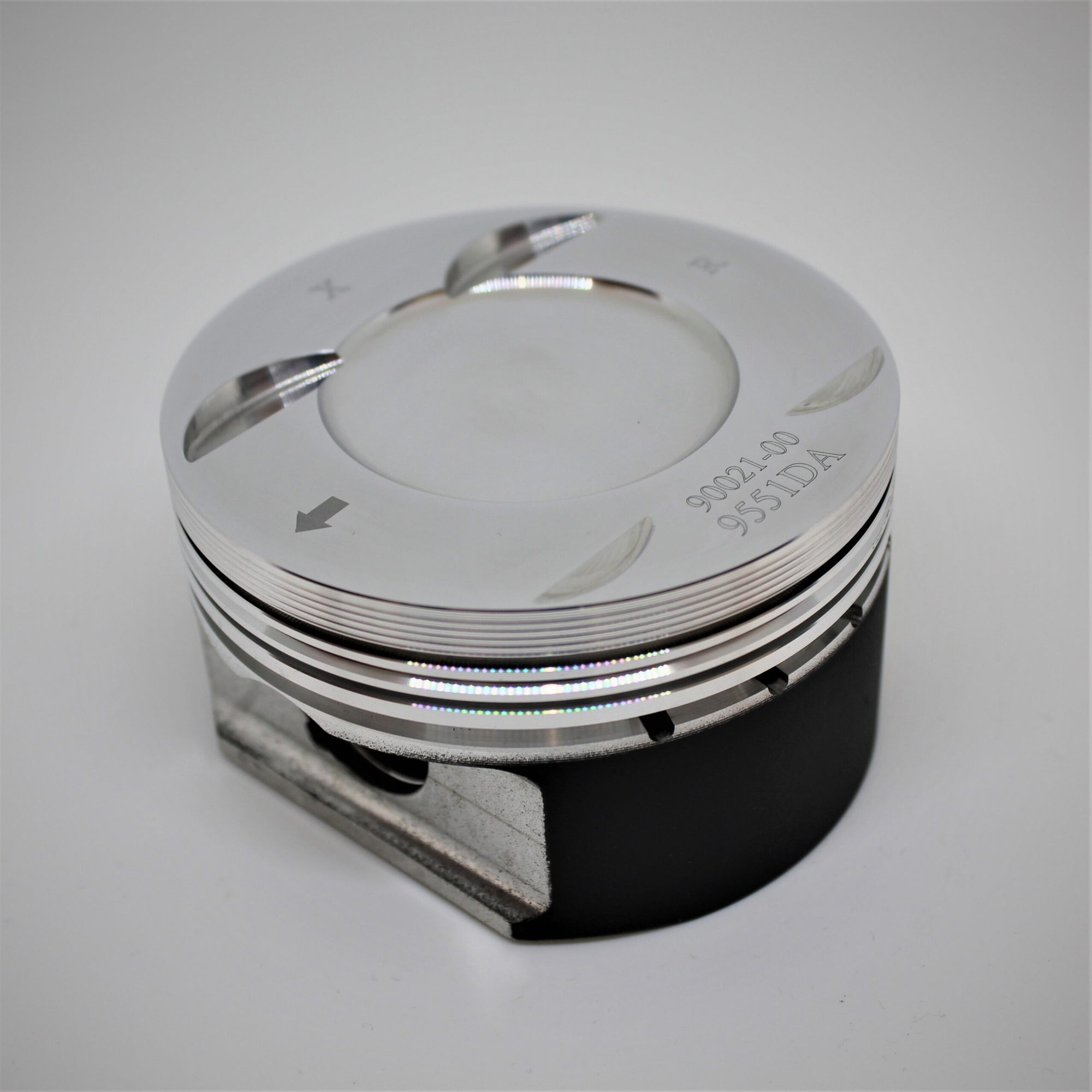

Audi RS4, RS5, S6, S7 & Porsche Panamera 4S 2.9 & 3.0 Turbo V6 Forged Piston Kit.
Manufacturer kit reference: K9551
| Engine Code | CWGD , DECA , EA839 |
|---|---|
| YOM From | 2009-2019 |
| Bore Size | 84.5mm |
| Stroke | 86mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 11.2:1 |
| Number of Rings | 3 |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9551DA | 84.44mm | 11.2:1 | 2893cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
