£849.43

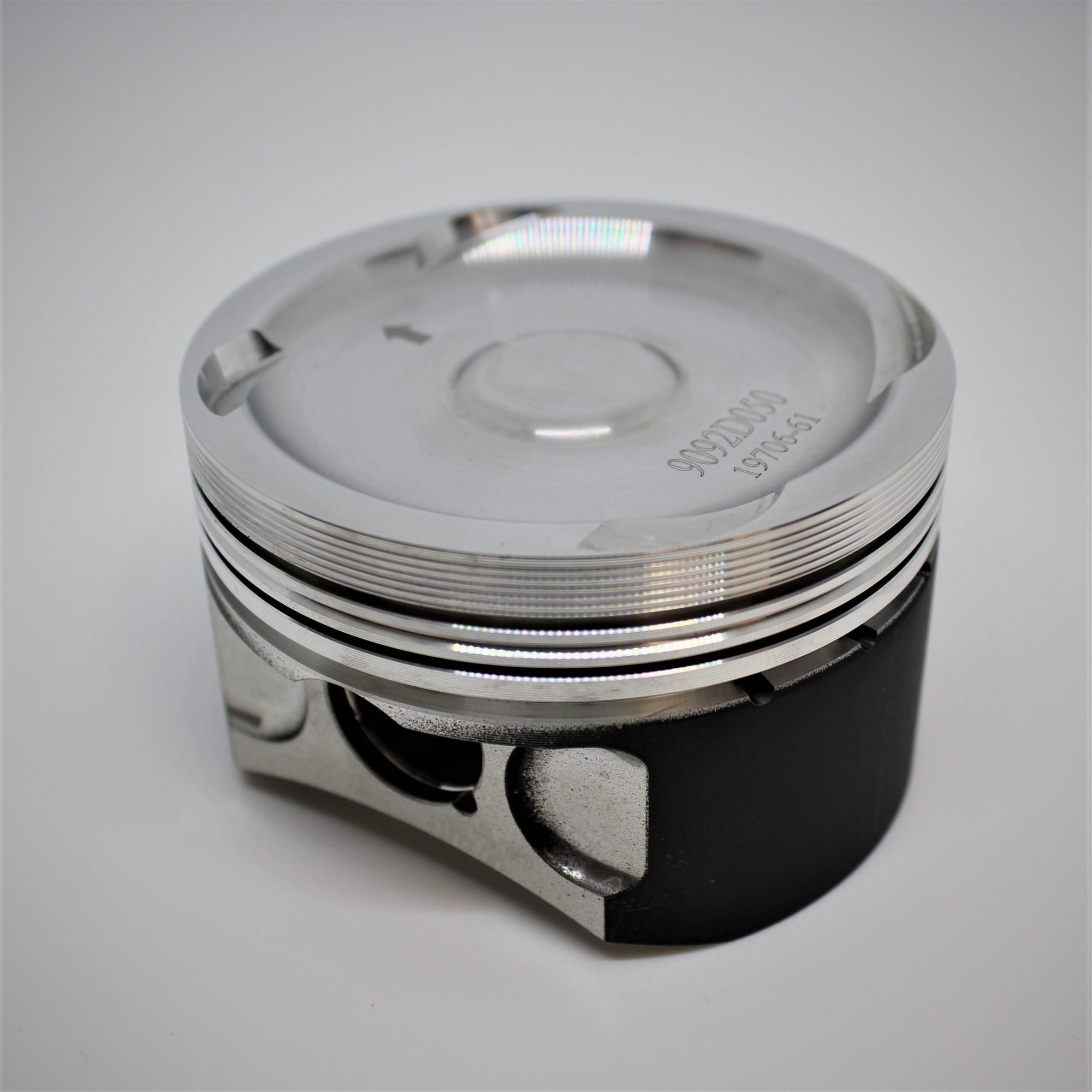

C20LET 2.0 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9092
| Engine Code | C20LET |
|---|---|
| YOM From | 1991 |
| YOM To | 1997 |
| Bore Size | 86.5mm , 86mm , 87.5mm , 87mm |
| Stroke | 86mm |
| Compression Height | 30.5mm |
| OEM Comp Ratio | 8.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 143.1mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0033 |
| Con Rod Length C/C | 143.1mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9092D050 | 86.42mm | 8.59:1 | 2021cc |
| K9092D100 | 86.92mm | 8.68:1 | 2044cc |
| K9092D150 | 87.42mm | 8.76:1 | 2068cc |
| K9092DA | 85.92mm | 8.5:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
