£849.43

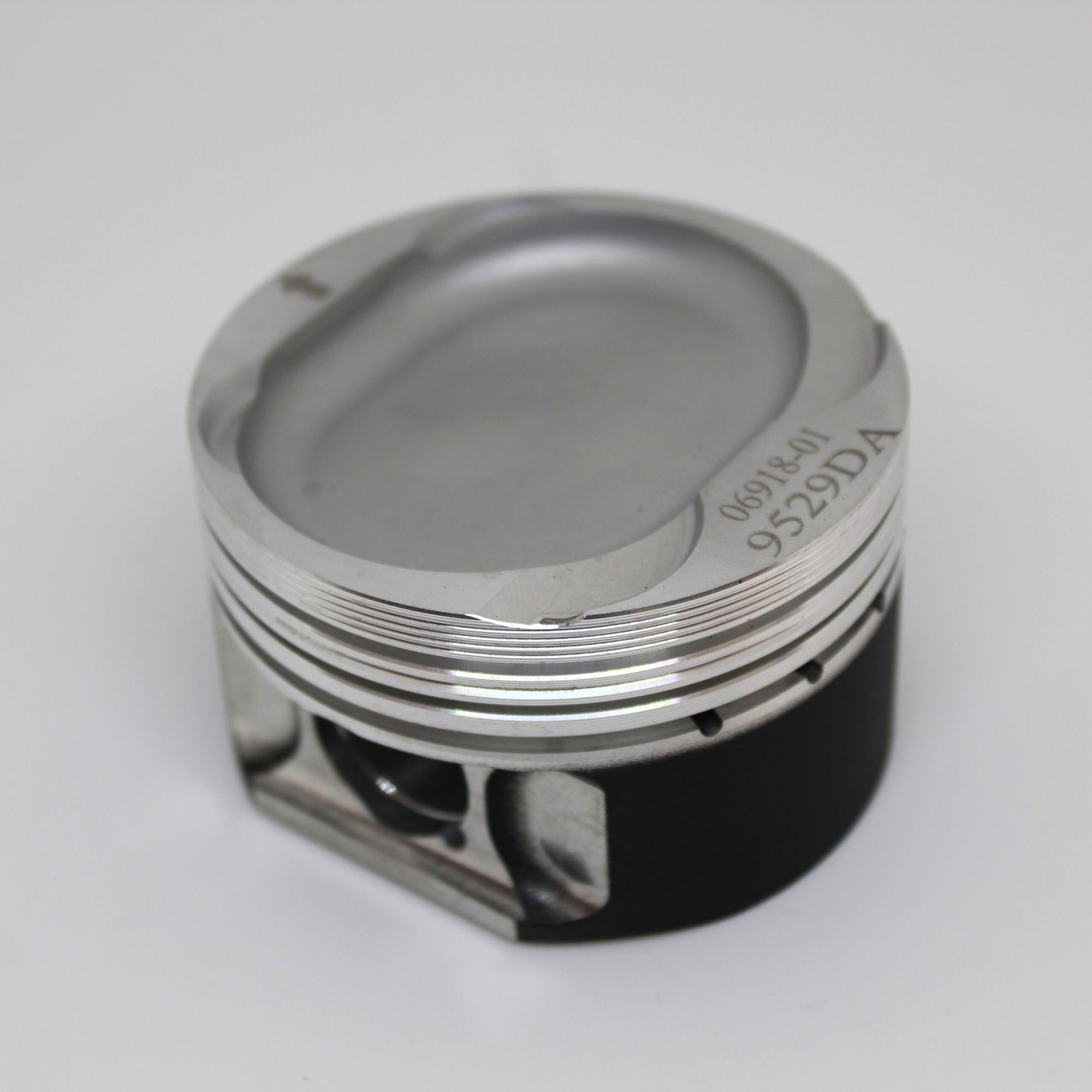

Civic 1.5 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9529
| Engine Code | L15 |
|---|---|
| YOM From | 2017 |
| Bore Size | 73.5mm – K9529D050 , 73mm – K9529DA |
| Stroke | 89.4mm |
| Compression Height | 28.6mm |
| OEM Comp Ratio | 10.4:1 |
| Number of Rings | 3 |
| OEM Rod Length | 139mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP135-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9529DA | 72.93mm | 9.5:1 | 1496cc |
| K9529D050 | 73.43mm | 9.5:1 | 1517cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
