£768.53

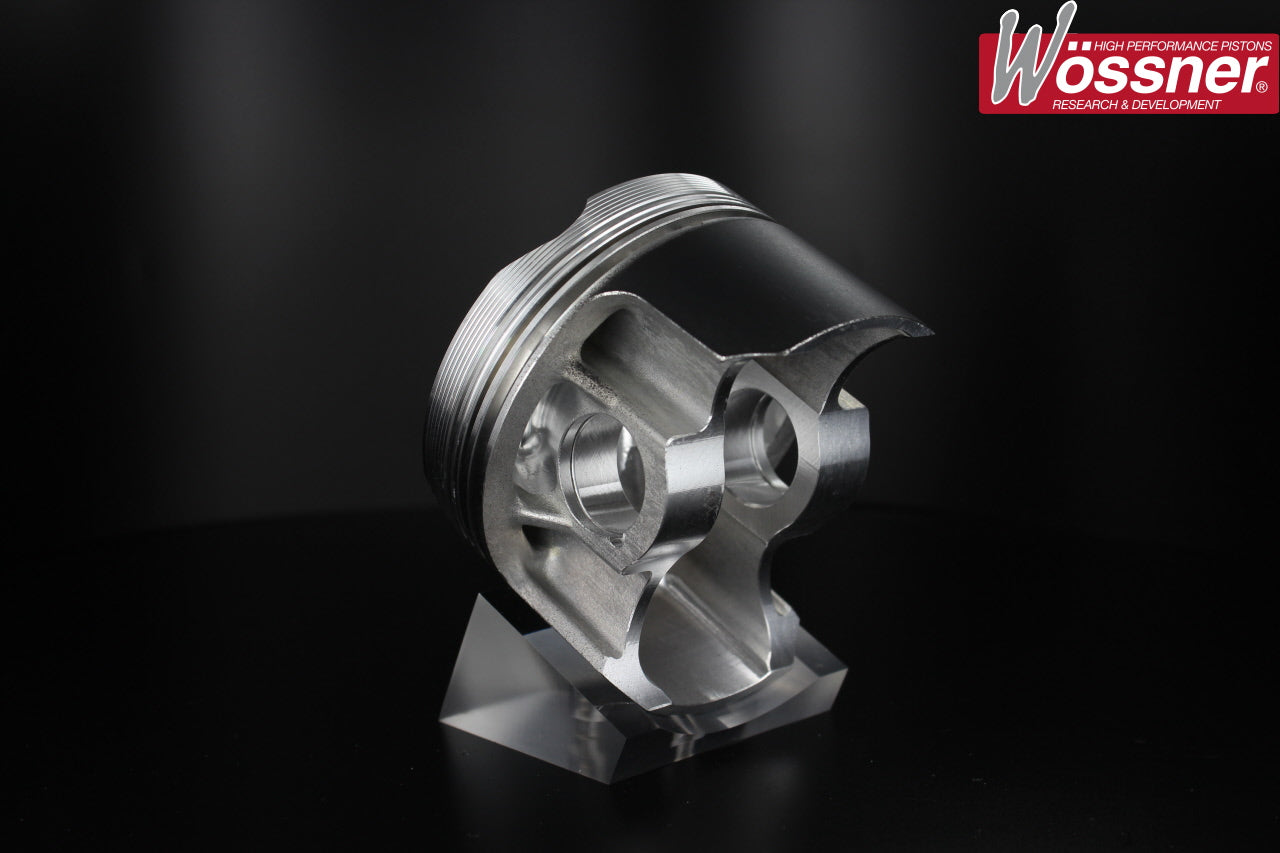

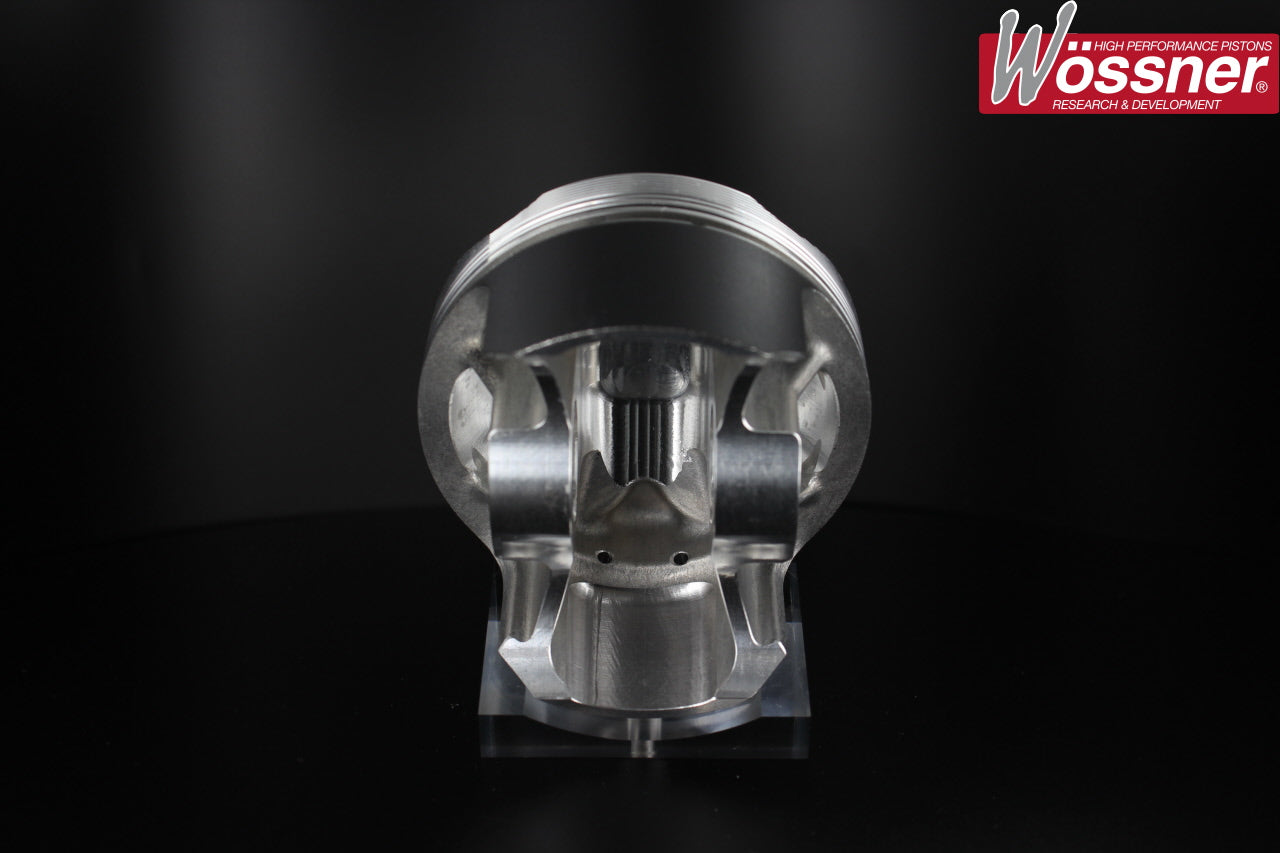

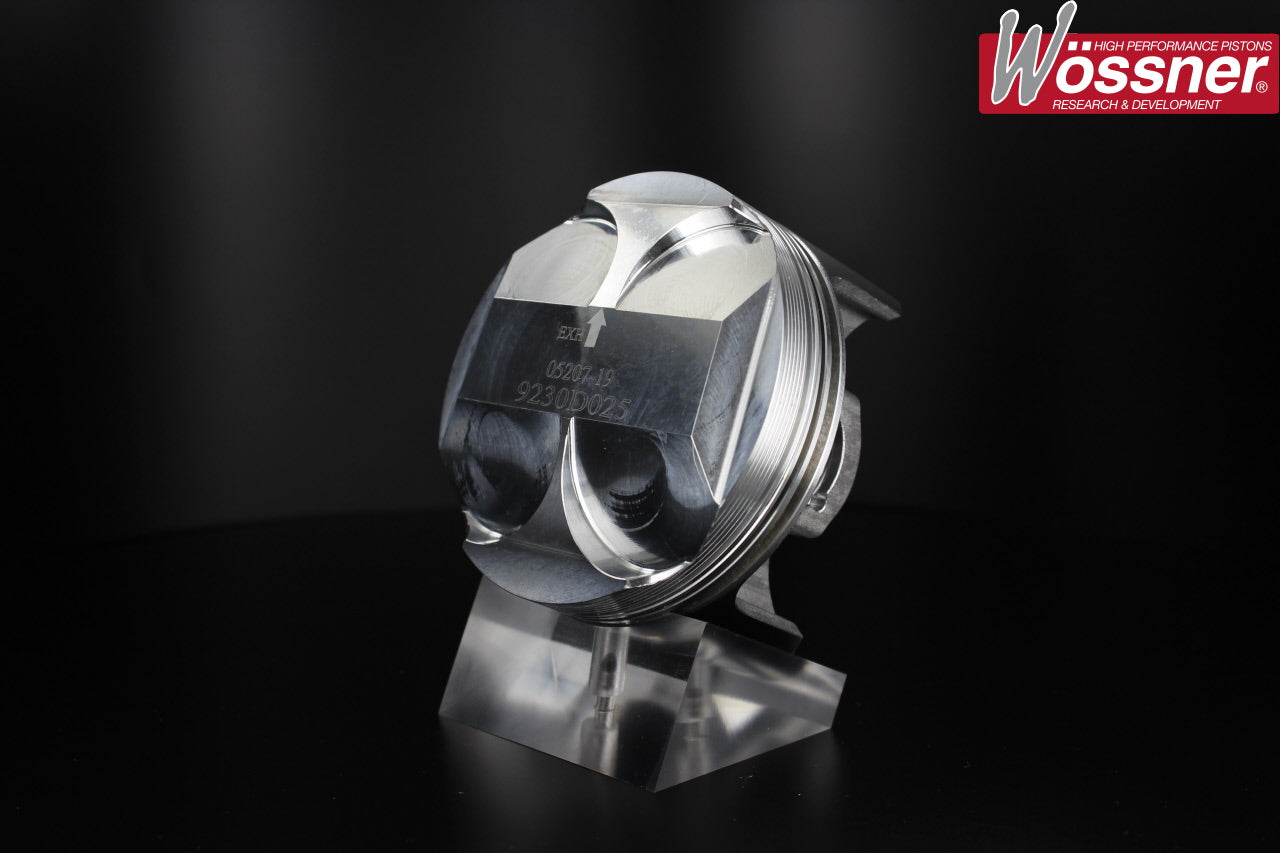

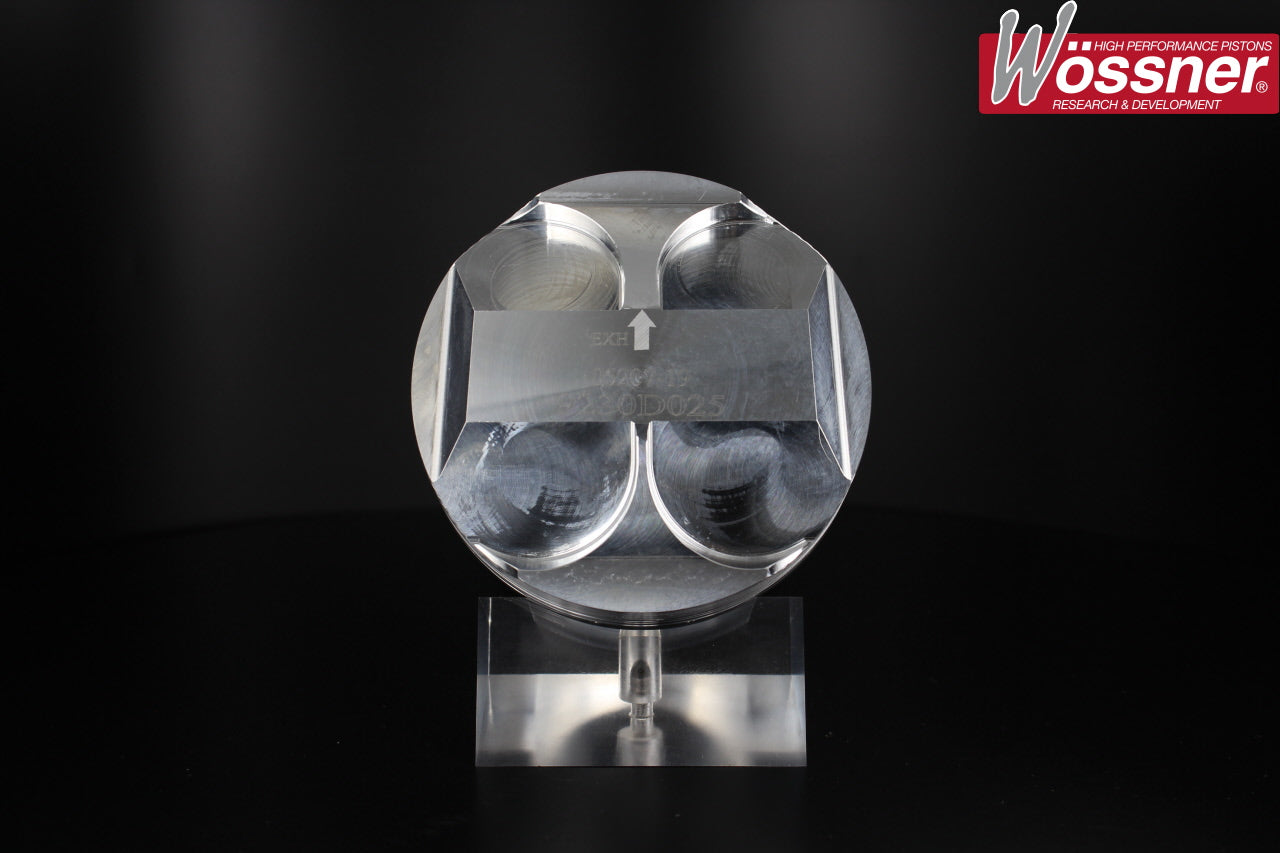

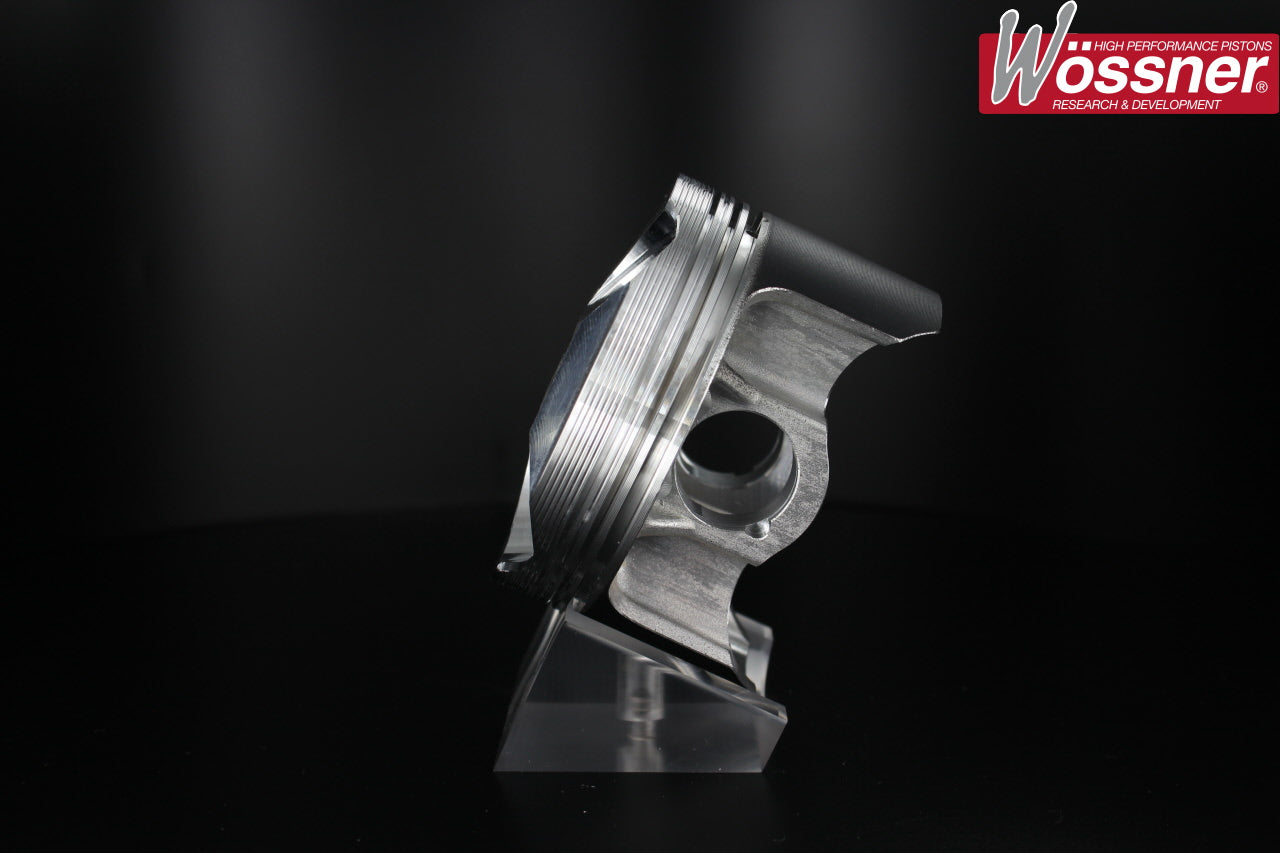

Clio RS 172/182 2.0 16v High Comp Forged Piston Kit (Use with Racing Rods).
Manufacturer kit reference: K9230
| Engine Code | F4R-730 |
|---|---|
| YOM From | 2000 |
| YOM To | 2006 |
| Bore Size | 82.72mm – K9230DC , 82.75mm – K9230DD , 82.7mm – K9230DA , 83mm – K9230D025 |
| Stroke | 93mm |
| Compression Height | 30.2mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP013-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0015 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9230 | 82.63mm | 13.3:1 | 1998cc |
| K9230DC | 82.65mm | 13.3:1 | 1999cc |
| K9230DD | 82.68mm | 13.35:1 | 1999cc |
| K9230D025 | 82.93mm | 13.4:1 | 1999cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
