£768.53

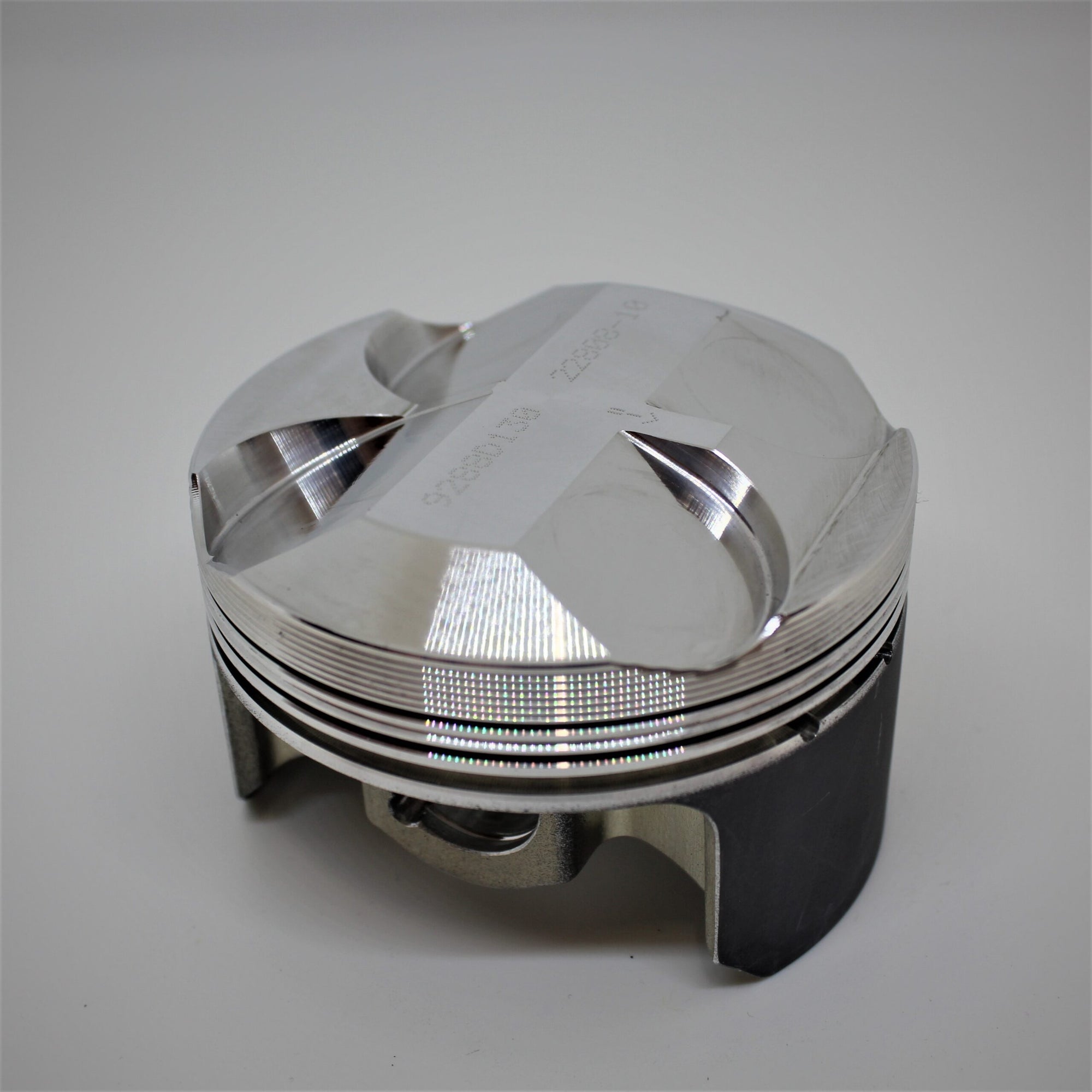

Clio RS 197 & 200 2.0 16v High Comp Forged Piston Kit (Use with Racing Rods).
Manufacturer kit reference: K9288
| Engine Code | F4R-830 |
|---|---|
| YOM From | 2006 |
| YOM To | current |
| Bore Size | 82.72mm – K9288DC , 82.7mm – K9288DA , 83mm – K9288D030 , 84mm – K9288D130 |
| Stroke | 93mm |
| Compression Height | 30.2mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP013 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0279 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9288D030 | 82.93mm | 12.78:1 | 2012cc |
| K9288D130 | 83.93mm | 13.1:1 | 2061cc |
| K9288DA | 82.63mm | 12.7:1 | 1997cc |
| K9288DC | 82.65mm | 12.7:1 | 1998cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
