£849.43

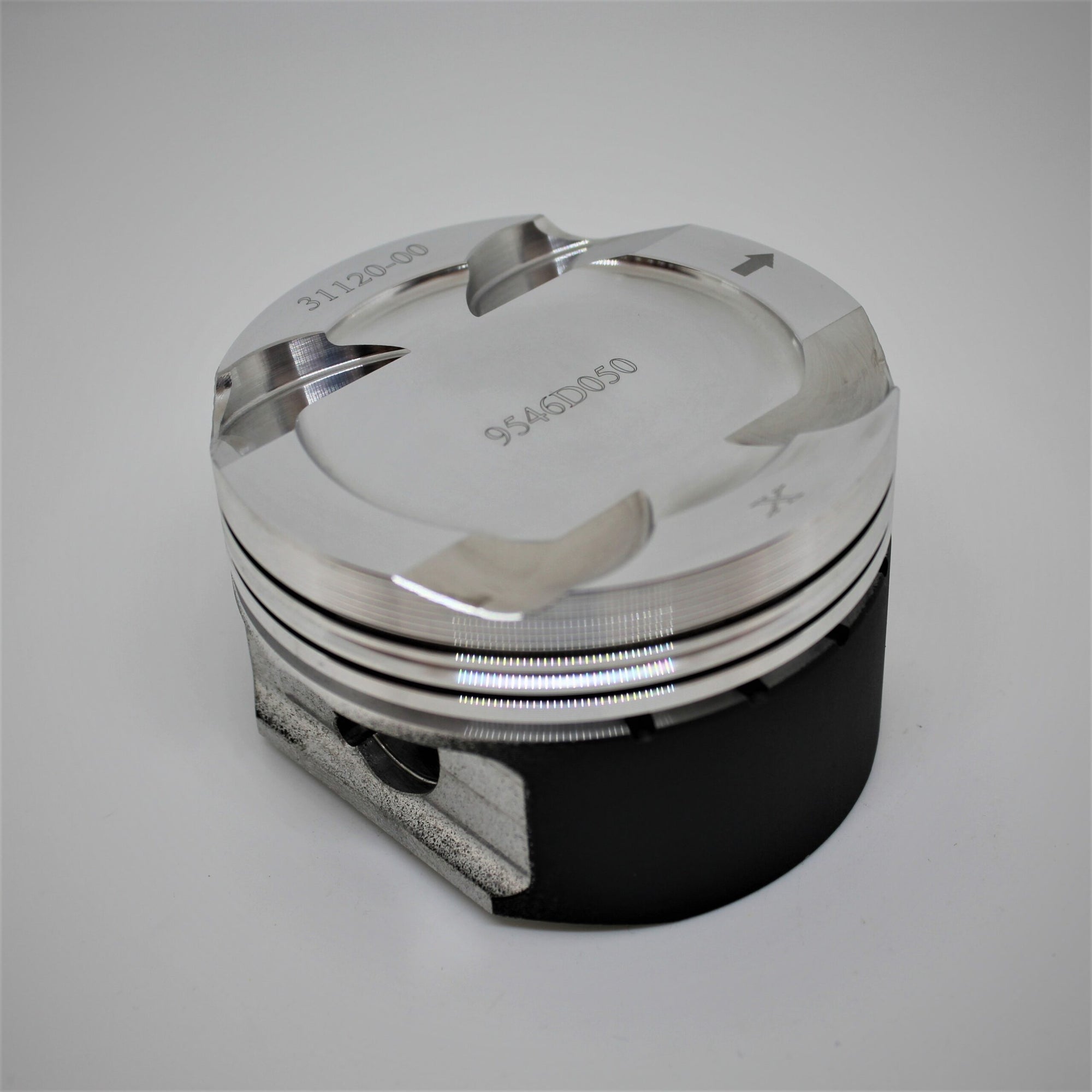

Cooper 2.0 16v Turbo B48 Forged Piston Kit (2019>).
Manufacturer kit reference: K9546-4
| Engine Code | B48 |
|---|---|
| YOM From | 2019 |
| Bore Size | 82.5mm – K9546D050-4 , 82mm – K9546DA-4 |
| Stroke | 94.6mm |
| Compression Height | 33.2mm |
| OEM Comp Ratio | 11:01 |
| Number of Rings | 3 |
| OEM Rod Length | 148.2mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9546DA-4 | 81.93mm | 11.0:1 | 1998cc |
| K9546D050-4 | 82.43mm | 11.0:1 | 2022cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
