£1,337.74

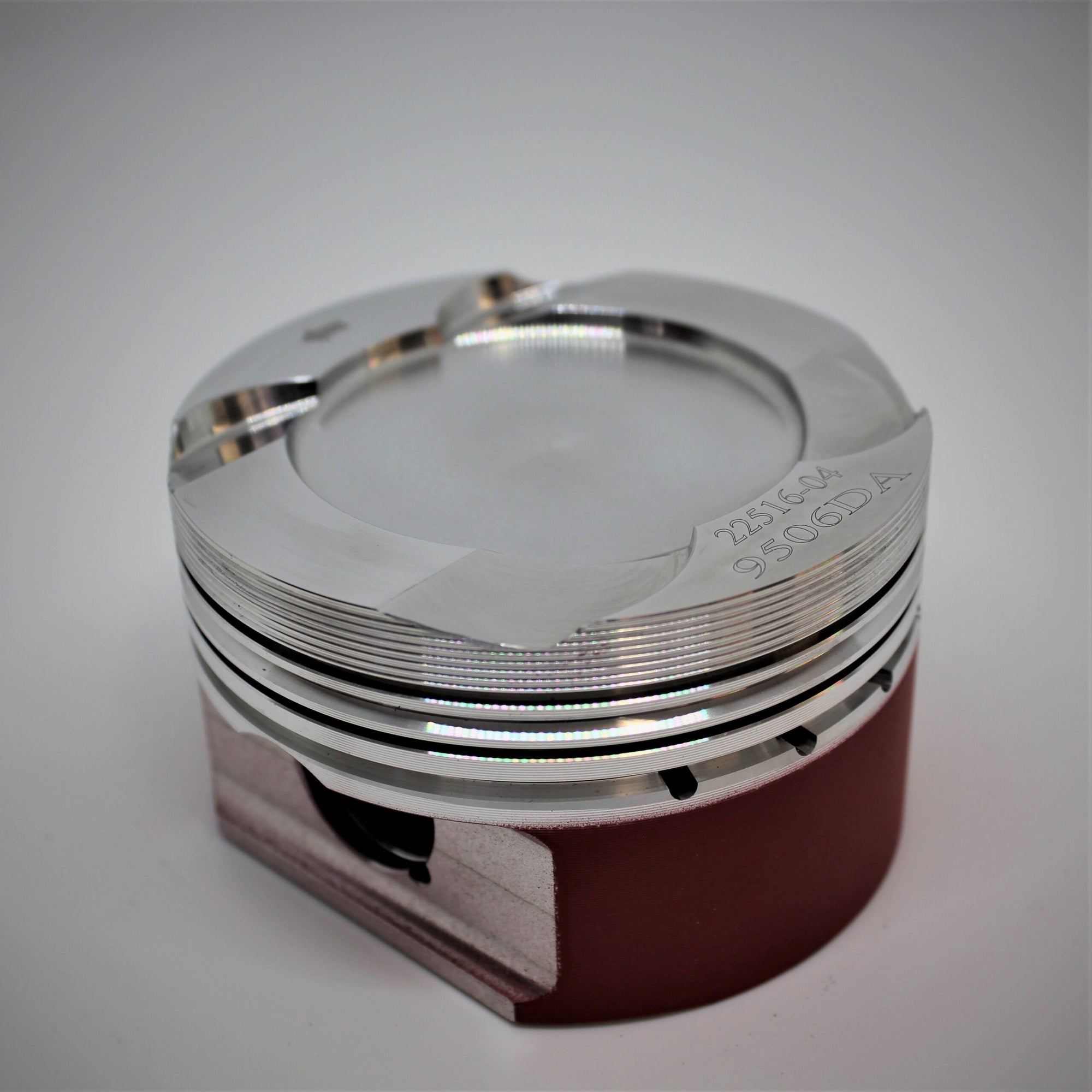

Cooper 2.0 16v Turbo N20 Forged Piston & Steel Con Rod Package.
Manufacturer kit reference: K9506/G0365-4
| Engine Code | N20B20 |
|---|---|
| YOM From | 2011 |
| YOM To | 2017 |
| Bore Size | 84.5mm – K9506D050 , 84mm – K9506DA |
| Stroke | 89.6mm |
| Compression Height | 32.5mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144.35mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9506D050 | 84.43mm | 10.0:1 | 2009cc |
| K9506DA | 83.93mm | 10.0:1 | 1996cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
