£1,098.78

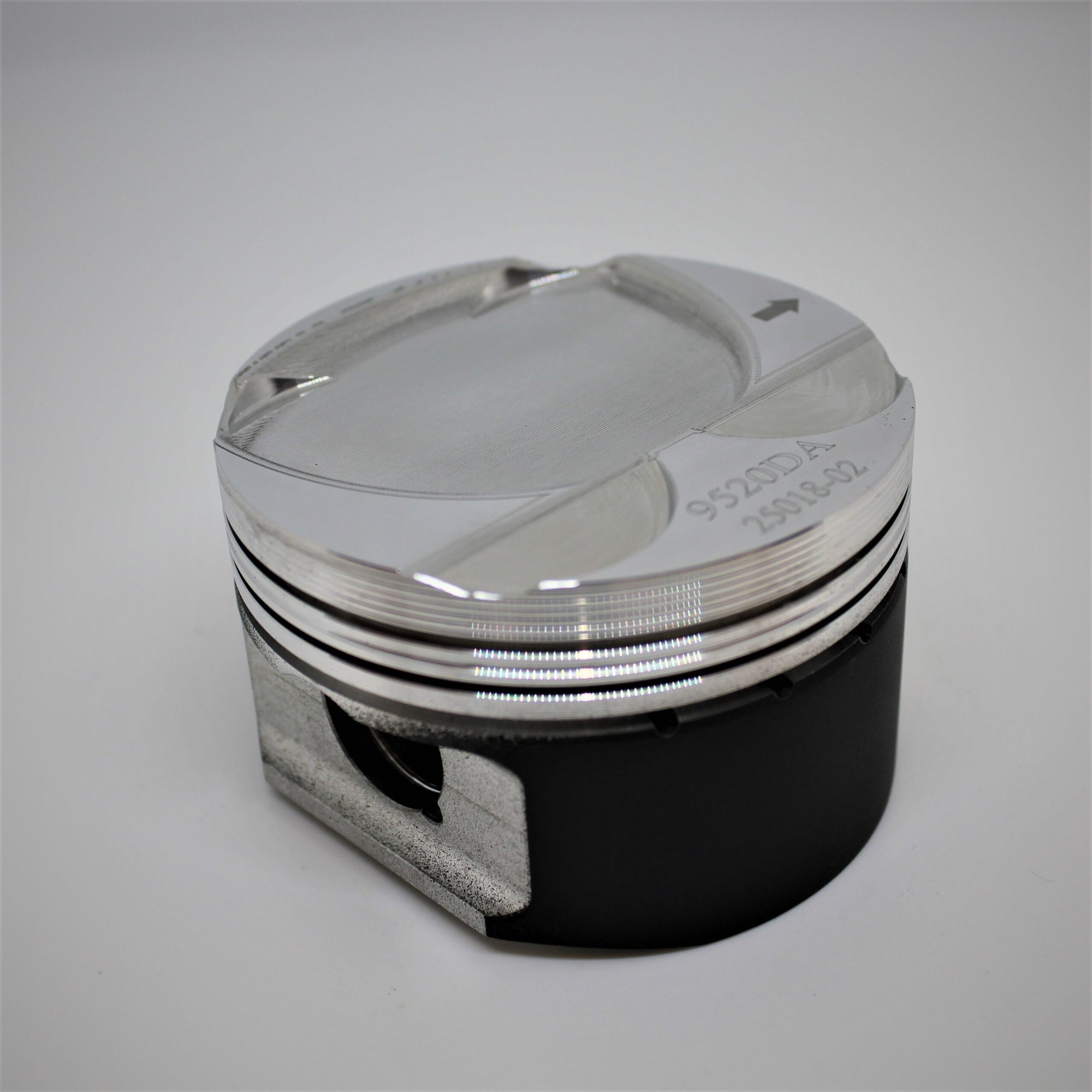

Cooper N16 1.6 16v Forged Piston kit.
Manufacturer kit reference: K9520
| Engine Code | N16 |
|---|---|
| YOM From | 2015 |
| Bore Size | 77.5mm – K9520D050 , 77mm – K9520DA |
| Stroke | 85.8mm |
| Compression Height | 28.5mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 138.5mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP065-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0212 |
| Con Rod Length C/C | 132.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9520DA | 76.93mm | 10:1 | 1598cc |
| K9520D050 | 77.43mm | 10:1 | 1618cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
