£2,121.52

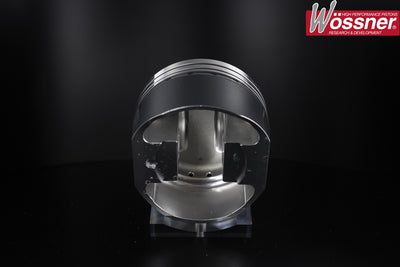

Corrado & Golf VR6 2.8 & 2.9 Turbo Comp Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9093/G0103
| Engine Code | AAA , ABV , AES , AMY |
|---|---|
| YOM From | 1991 |
| YOM To | 1997 |
| Bore Size | 81.5mm , 81mm , 82.5mm , 82mm , 83.5mm , 83mm |
| Stroke | 90.3mm |
| Compression Height | 30.3mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 164mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP061 |
| Cylinders | 6 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0103 |
| Con Rod Length C/C | 164mm |
| Engine Code | AAA , ABV , AES , AMY |
|---|---|
| Con Rod Length C/C | 164mm |
| Con Rod Big End Dia | 56.8mm |
| Con Rod Big End Width | 19.9mm |
| Con Rod Small End Dia | 21mm |
| Con Rod Small End Width | 19.9mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9093D050 | 81.43mm | 8.09:1 | 2825cc |
| K9093D100 | 81.93mm | 8.17:1 | 2860cc |
| K9093D150 | 82.43mm | 8.26:1 | 2895cc |
| K9093D200 | 82.93mm | 8.35:1 | 2930cc |
| K9093D250 | 83.43mm | 8.44:1 | 2966cc |
| K9093DA | 80.93mm | 8:1 | 2791cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
