£1,061.80

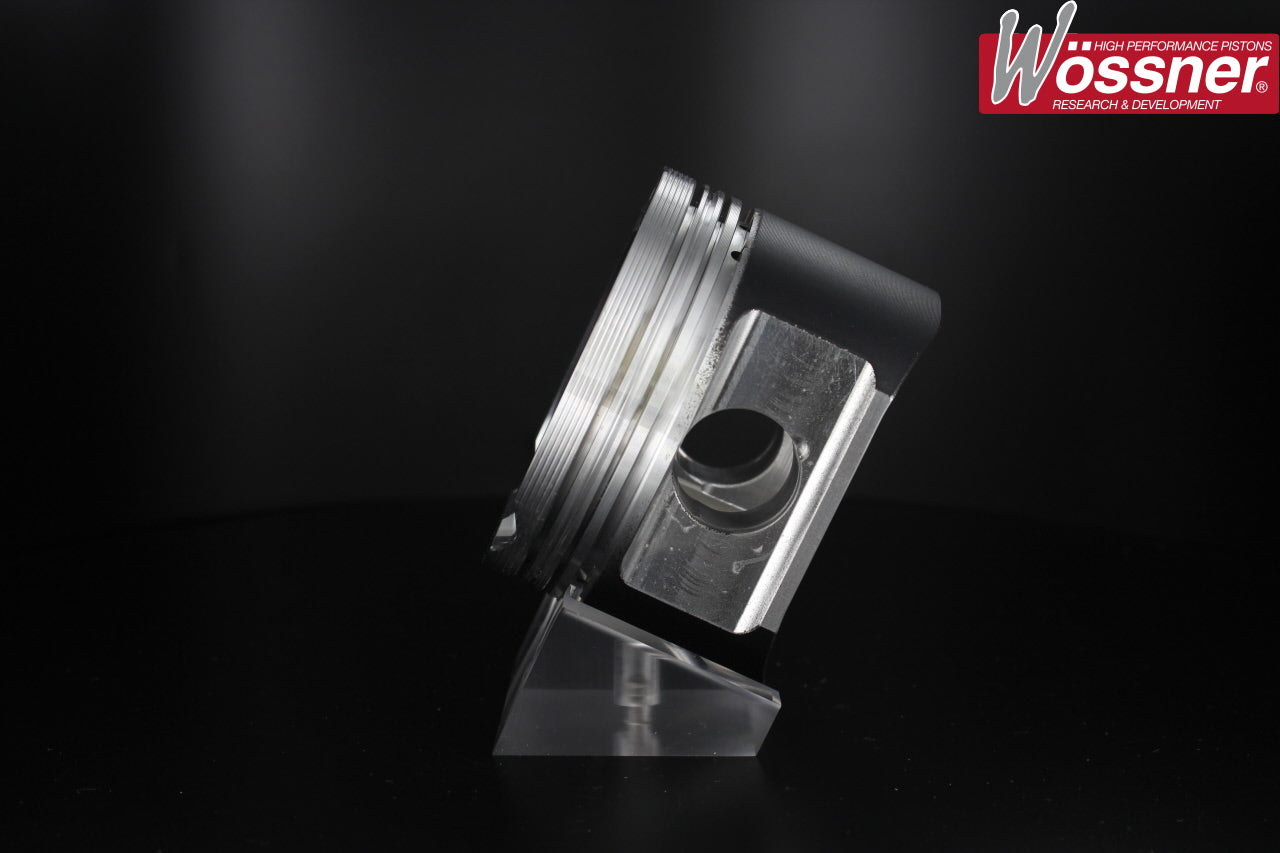

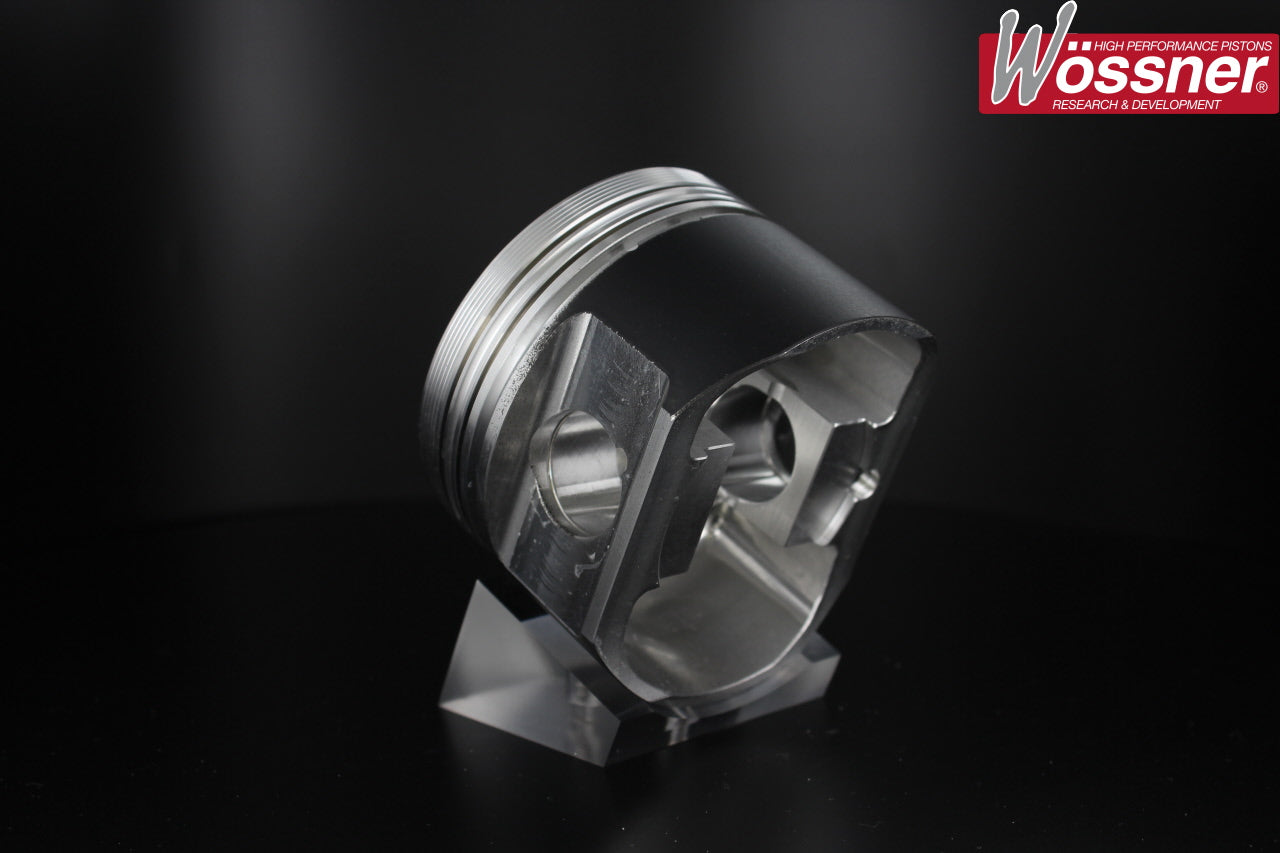

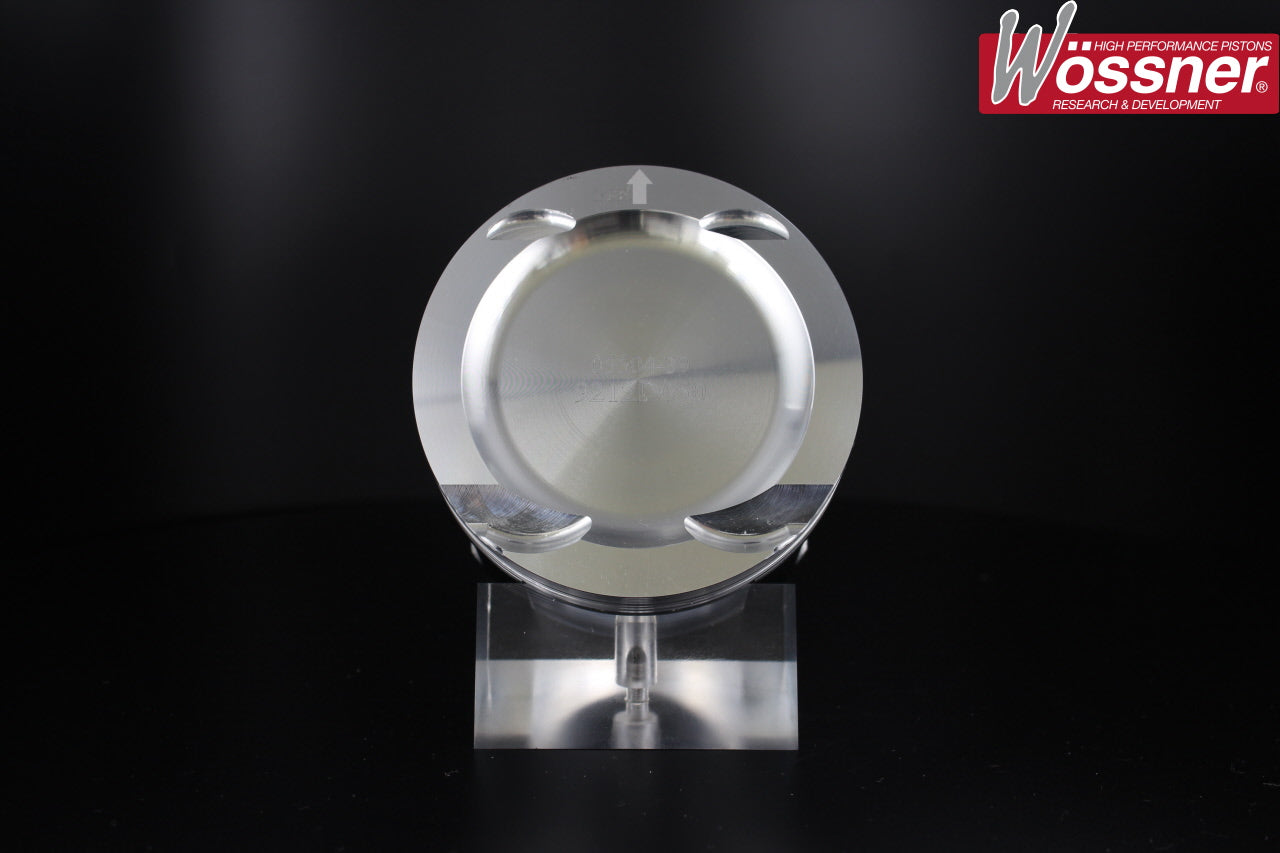

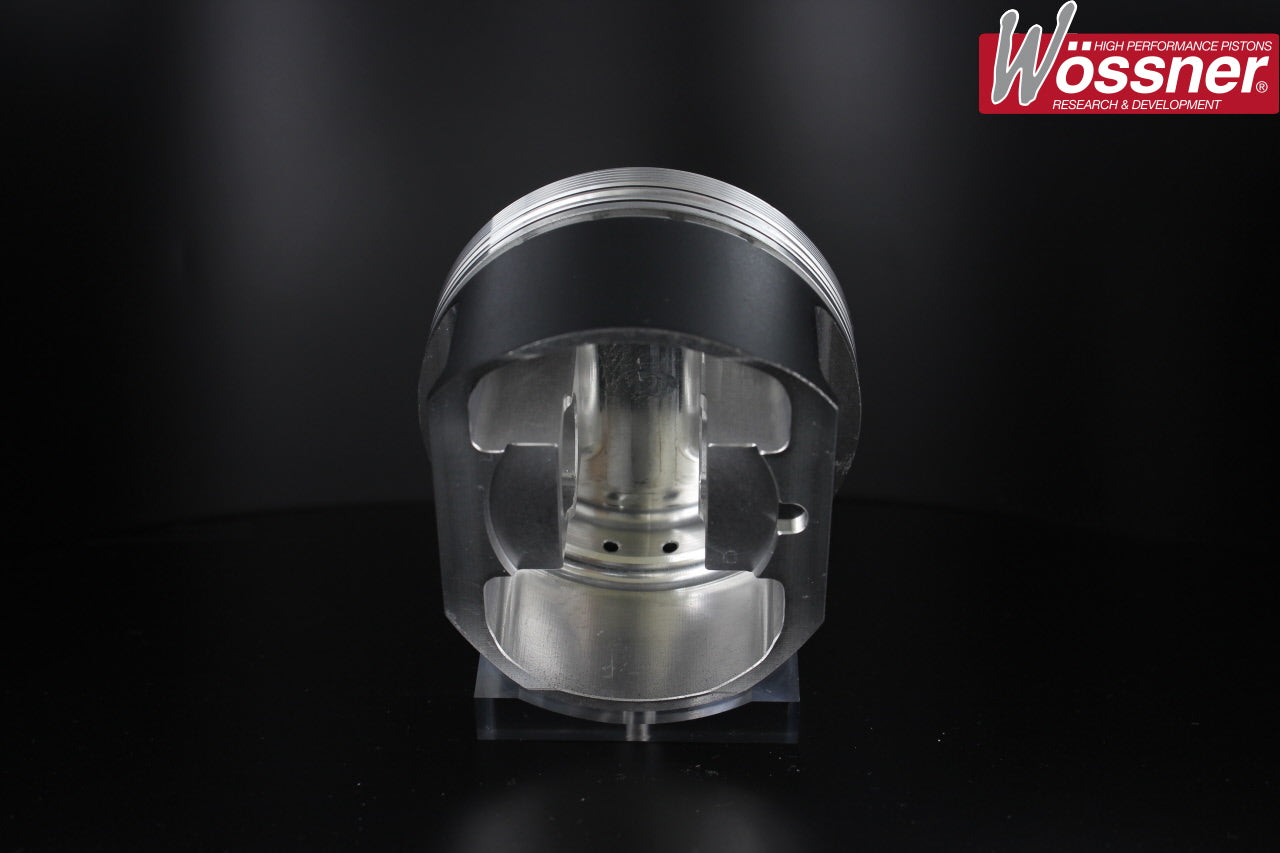

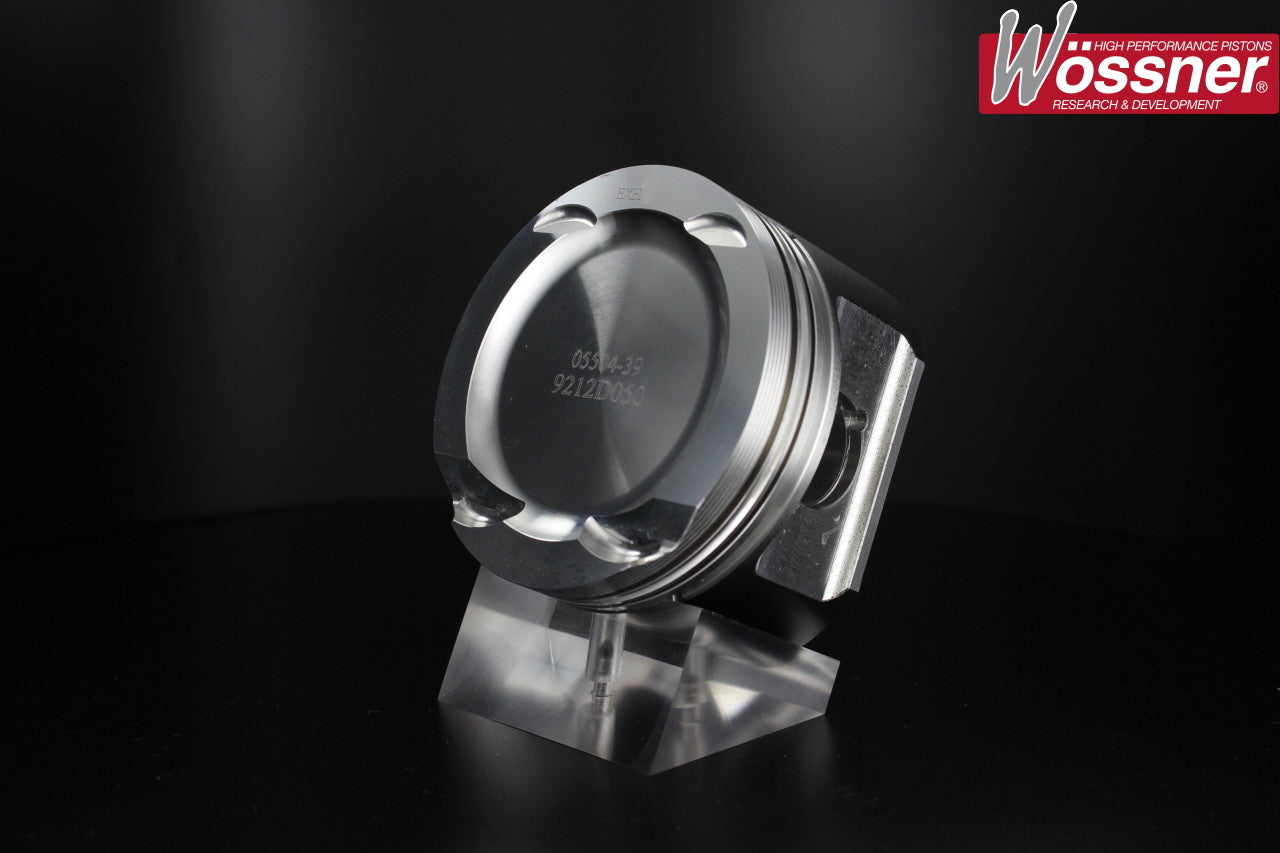

Coupe 2.0 20v Turbo 5cyl Forged Piston kit.
Manufacturer kit reference: K9212
| Engine Code | 175 A |
|---|---|
| YOM From | 1993 |
| YOM To | 2000 |
| Bore Size | 82.5mm , 82mm , 83mm |
| Stroke | 75.65mm |
| Compression Height | 32.8mm |
| OEM Comp Ratio | 8.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 145mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP136-SP |
| Cylinders | 5 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0045 |
| Con Rod Length C/C | 145mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9212D050 | 82.42mm | 8.09:1 | 2021cc |
| K9212DA | 81.92mm | 8:1 | 1997cc |
| K9212D100 | 82.92mm | 8.17:1 | 2046cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
