£1,337.74

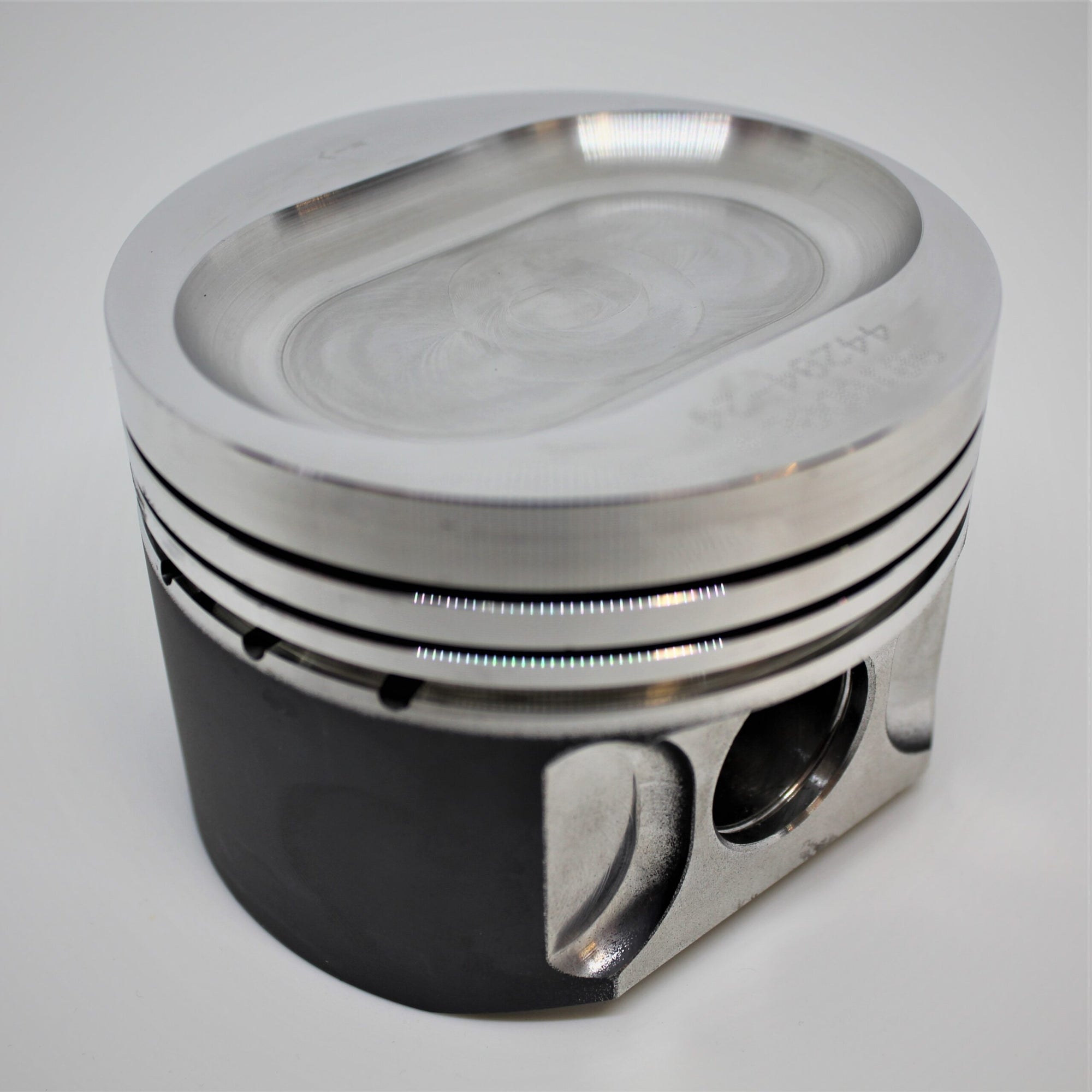

Delta HF Integrale 2.0 8v Turbo Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9010/G0041
| Engine Code | 835 |
|---|---|
| YOM From | 1990 |
| YOM To | 1994 |
| Bore Size | 84.2mm – K9010D020 , 84.4mm – K9010D040 , 84.6mm – K9010D060 , 84.8mm – K9010D080 , 84mm – K9010DA |
| Stroke | 90mm |
| Compression Height | 39.65mm |
| OEM Comp Ratio | 08:01 |
| Number of Rings | 3 |
| OEM Rod Length | 145mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0041 |
| Con Rod Length C/C | 145mm |
| Engine Code | 836 |
|---|---|
| YOM From | 1990 |
| YOM To | 1999 |
| Con Rod Length C/C | 145mm |
| Con Rod Big End Dia | 54mm |
| Con Rod Big End Width | 25.7mm |
| Con Rod Small End Dia | 22mm |
| Con Rod Small End Width | 25.7mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9010D020 | 84.1mm | 8.03:1 | 2004cc |
| K9010D040 | 84.3mm | 8.07:1 | 2013cc |
| K9010D060 | 84.5mm | 8.1:1 | 2023cc |
| K9010D080 | 84.7mm | 8.13:1 | 2032cc |
| K9010DA | 83.9mm | 1994cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
