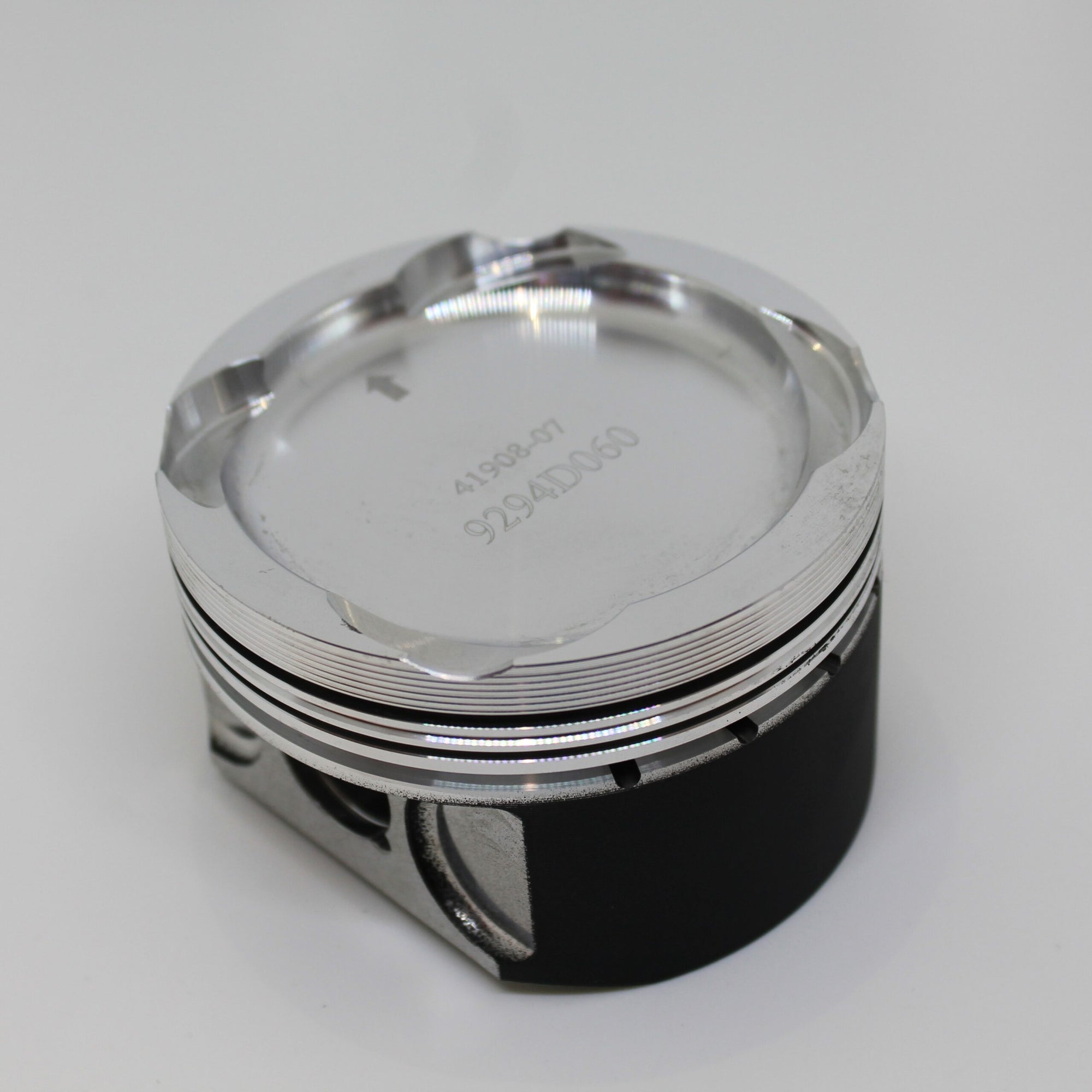

Wossner E36 M3 3.2 24v Low Comp Forged Piston Kit (K9294)

Wossner Pistons

Wossner E36 M3 3.2 24v Low Comp Forged Piston Kit (K9294)

£1,152.80

E36 M3 3.2 24v Low Comp Forged Piston Kit.

Manufacturer kit reference: K9294

Technical specifications

Engine Code S50 / B32 E36
YOM From 1995
YOM To 1999
Bore Size 86.5mm – K9294D010 , 87mm – K9294D060
Stroke 91mm
Compression Height 32.3mm
OEM Comp Ratio 11.3:1
Number of Rings 3
OEM Rod Length 139mm
Clip Part Number CW21
Pin Size 21mm
Pin Part Number WP092
Cylinders 6
Valves Per Cylinder 4

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9294D060 86.93mm 8.79:1 3245cc
K9294D010 86.43mm 8.7:1 3207cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
