£849.43

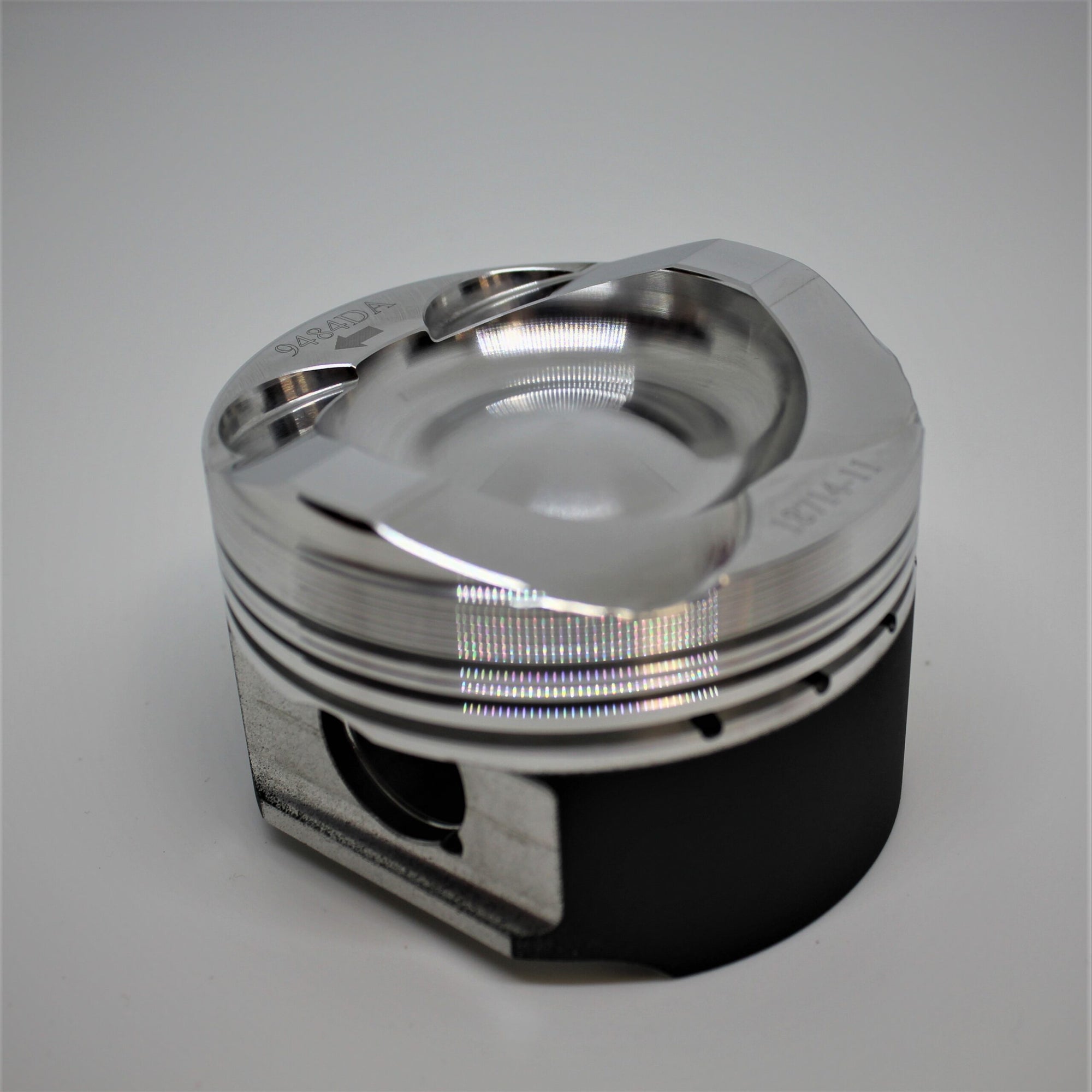

Fiesta ST 1.6 16v Turbo Eco-Boost Forged Piston Kit.
Manufacturer kit reference: K9484
| Engine Code | JQDA / JQDB |
|---|---|
| YOM From | 2010 |
| YOM To | current |
| Bore Size | 79.5mm – K9484D050 , 79mm – K9484DA |
| Stroke | 81.4mm |
| Compression Height | 28.65mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 134mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP034 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0267 |
| Con Rod Length C/C | 134mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9484DA | 78.95mm | 10:1 | 1595cc |
| K9484D050 | 79.45mm | 10:1 | 1615cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
