£1,098.78

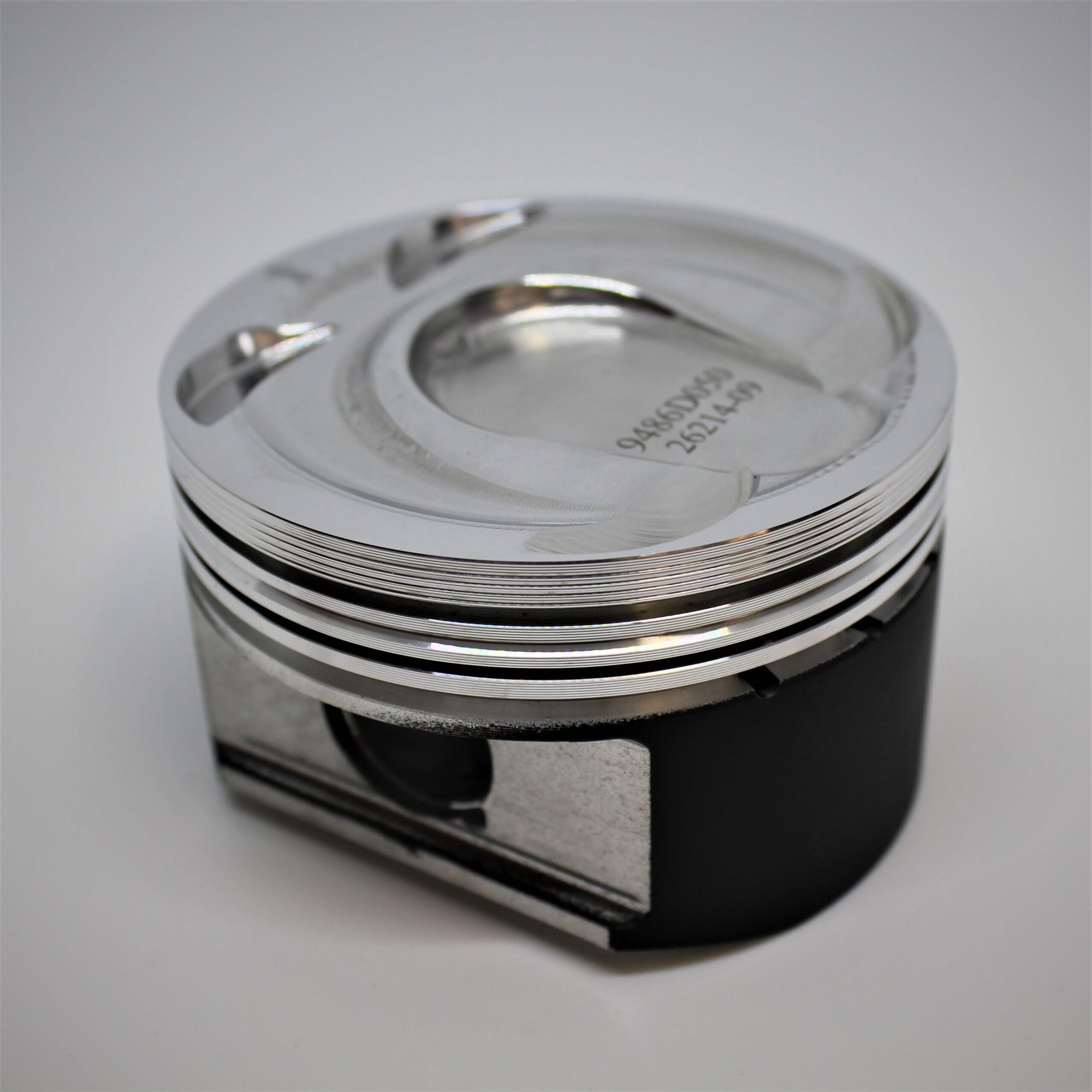

Focus ST 2.0 16v Turbo Eco-Boost Forged Piston Kit.
Manufacturer kit reference: K9486
| Engine Code | R9CD |
|---|---|
| YOM From | 2013 |
| YOM To | current |
| Bore Size | 87.5mm – K9486DA , 88mm – K9486D050 |
| Stroke | 83.1mm |
| Compression Height | 32.75mm |
| OEM Comp Ratio | 9.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 155.75mm |
| Clip Part Number | CW23 |
| Pin Size | 22.5mm |
| Pin Part Number | WP120 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0268 |
| Con Rod Length C/C | 155.75mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9486DA | 87.44mm | 9.3:1 | 1998cc |
| K9486D050 | 87.94mm | 9.3:1 | 2021cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
