Wossner Golf 4 3.2 24v R32 Low Comp Forged Piston & H-Beam Steel Con Rod Package (K9094/G0103)

Wossner Pistons

Wossner Golf 4 3.2 24v R32 Low Comp Forged Piston & H-Beam Steel Con Rod Package (K9094/G0103)

£2,121.52

Golf 4 3.2 24v R32 Low Comp Forged Piston & H-Beam Steel Con Rod Package.

Manufacturer kit reference: K9094/G0103

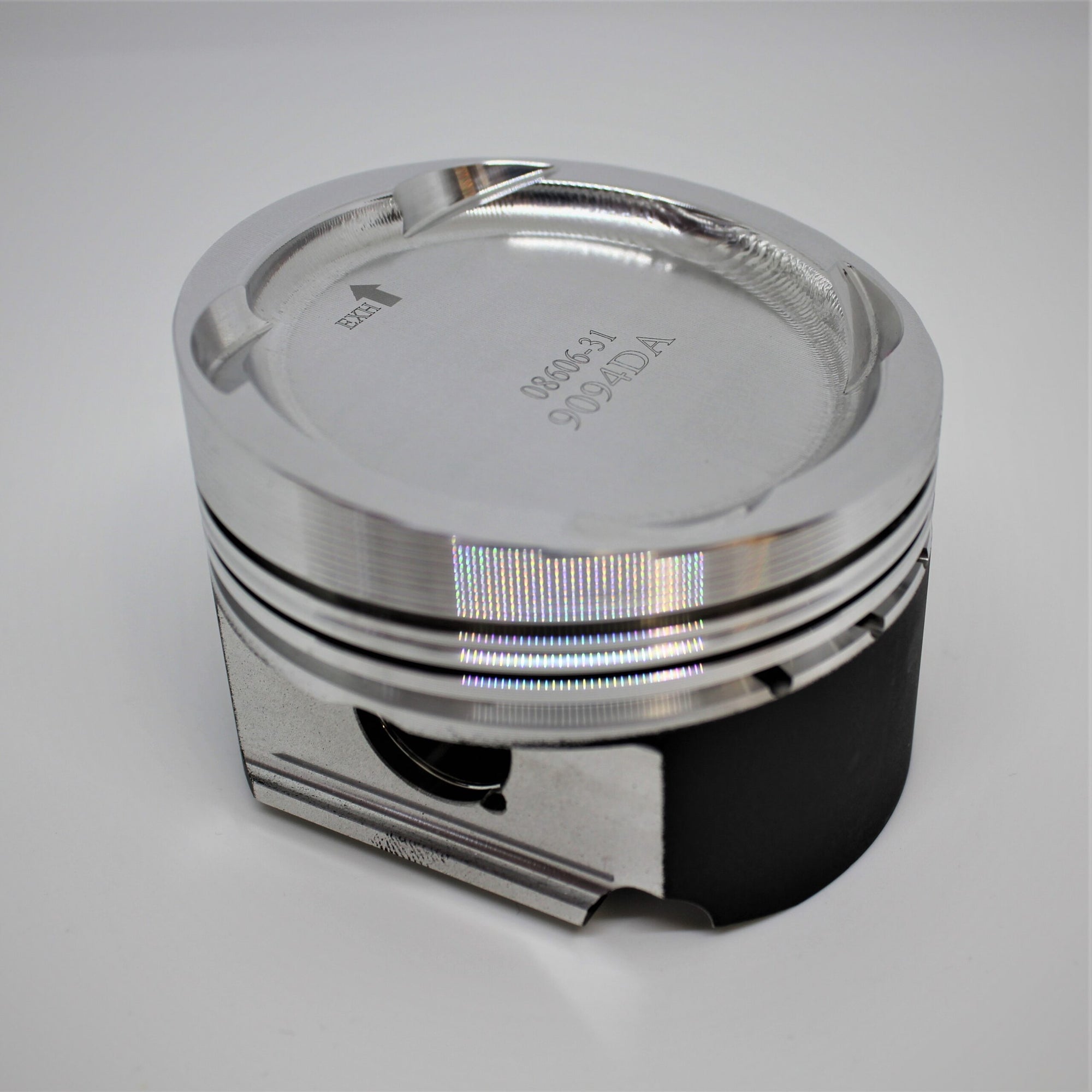

Golf 4 3.2 24v R32 Low Comp Forged Piston Kit

Engine Code	BFH , BJS , BML
YOM From	2002
YOM To	2005
Bore Size	84.5mm , 84mm , 85mm
Stroke	95.9mm
Compression Height	29.5mm
OEM Comp Ratio	11.3:1
Number of Rings	3
OEM Rod Length	164mm
Clip Part Number	CW20
Pin Size	20mm
Pin Part Number	WP052
Cylinders	6
Valves Per Cylinder	4
Suits Wossner Con Rod	G0103
Con Rod Length C/C	143.1mm

VW 2.8 & 2.9 VR6 + R32 Not suitable for OE bore 2.8 H-Beam Connecting rods

Engine Code	AAA , ABV , AES , AMY
Con Rod Length C/C	164mm
Con Rod Big End Dia	56.8mm
Con Rod Big End Width	19.9mm
Con Rod Small End Dia	21mm
Con Rod Small End Width	19.9mm
Con Rod Bolt	3/8"

Kit contents

Golf 4 3.2 24v R32 Low Comp Forged Piston Kit
VW 2.8 & 2.9 VR6 + R32 **Not suitable for OE bore 2.8** H-Beam Connecting rods
ARP Bolt 3/8" Thread 1.5" UHL 2000 Series (4AJ1.500-2SU) × 12
ARP Assembly Lubricant (100-9908)

Piston specifications by size

Piston reference	Piston diameter	Compression ratio	Capacity
K9094D050	84.43mm	9.1:1	3226cc
K9094D100	84.93mm	9.19:1	3264cc
K9094DA	83.93mm	9:1	3188cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
