£1,401.83

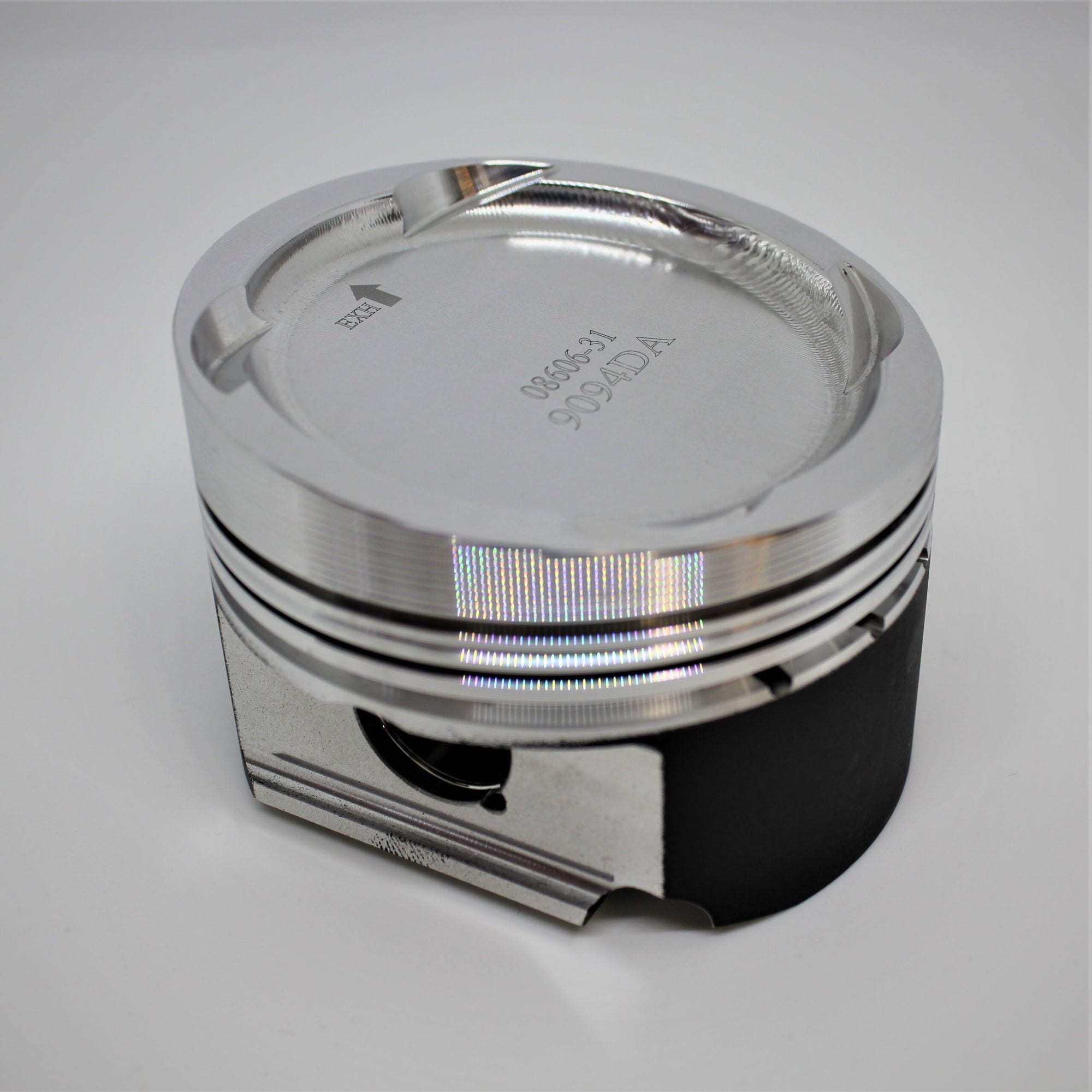

Golf 4 3.2 24v R32 Low Comp Forged Piston Kit.
Manufacturer kit reference: K9094
| Engine Code | BFH , BJS , BML |
|---|---|
| YOM From | 2002 |
| YOM To | 2005 |
| Bore Size | 84.5mm , 84mm , 85mm |
| Stroke | 95.9mm |
| Compression Height | 29.5mm |
| OEM Comp Ratio | 11.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 164mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP052 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0103 |
| Con Rod Length C/C | 143.1mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9094D050 | 84.43mm | 9.1:1 | 3226cc |
| K9094D100 | 84.93mm | 9.19:1 | 3264cc |
| K9094DA | 83.93mm | 9:1 | 3188cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
