£1,337.74

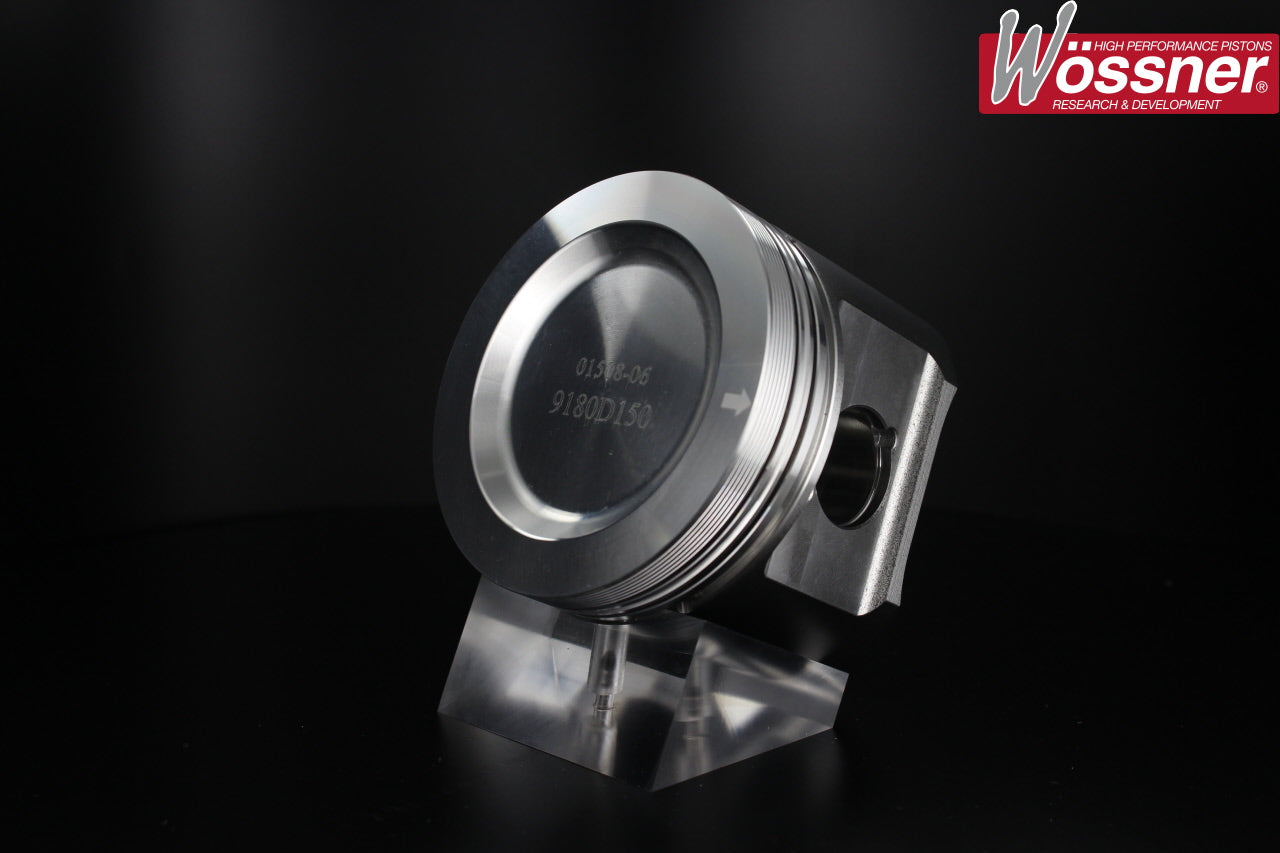

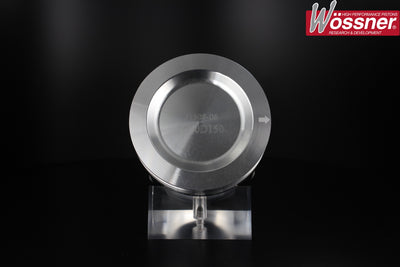

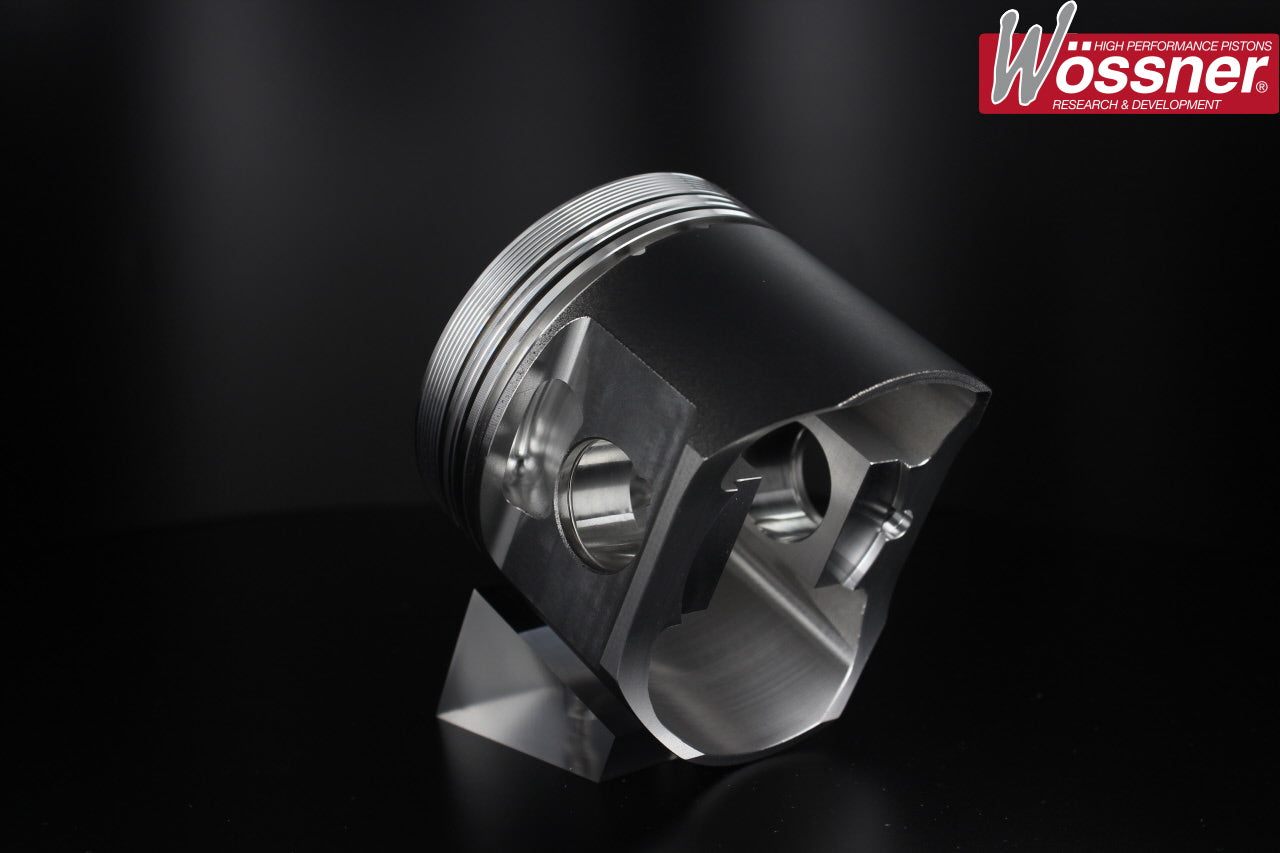

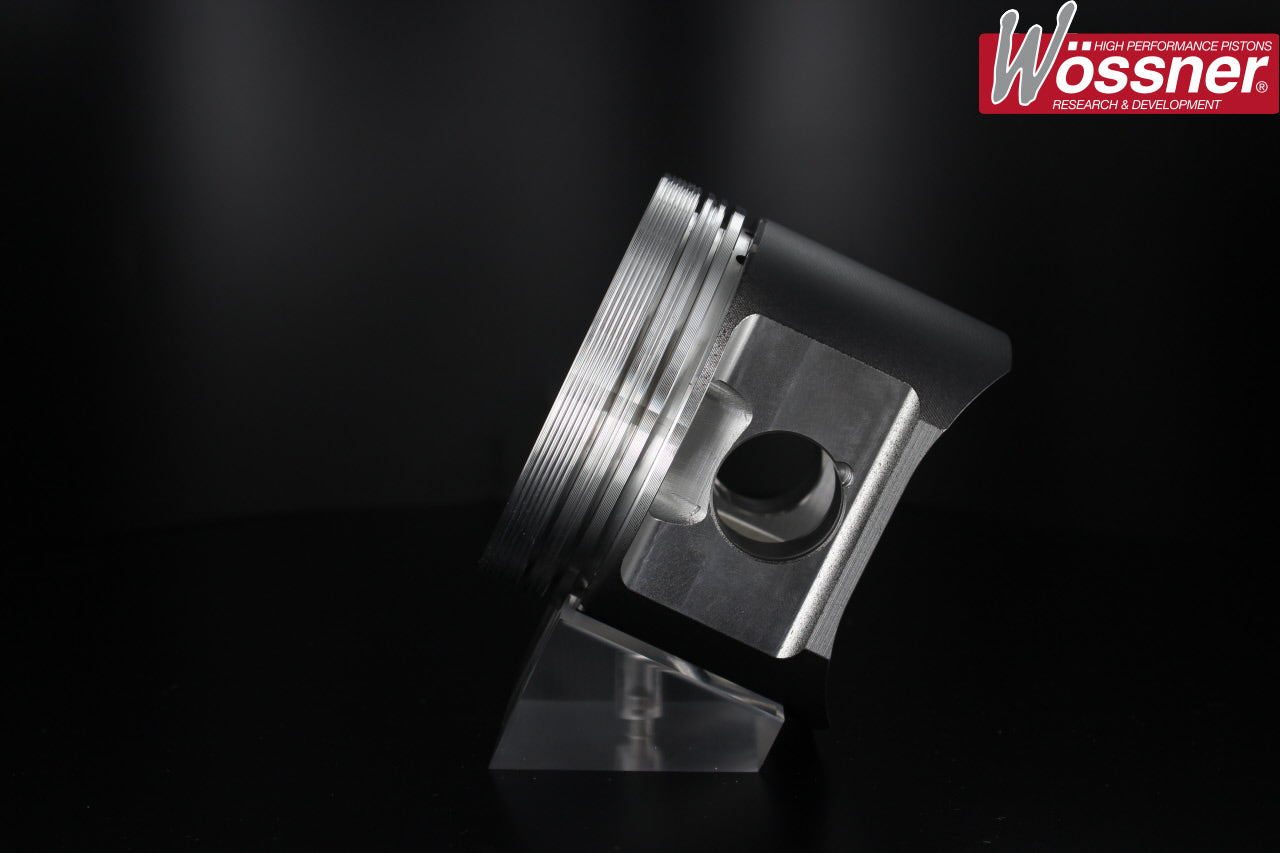

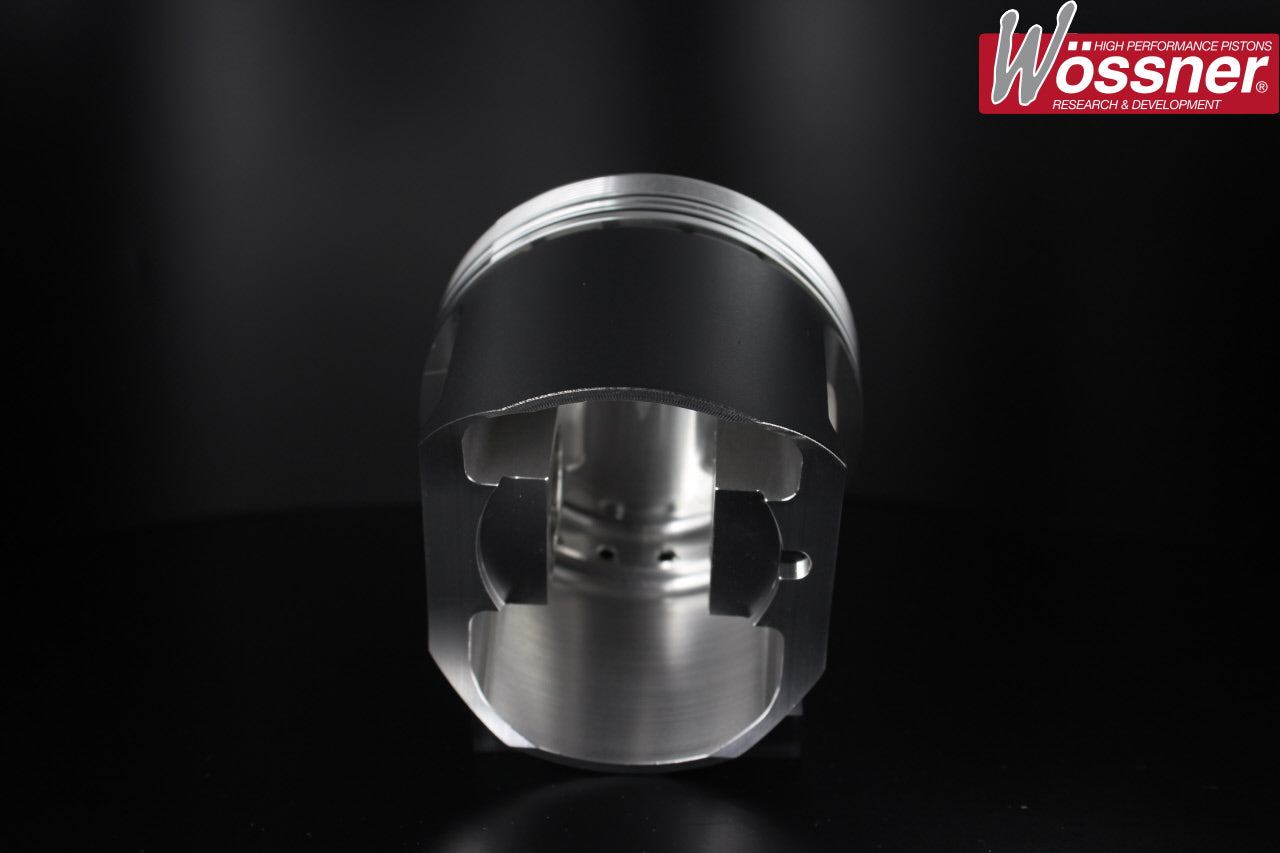

Golf Gti Mk1 1.6 8v High Comp Forged Piston & H-Beam Steel Con Rod Package.
Manufacturer kit reference: K9180/G0355
| Engine Code | EG |
|---|---|
| YOM From | 1976 |
| YOM To | 1982 |
| Bore Size | 79.5mm , 79.75mm , 80.5mm , 80mm , 81mm |
| Stroke | 80mm |
| Compression Height | 40.7mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 136mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0355 |
| Con Rod Length C/C | 136mm |
| Engine Code | CAW , CBF , CCT. CCZ |
|---|---|
| Con Rod Length C/C | 136mm |
| Con Rod Big End Dia | 49mm |
| Con Rod Big End Width | 24.95mm |
| Con Rod Small End Dia | 22mm |
| Con Rod Small End Width | 24.95mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9180D025 | 79.68mm | 11.66:1 | 1598cc |
| K9180D050 | 79.93mm | 11.73:1 | 1608cc |
| K9180D100 | 80.43mm | 11.86:1 | 1628cc |
| K9180D150 | 80.93mm | 12:1 | 1648cc |
| K9180DA | 79.43mm | 11.6:1 | 1588cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
