£768.53

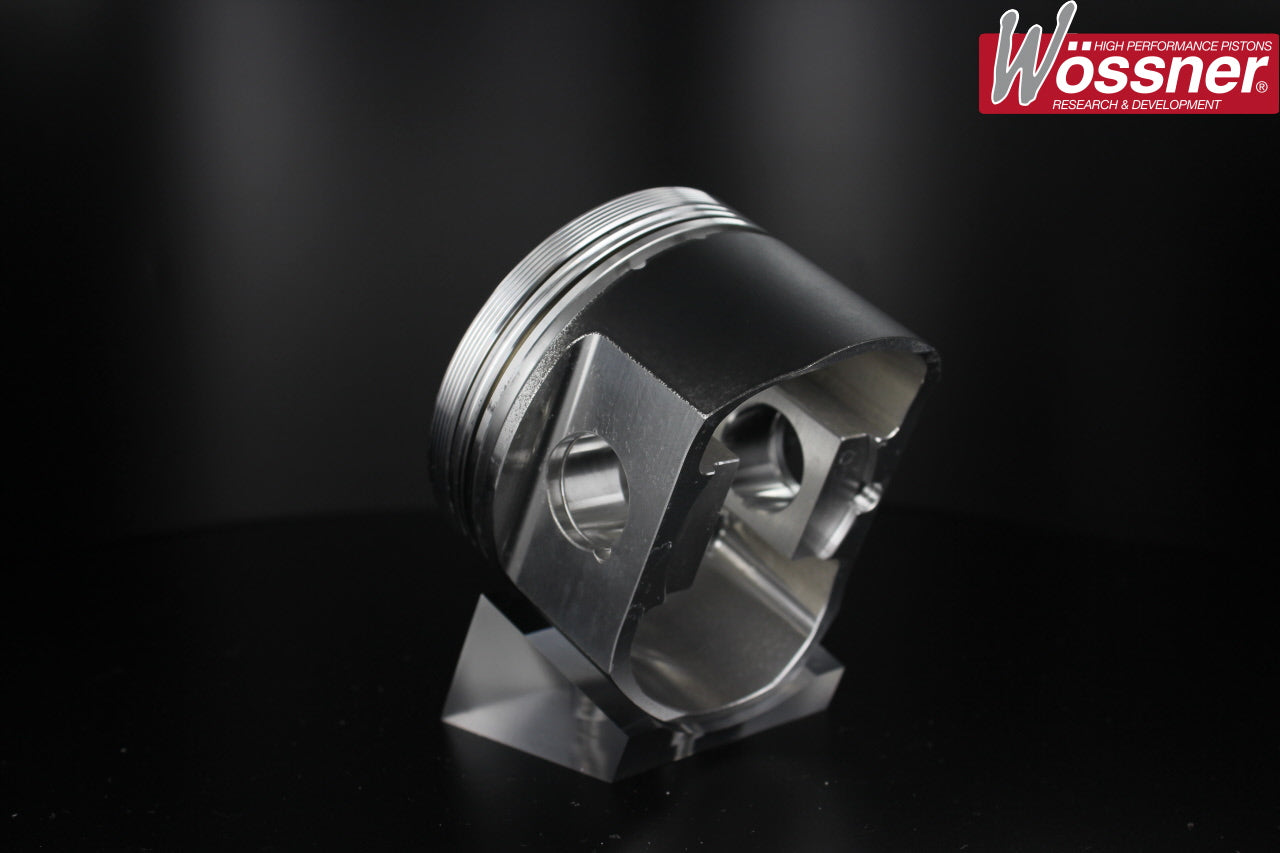

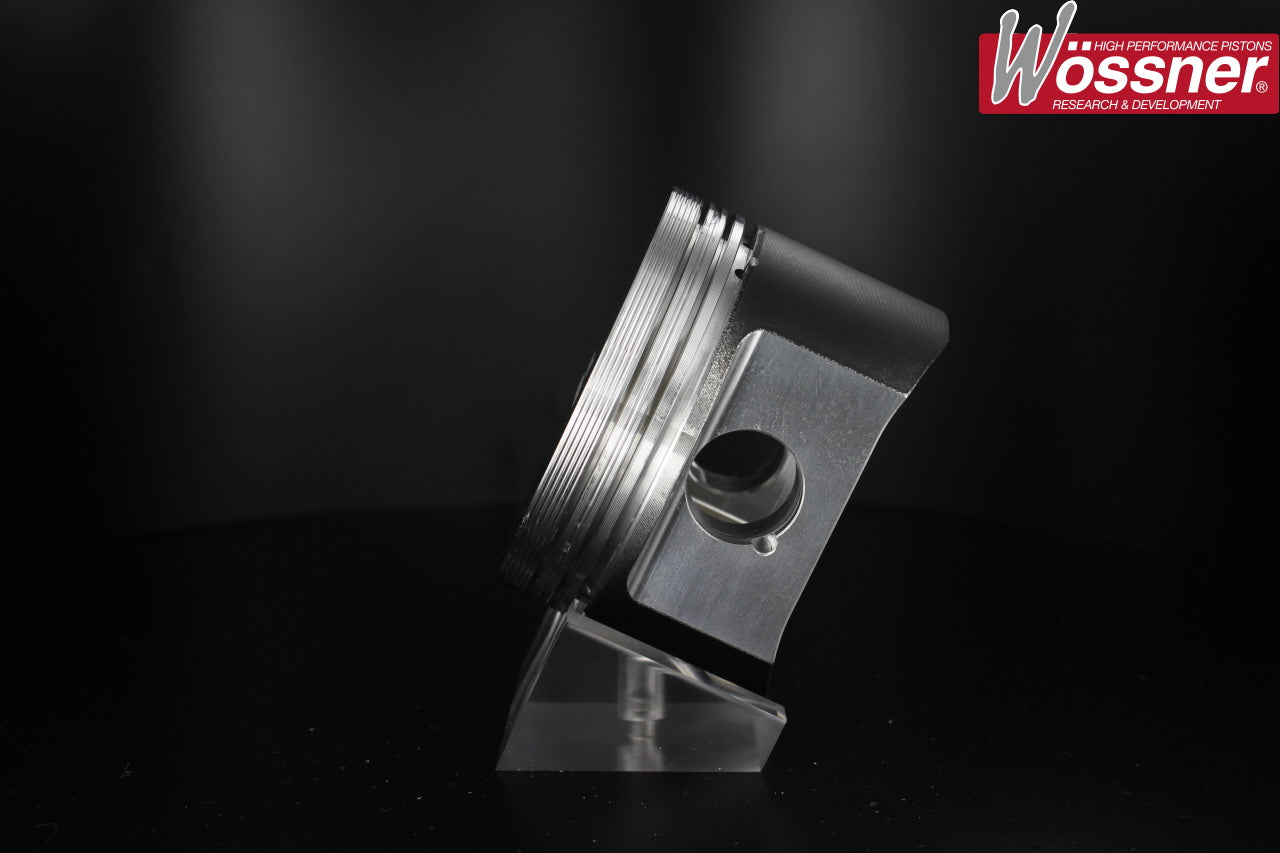

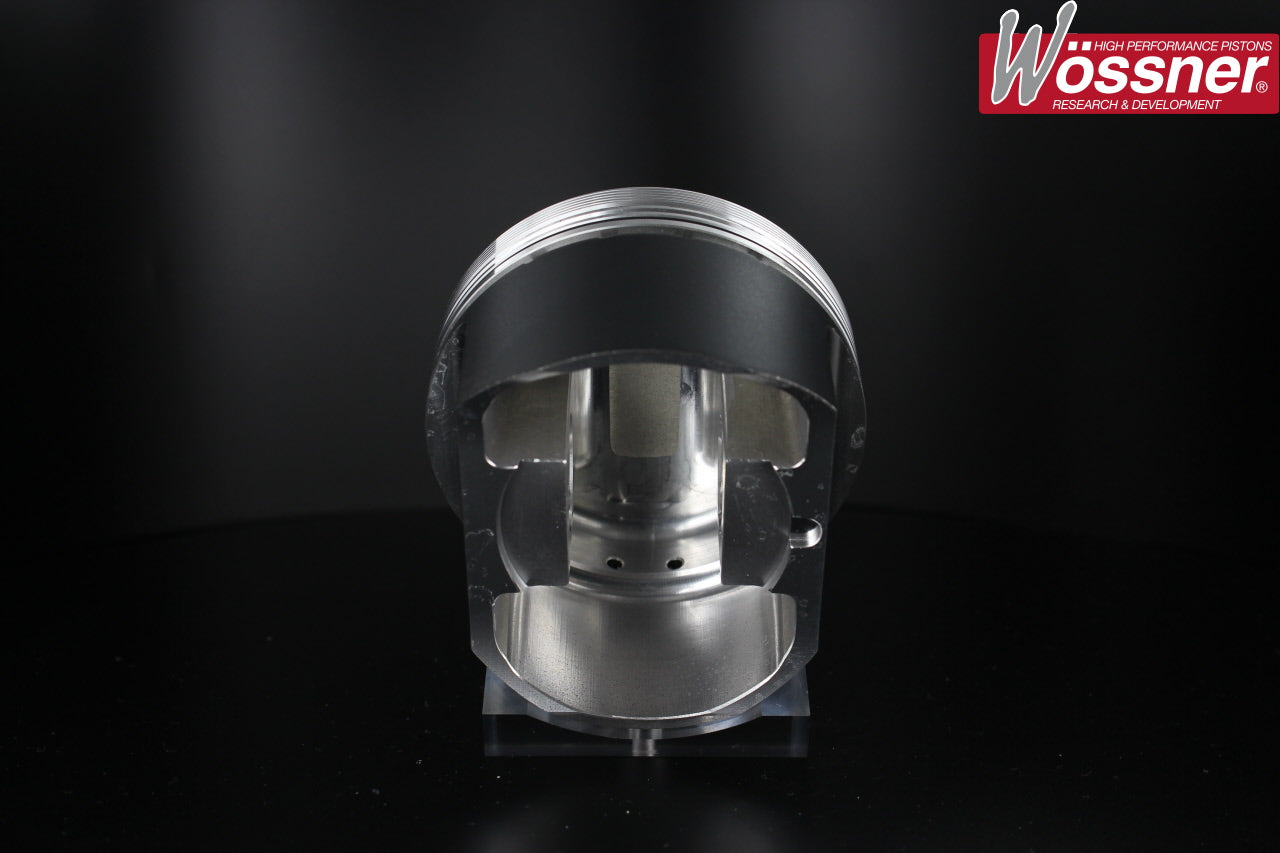

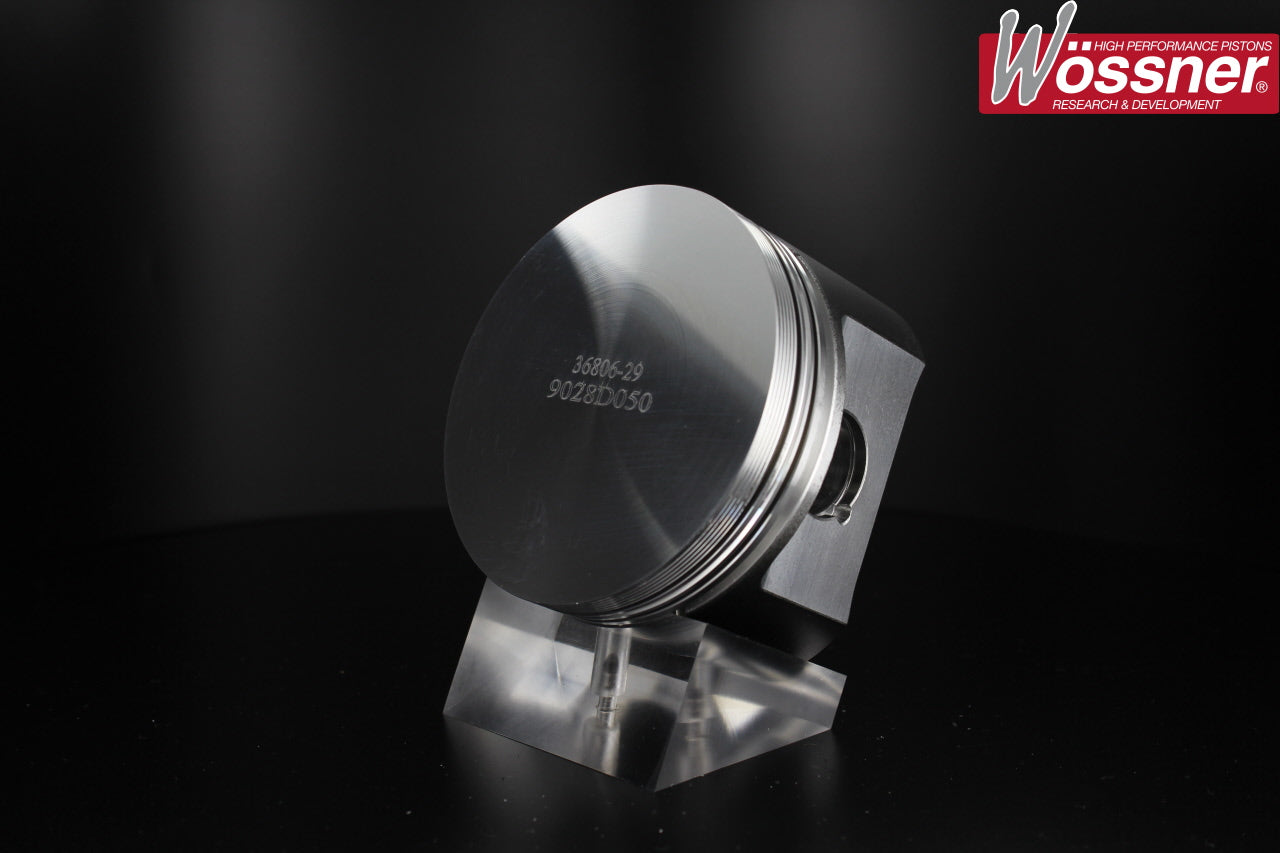

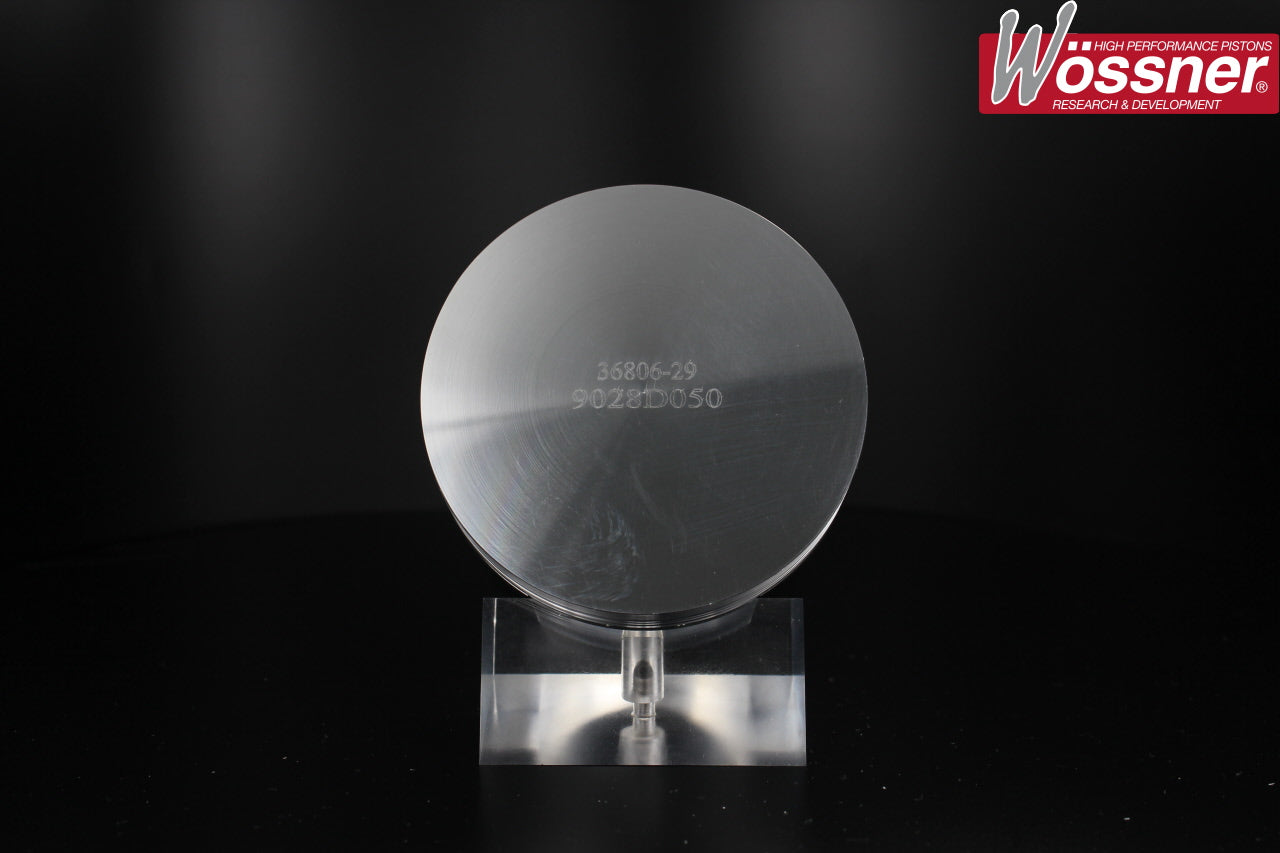

Golf Gti Mk1 & Mk2 1.8 8v High Comp Forged Piston Kit.
Manufacturer kit reference: K9028
| Engine Code | 1P/ 2H/ ABS/ ADZ/ GU/ GX/ HV/ JV/ DS/ DX/ DZ/ EV/ GZ/ KT/ HAT/ JH/ PB |
|---|---|
| YOM From | 1982 |
| YOM To | 1989 |
| Bore Size | 81.5mm , 81mm , 82.5mm , 82mm , 83.5mm , 83mm |
| Stroke | 86.4mm |
| Compression Height | 32.2mm |
| OEM Comp Ratio | 10:01 |
| Number of Rings | 3 |
| OEM Rod Length | 144mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP052 |
| Cylinders | 4 |
| Valves Per Cylinder | 2 |
| Suits Wossner Con Rod | G0049 |
| Con Rod Length C/C | 144mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9028D200 | 82.93mm | 11.81:1 | 1869cc |
| K9028D050 | 81.43mm | 11.42:1 | 1802cc |
| K9028D100 | 81.93mm | 11.55:1 | 1824cc |
| K9028D150 | 82.43mm | 11.68:1 | 1847cc |
| K9028D250 | 83.43mm | 11.94:1 | 1892cc |
| K9028DA | 80.93mm | 11.3:1 | 1780cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
