£1,401.83

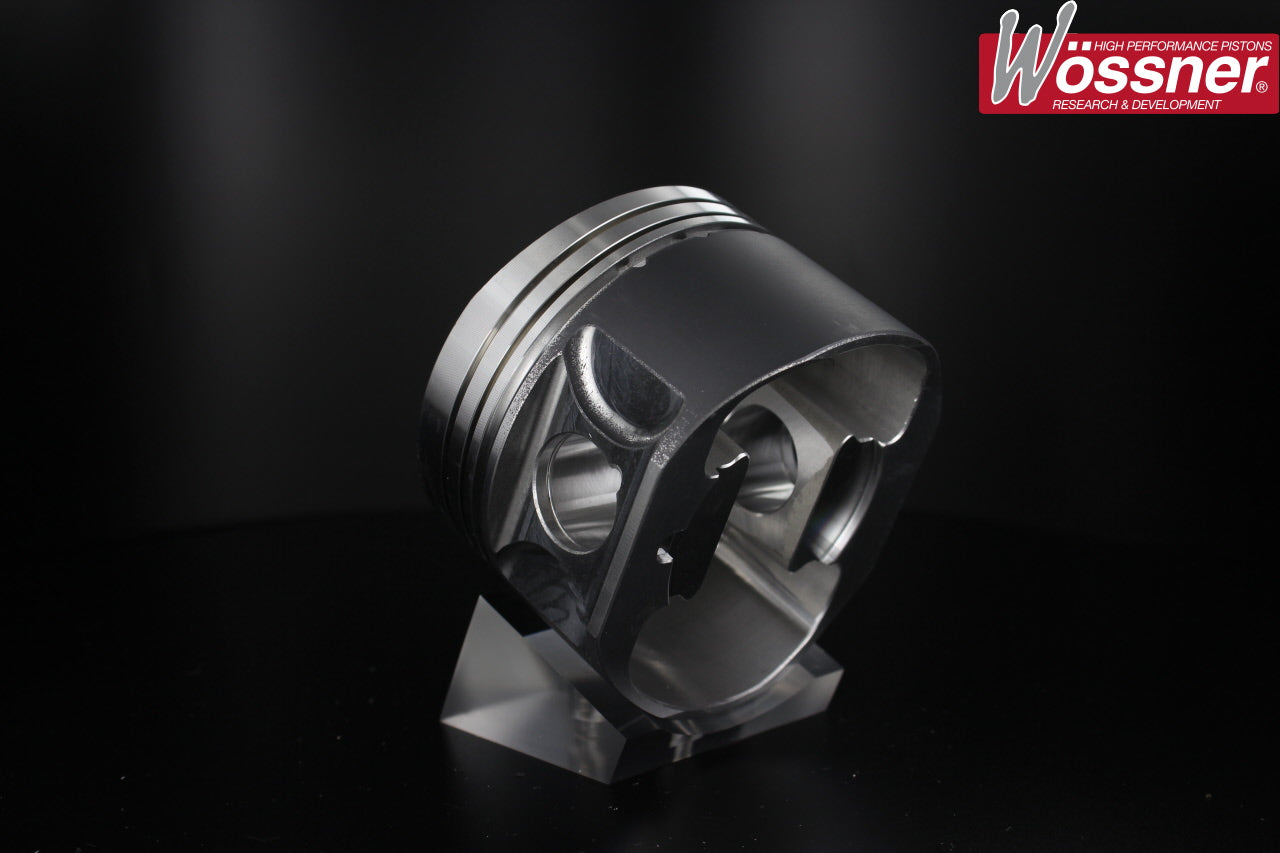

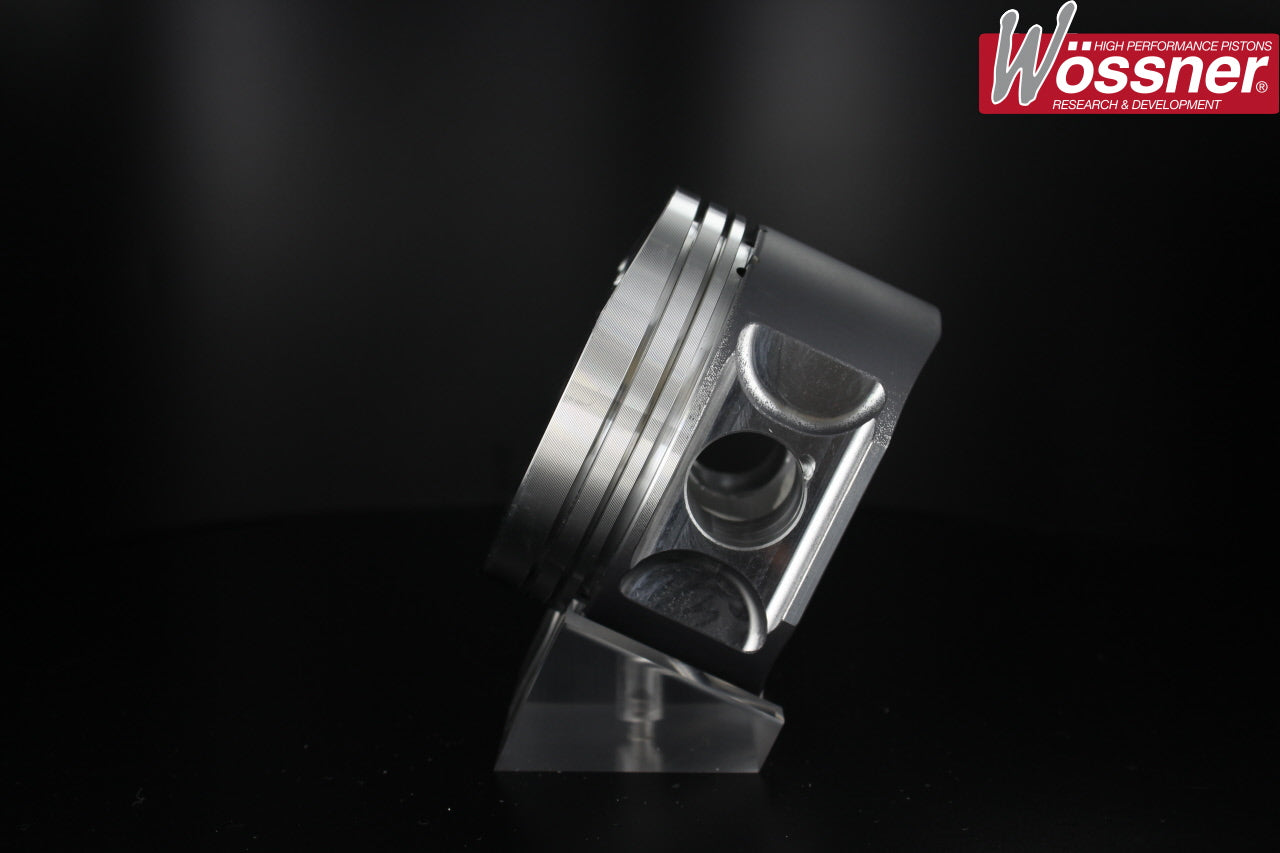

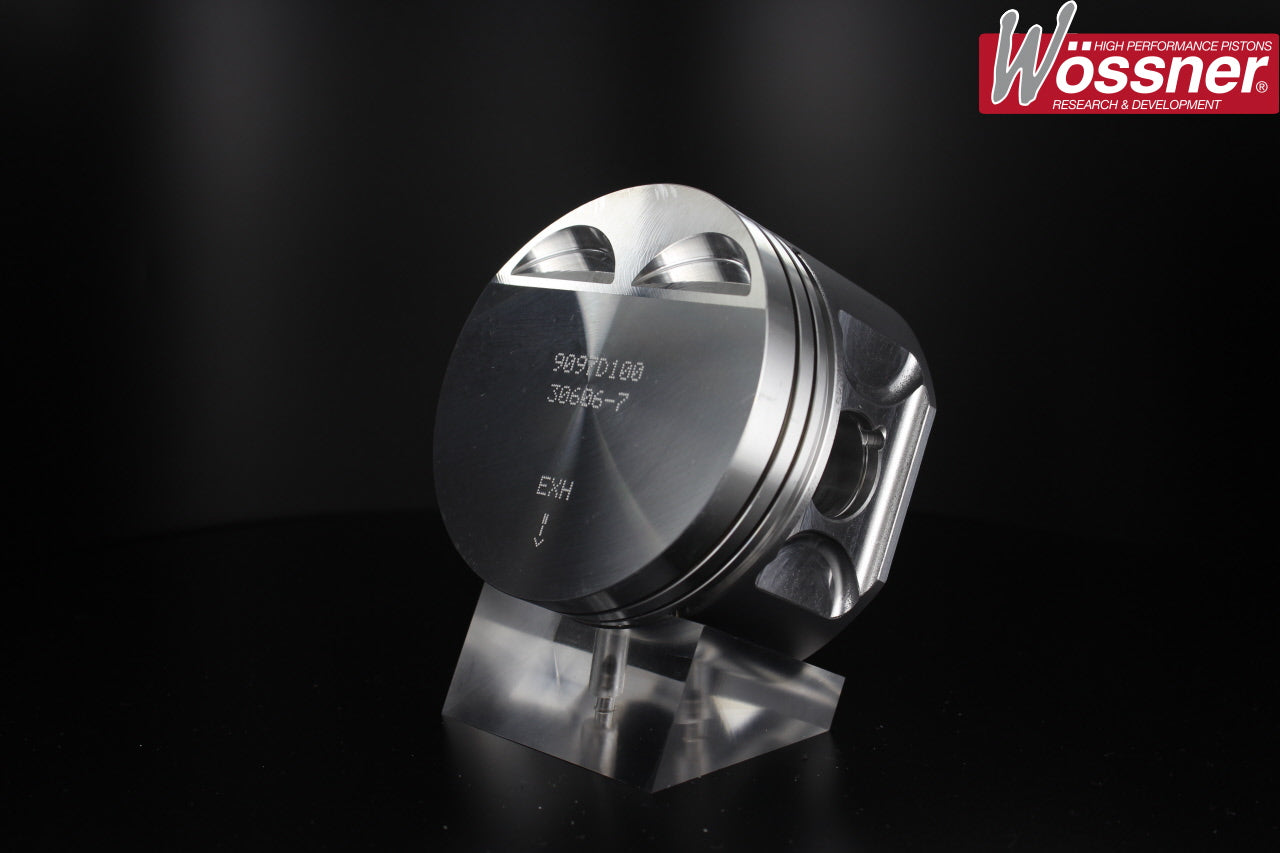

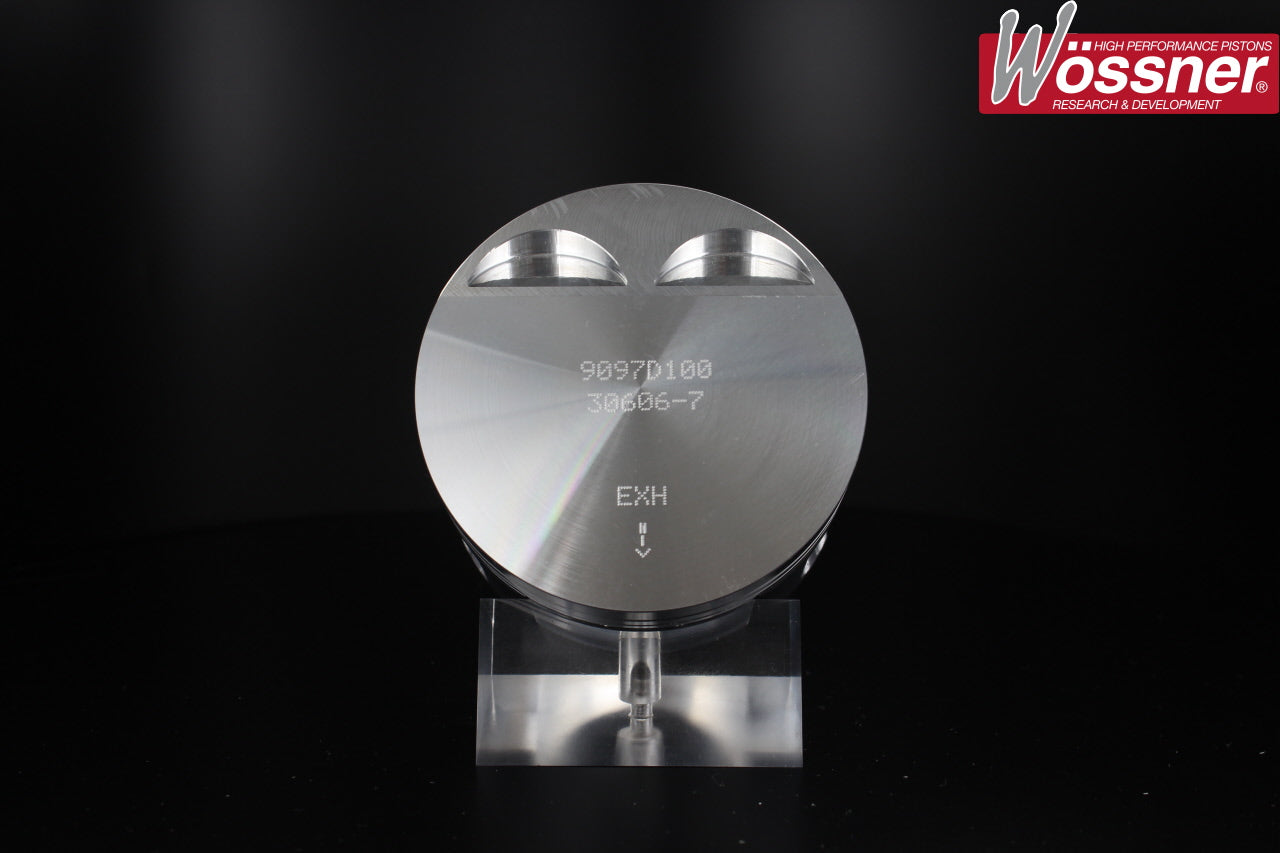

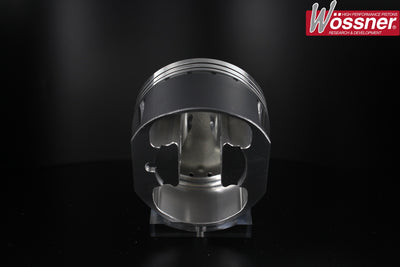

Golf V6 4 Motion Turbo Forged Piston Kit.
Manufacturer kit reference: K90976
| Engine Code | AMV , AQP , AUE , AYL , BDE |
|---|---|
| YOM From | 1999 |
| YOM To | 2005 |
| Bore Size | 81mm , 82.5mm , 82mm , 83mm |
| Stroke | 90.3mm |
| Compression Height | 35.1mm |
| OEM Comp Ratio | 10.75:1 |
| Number of Rings | 3 |
| OEM Rod Length | 164mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP061 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9097D100-6 | 81.93mm | 2860cc | |
| K9097D150-6 | 82.43mm | 2895cc | |
| K9097D200-6 | 82.93mm | 2930cc | |
| K9097DA-6 | 80.93mm | 2791cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
