£1,736.02

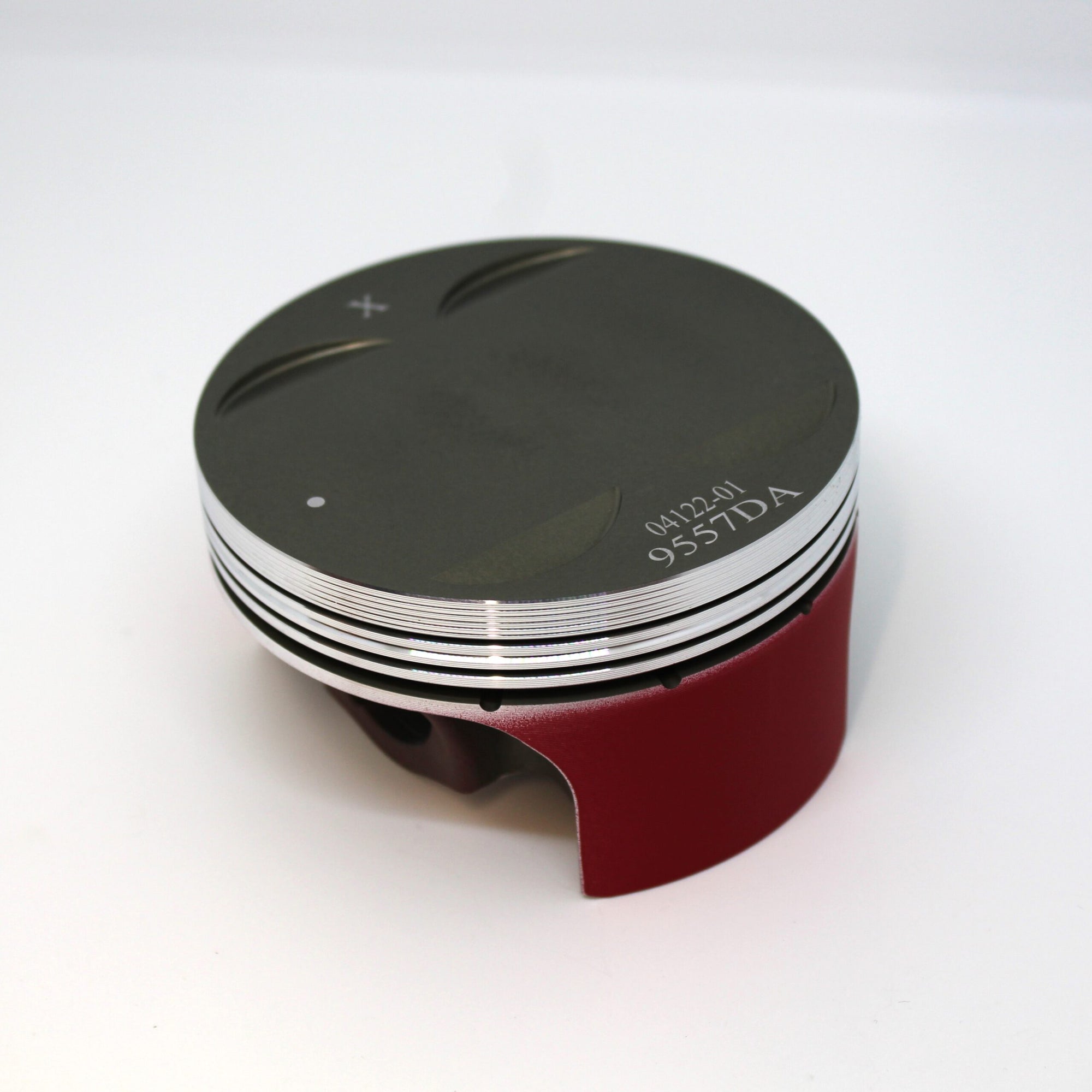

GT-R 3.8 V6 Turbo Race Comp Hard Anodised Forged Piston Kit.
Manufacturer kit reference: K9557
| Engine Code | VR38DETT |
|---|---|
| YOM From | 2007 |
| YOM To | current |
| Bore Size | 95.5mm – K9557DA , 96mm – K9557D050 |
| Stroke | 88.4mm |
| Compression Height | 34.3mm |
| OEM Comp Ratio | 09:01 |
| Number of Rings | 3 |
| OEM Rod Length | 165.1mm |
| Clip Part Number | CW23 |
| Pin Size | 23mm |
| Pin Part Number | WP143-SP |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9557D050 | 95.93mm | 9.5:1 | 3838cc |
| K9557DA | 95.43mm | 9.5:1 | 3798cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
