£808.99

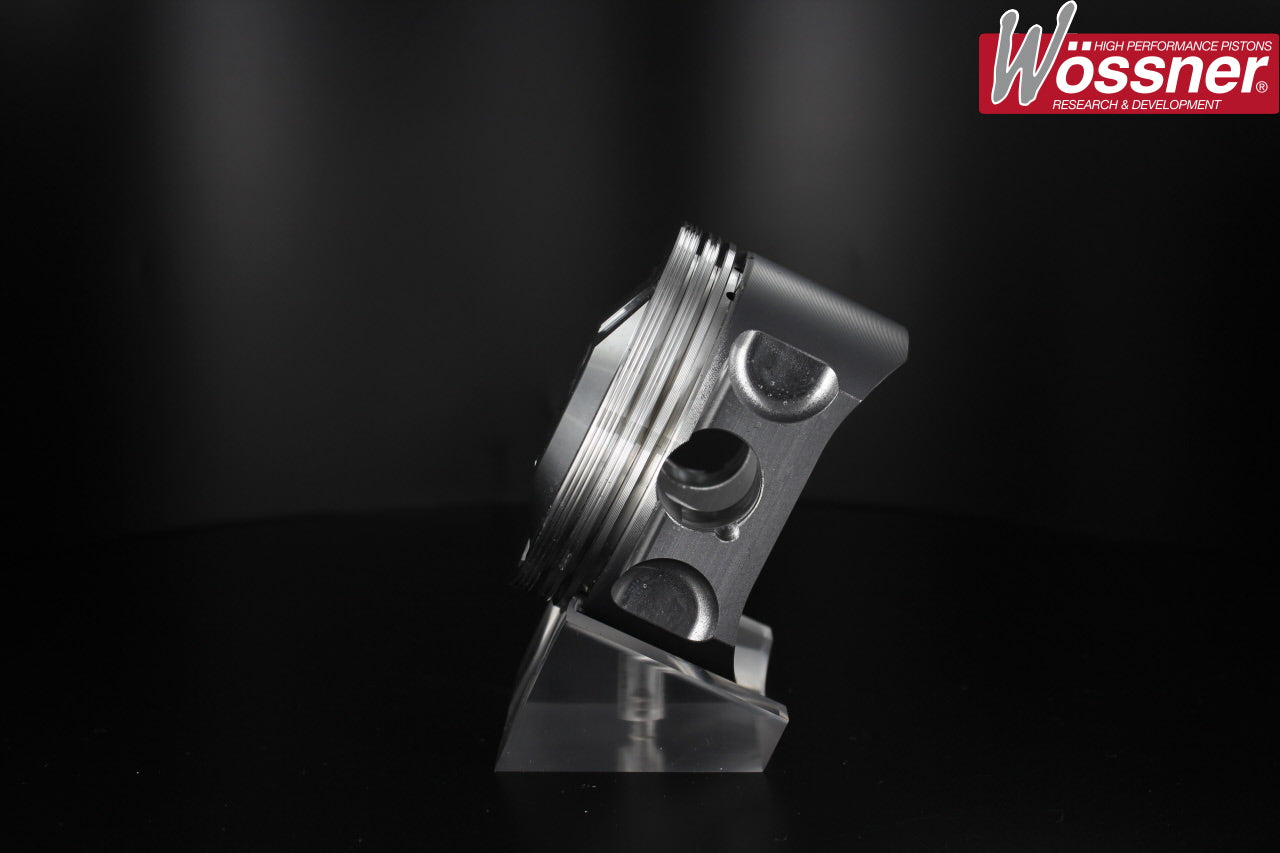

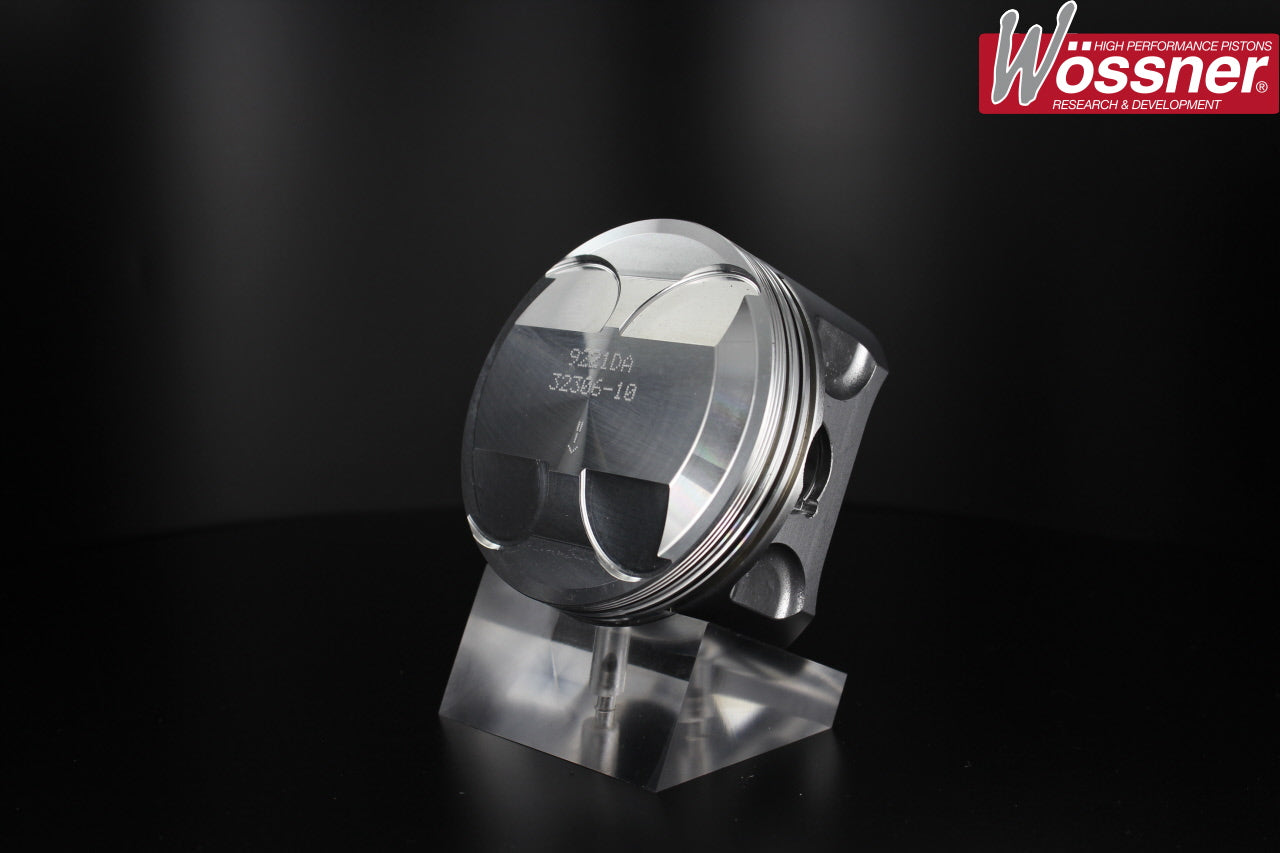

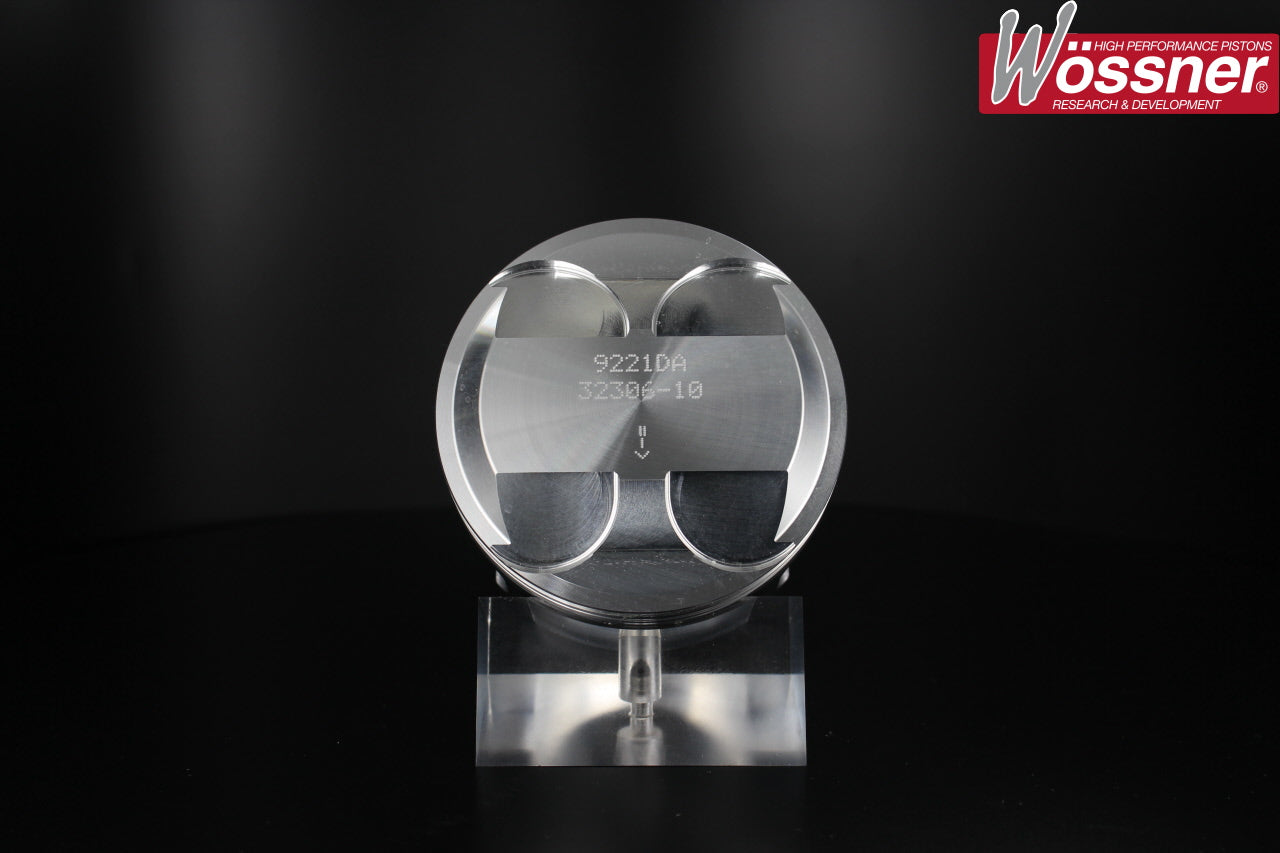

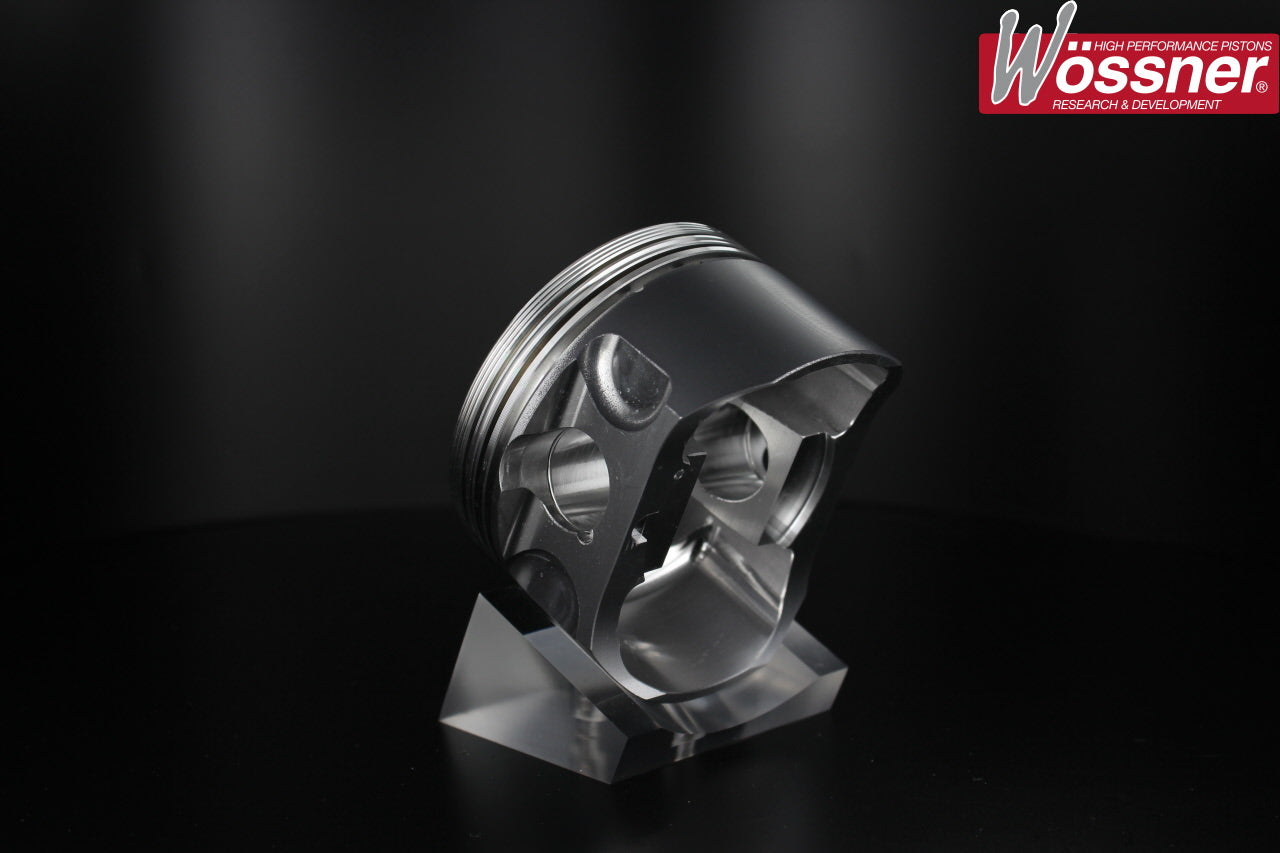

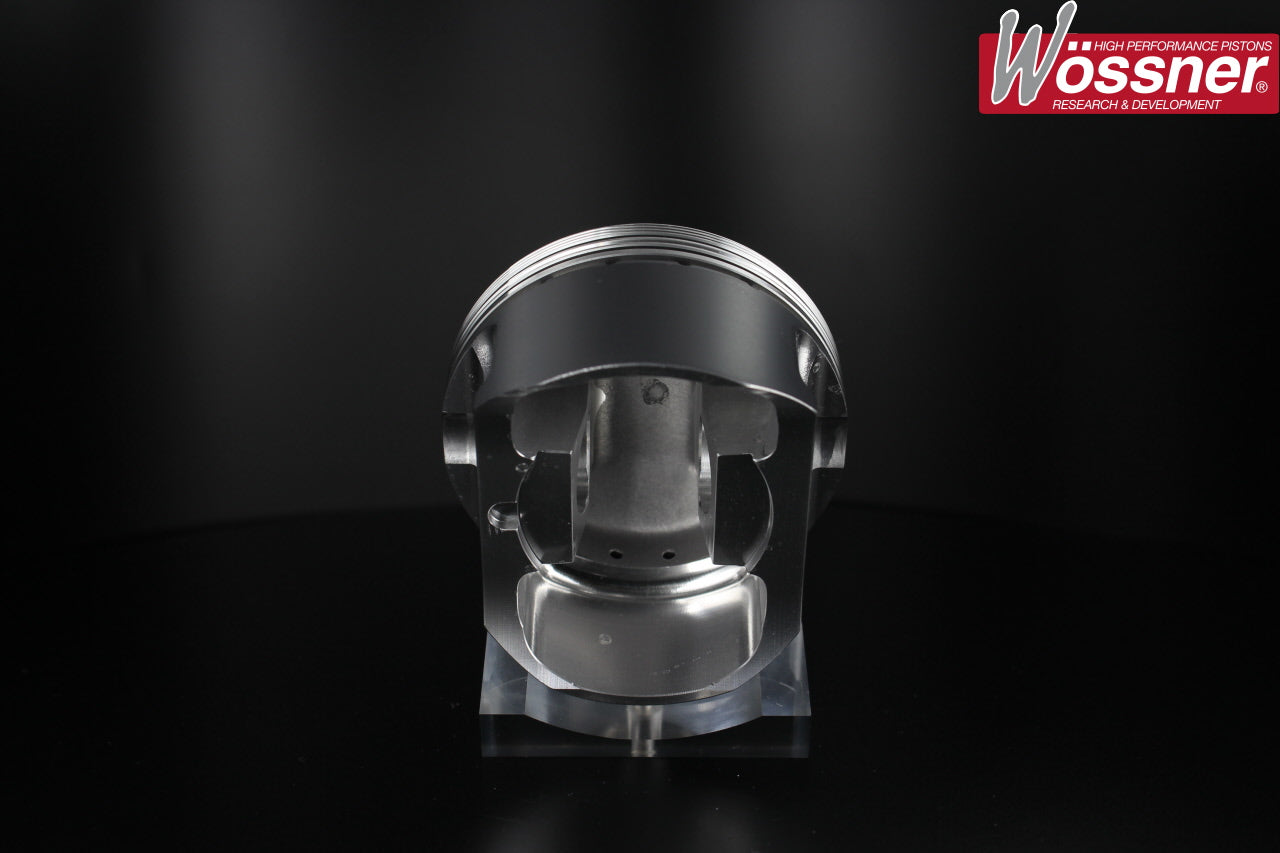

K-Series 1.4 16v High Comp Forged Piston kit.
Manufacturer kit reference: K9221
| Engine Code | 14K4F |
|---|---|
| YOM From | 1991 |
| YOM To | 1998 |
| Bore Size | 75mm |
| Stroke | 79mm |
| Compression Height | 22.5mm |
| OEM Comp Ratio | 10.3:1 |
| Number of Rings | 3 |
| OEM Rod Length | 139.4mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP031 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9221DA | 74.93mm | 12.5:1 | 1395cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
