£849.43

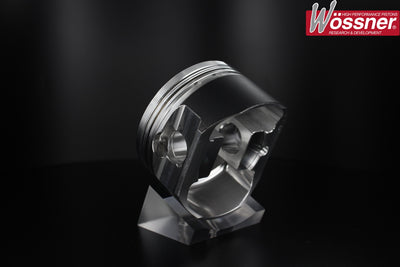

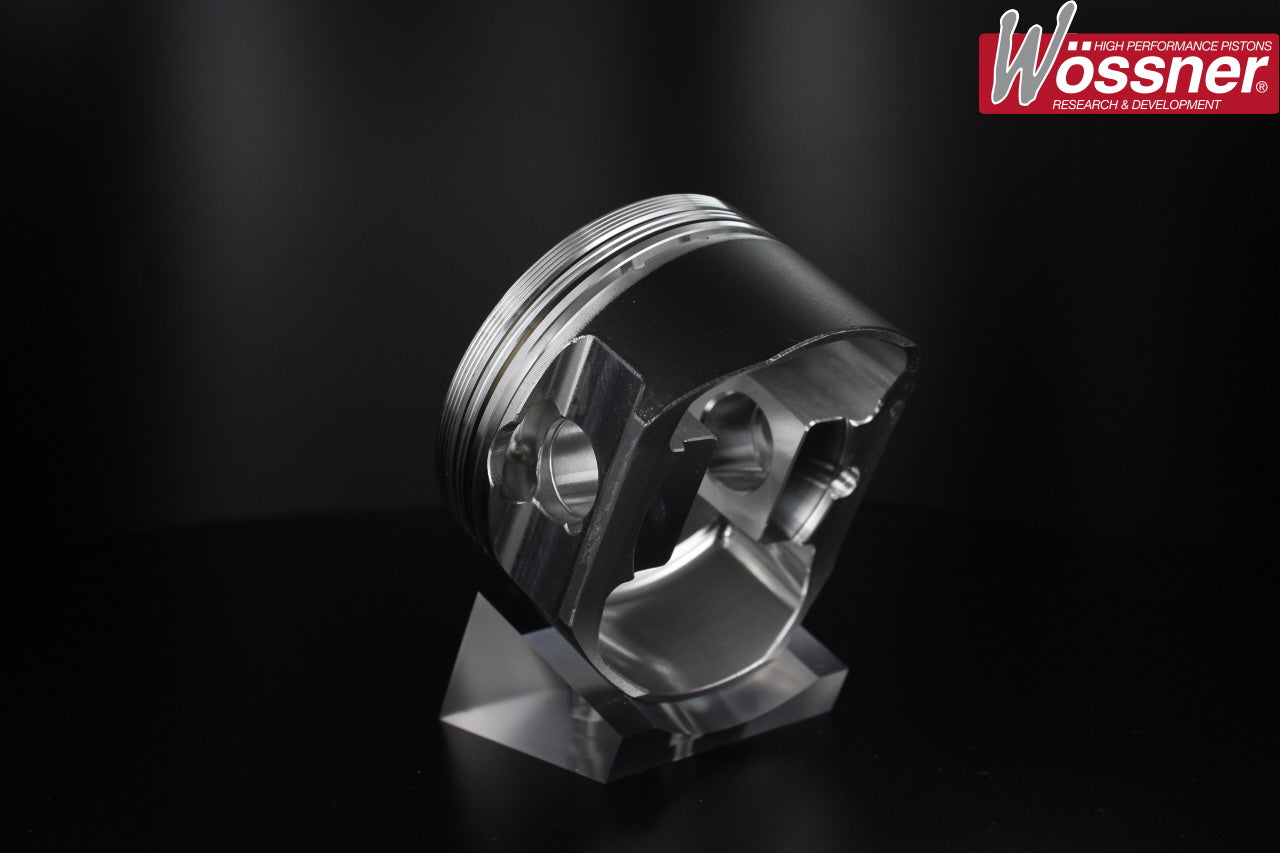

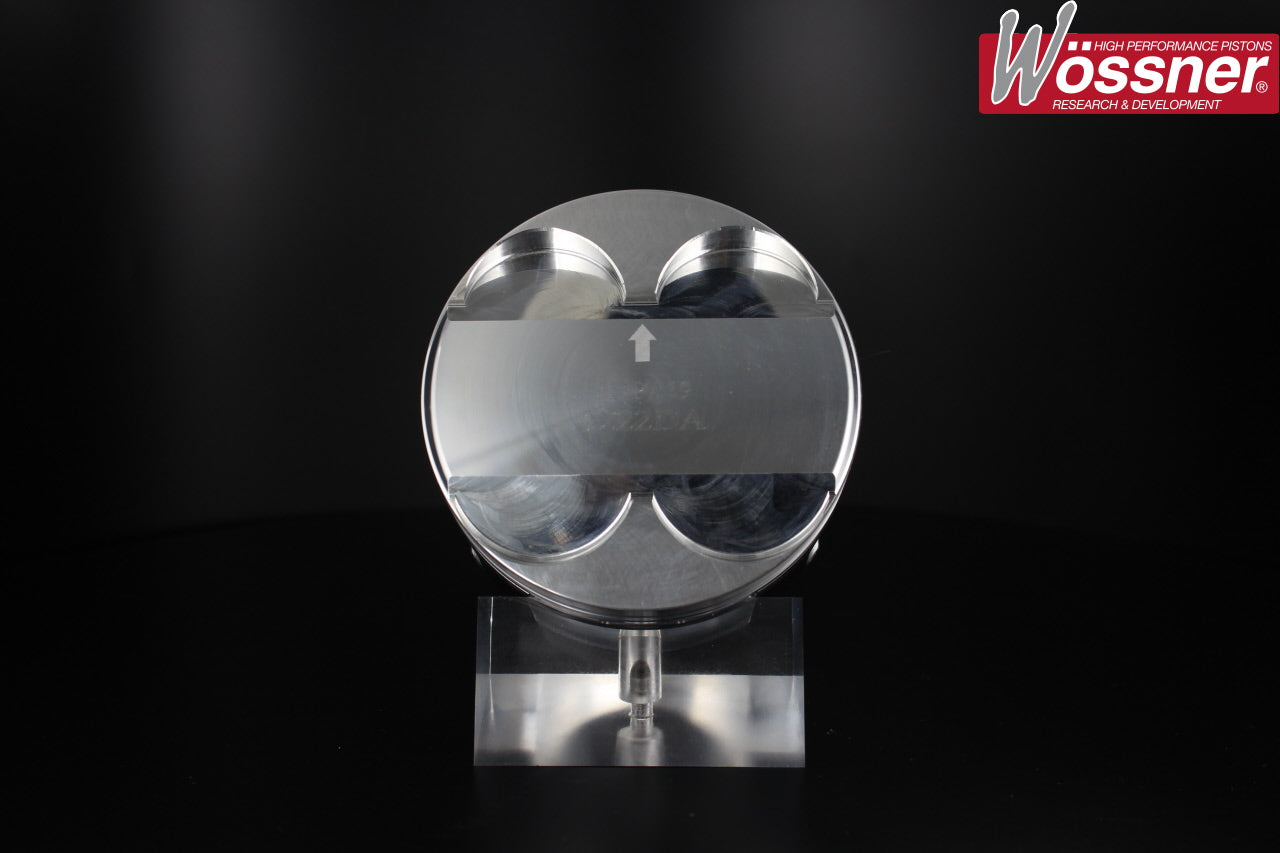

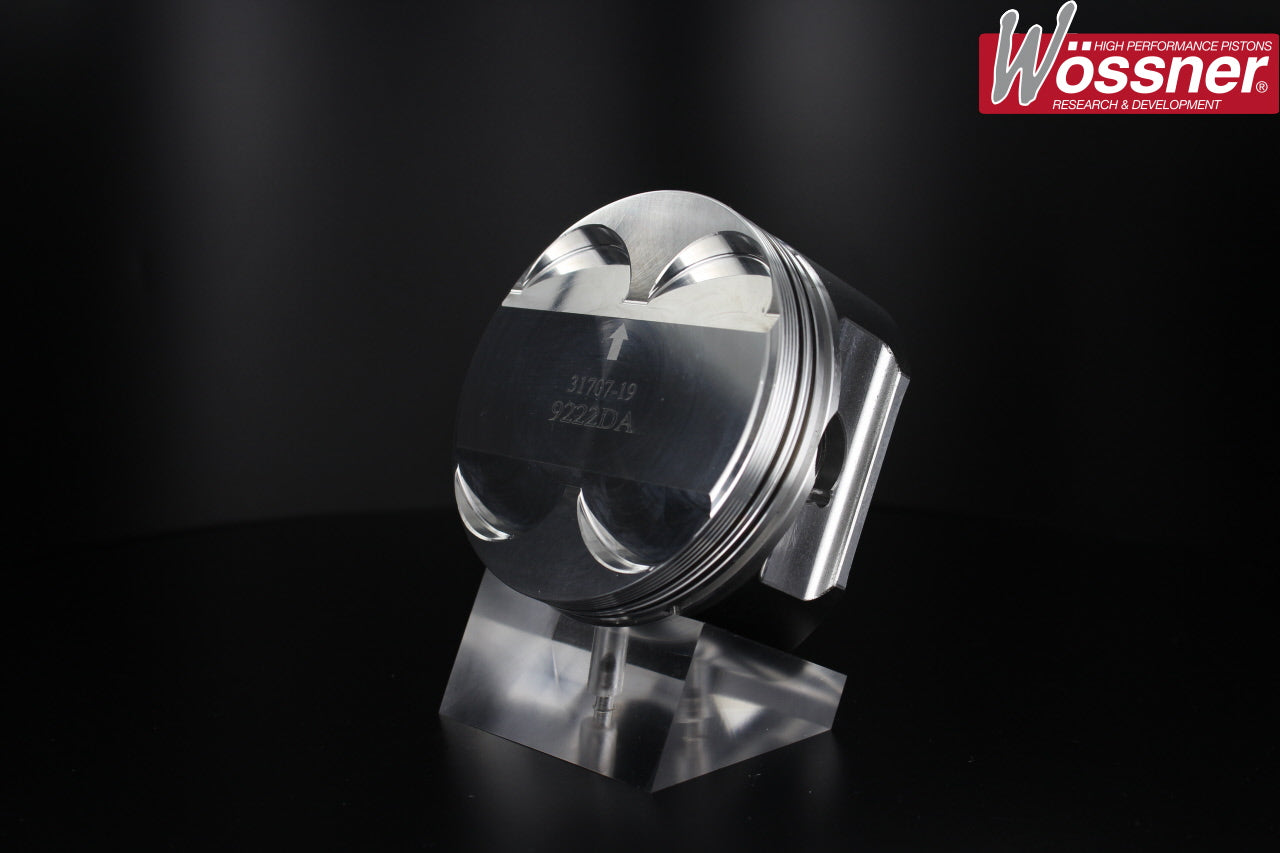

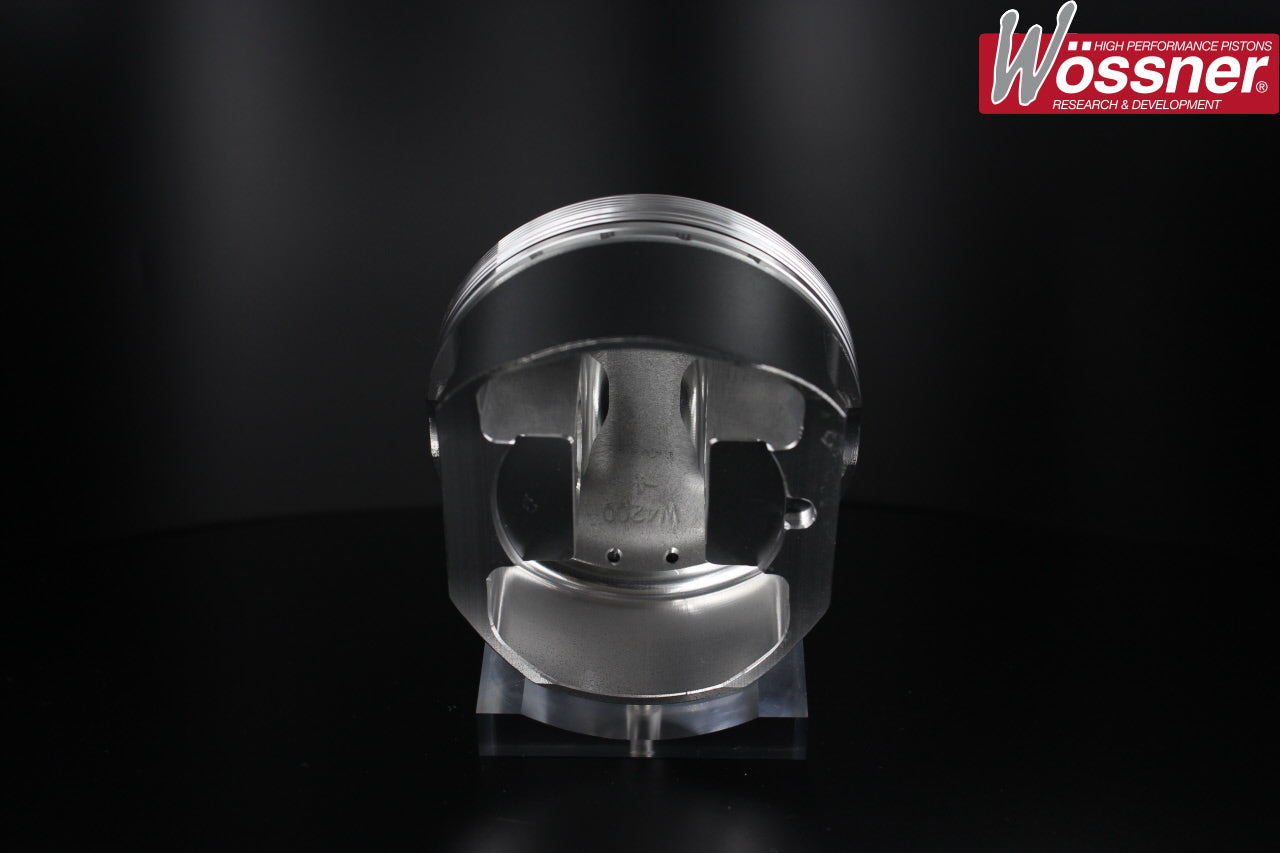

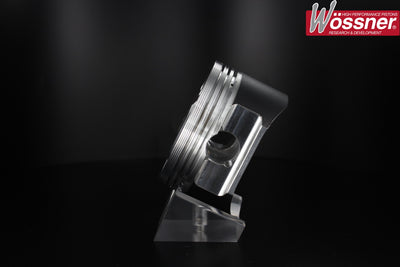

K-Series 1.8 16v High Comp Forged Piston kit.
Manufacturer kit reference: K9222
| Engine Code | 18K4F |
|---|---|
| YOM From | 1999 |
| YOM To | 2000 |
| Bore Size | 80.5mm – K9222D050 , 80mm – K9222DA , 81mm – K9222D100 |
| Stroke | 89.3mm |
| Compression Height | 23.8mm |
| OEM Comp Ratio | 10.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 133.1mm |
| Clip Part Number | CW18 |
| Pin Size | 18mm |
| Pin Part Number | WP099 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9222D050 | 80.43mm | 12.13:1 | 1817cc |
| K9222D100 | 80.93mm | 12.27:1 | 1840cc |
| K9222DA | 79.93mm | 12:1 | 1795cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
