£849.43

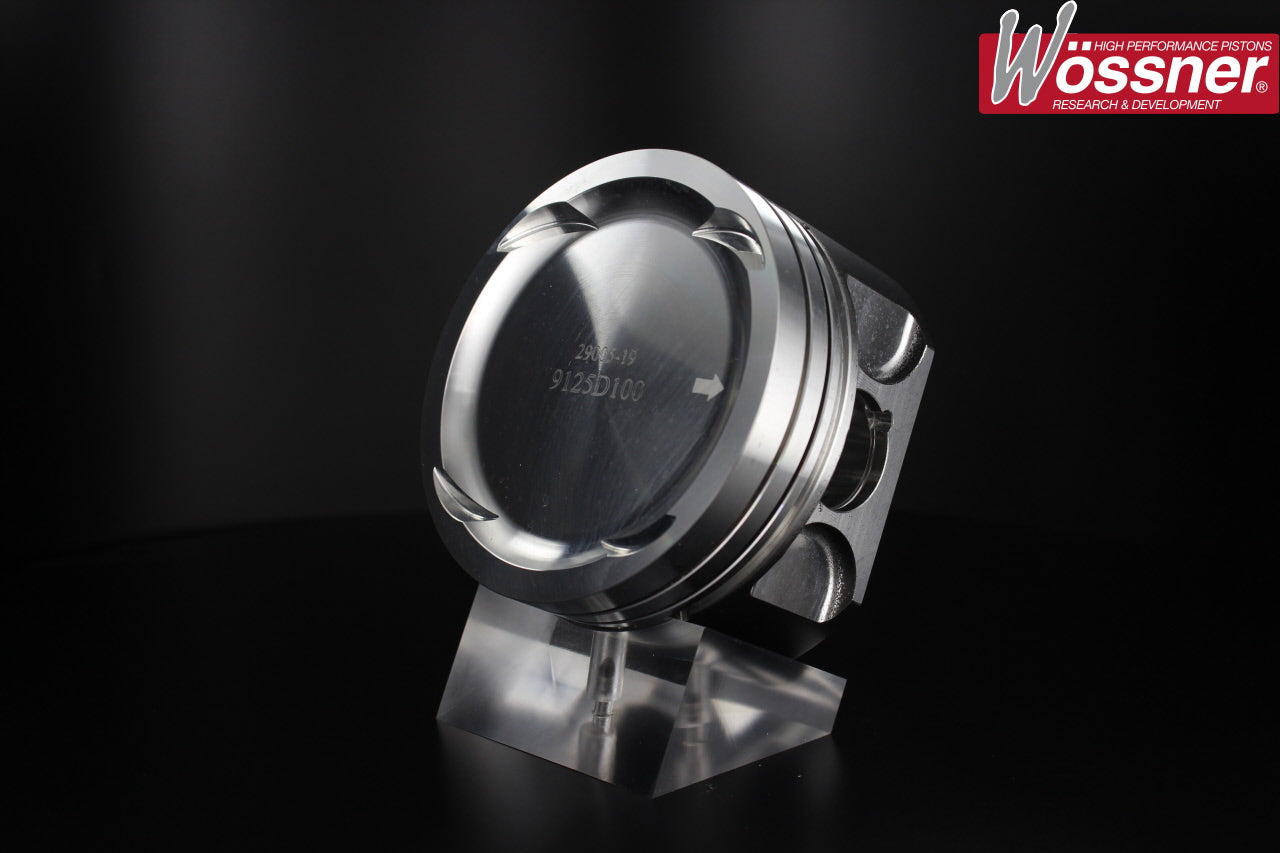

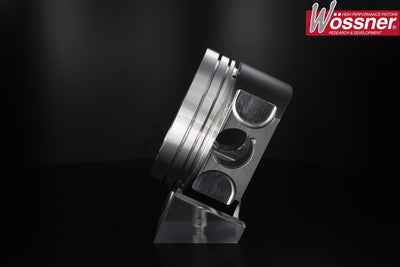

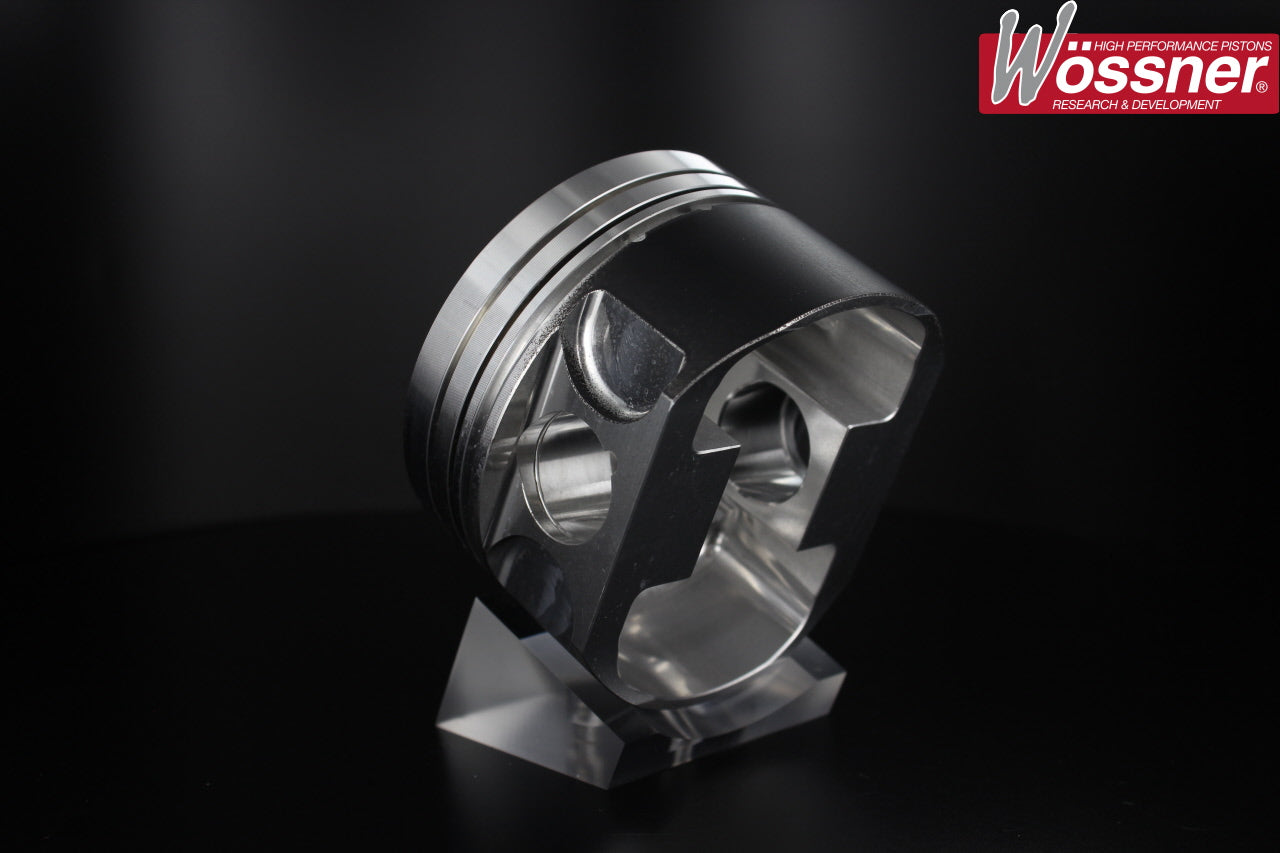

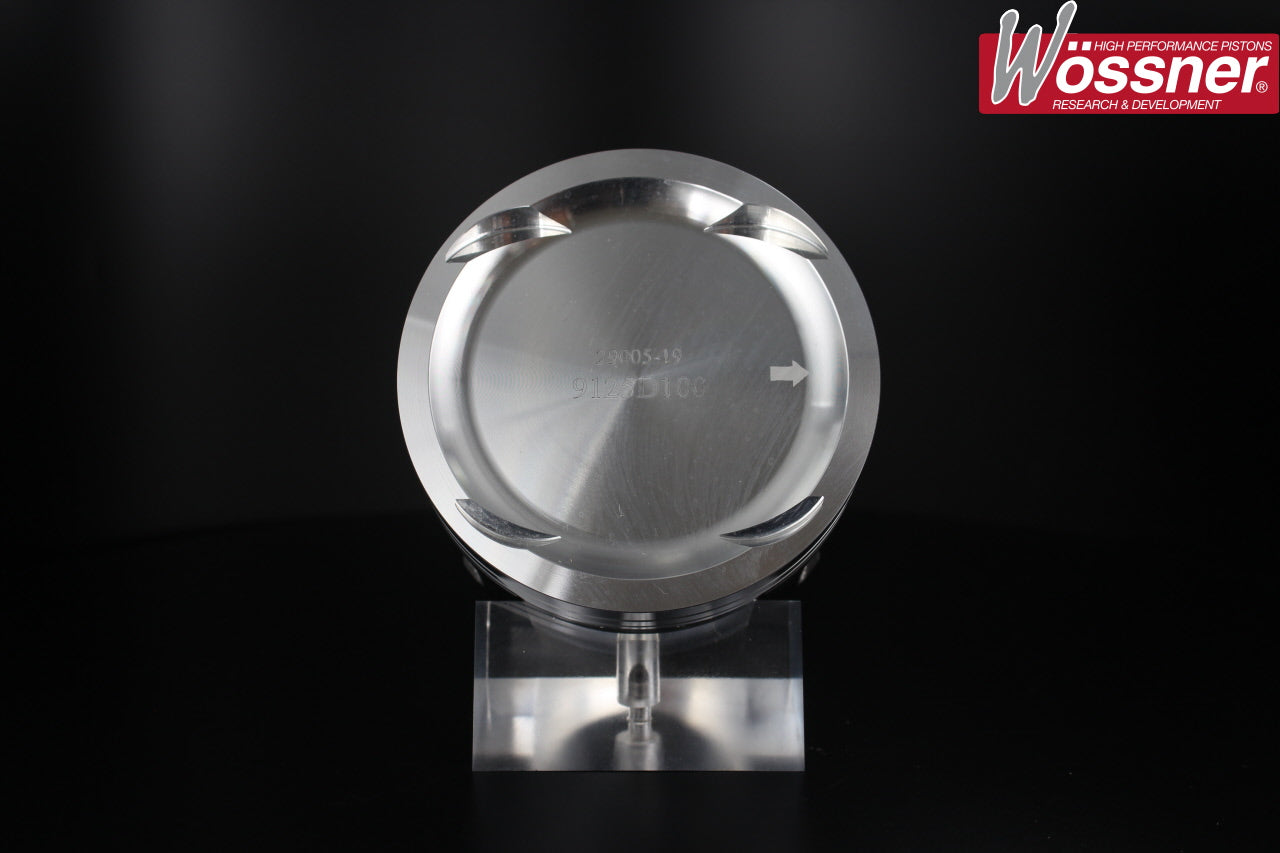

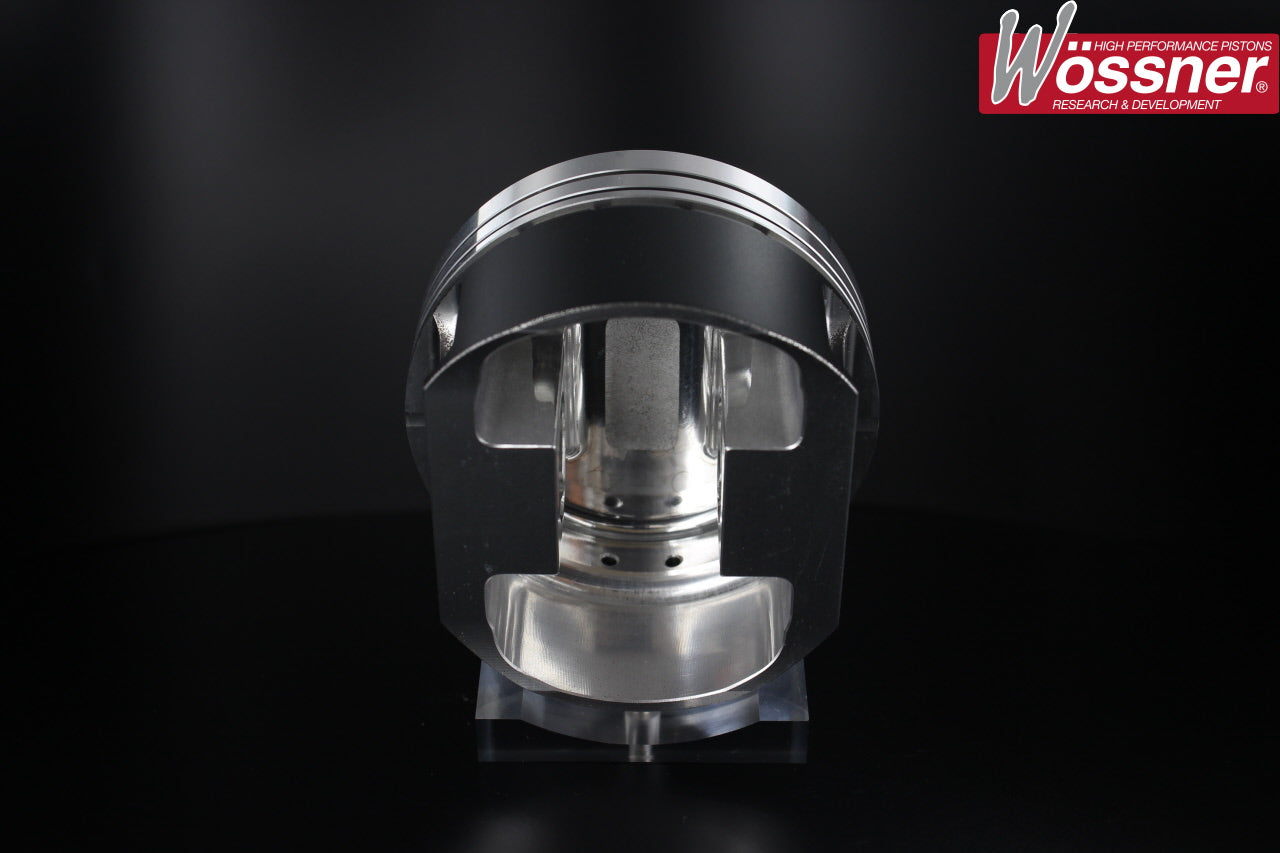

Lancer 2.0 16v Turbo Evo VIII-IX Low Comp Forged Piston Kit.
Manufacturer kit reference: K9125
| Engine Code | 4G63 |
|---|---|
| YOM From | 2004 |
| YOM To | 2007 |
| Bore Size | 85.5mm , 85mm , 86mm |
| Stroke | 88mm |
| Compression Height | 34.3mm |
| OEM Comp Ratio | 8.8:1 |
| Number of Rings | 3 |
| OEM Rod Length | 150mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP046 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0047 |
| Con Rod Length C/C | 150mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9125D050 | 85.42mm | 8.08:1 | 2020cc |
| K9125D100 | 85.92mm | 8.17:1 | 2044cc |
| K9125DA | 84.92mm | 8:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
