£849.43

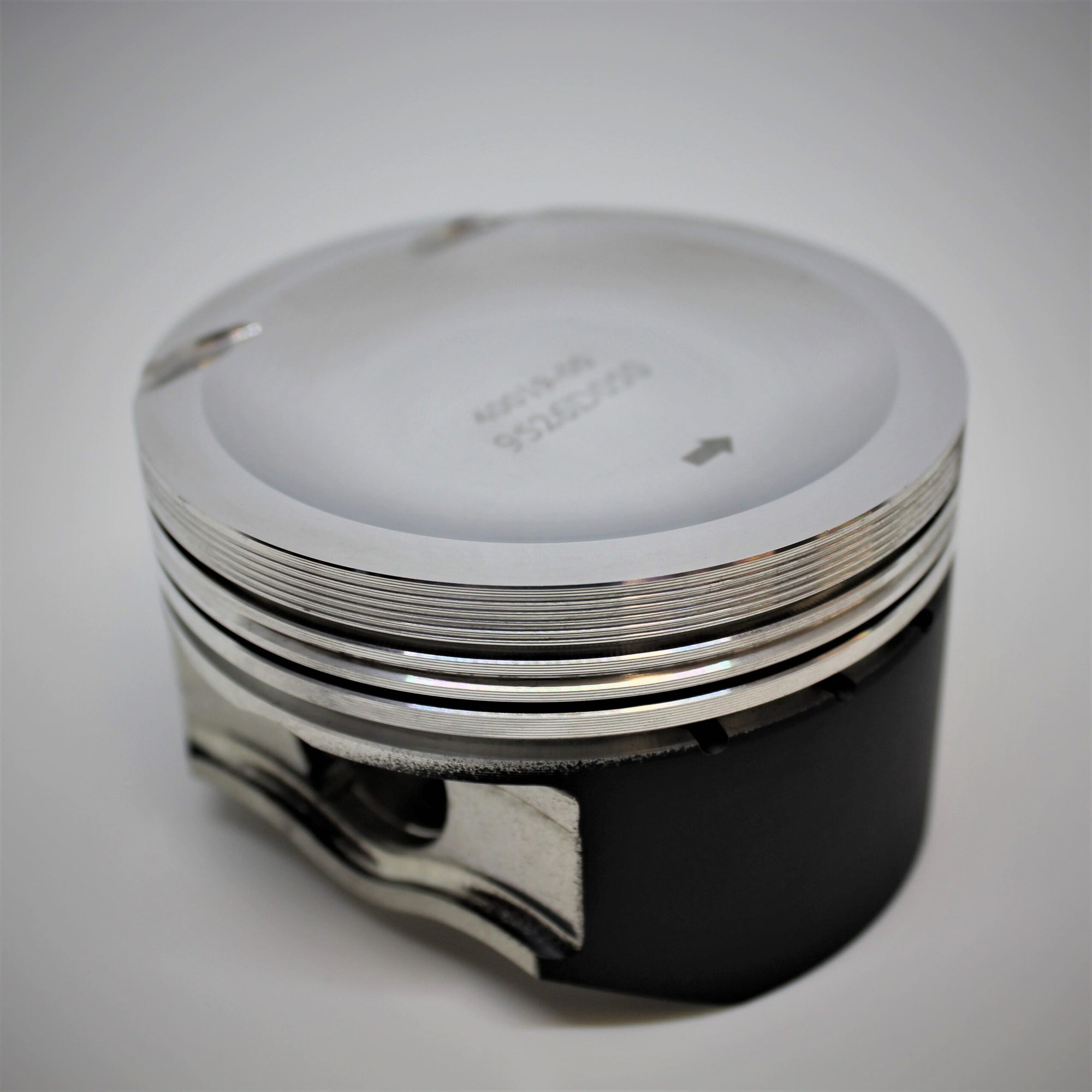

Mazdaspeed 3 & 6 MPS 2.3 16v Turbo Forged Piston Kit.
Manufacturer kit reference: K9526
| Engine Code | 2.3 DISI / L-VDT |
|---|---|
| YOM From | 2005 |
| YOM To | 2012 |
| Bore Size | 87.5mm – K9526DA , 88mm – K9526D050 |
| Stroke | 94mm |
| Compression Height | 32.5mm |
| OEM Comp Ratio | 9.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 150.8mm |
| Clip Part Number | CW23 |
| Pin Size | 22.5mm |
| Pin Part Number | WP120 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0358 |
| Con Rod Length C/C | 150.8mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9526D050 | 87.92mm | 9.56:1 | 2286cc |
| K9526DA | 87.42mm | 9.5:1 | 2260cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
