£909.65

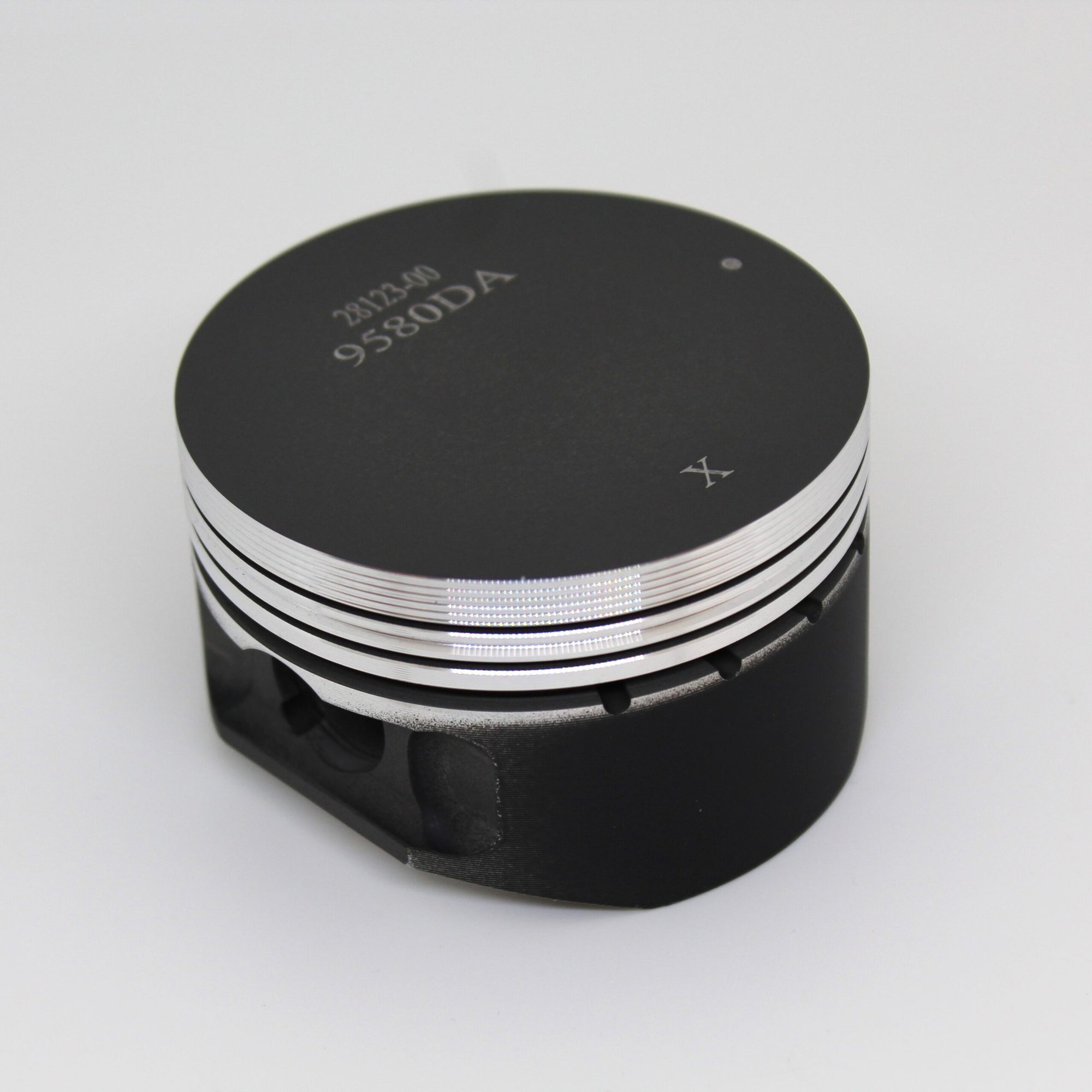

Mitsubishi Colt 1.5 Turbo Hard Anodised Forged Piston Kit.
Manufacturer kit reference: K9580
| Engine Code | 4G15 |
|---|---|
| YOM From | 2005 |
| YOM To | 2008 |
| Bore Size | K9580D025 – 75.75mm , K9580D050 – 76mm , K9580DA – 75.5mm |
| Stroke | 82mm |
| Compression Height | 26.6mm |
| OEM Comp Ratio | 9.0:1 |
| Number of Rings | 3 |
| OEM Rod Length | 131 |
| Suits Wossner Con Rod | G0368 |
| Clip Part Number | CW22 |
| Pin Size | 18mm |
| Pin Part Number | WP064-SP |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9580DA | 75.43mm | 9.0:1 | 1449cc |
| K9580D025 | 75.68mm | 9.04:1 | 1468cc |
| K9062D050-1 | 75.93mm | 9.08:1 | 1487cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
