£849.43

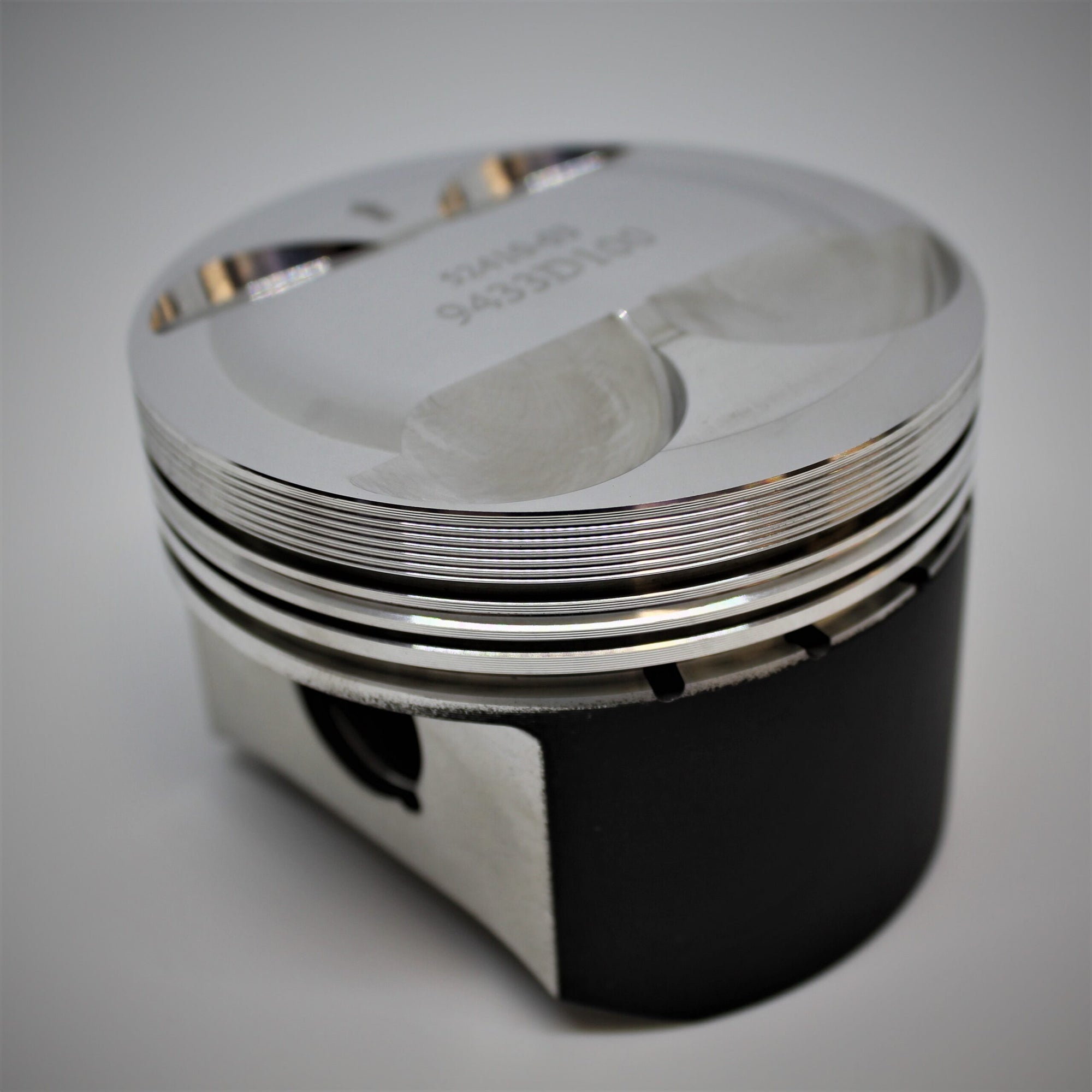

MR2 & Celica 2.0 16v Turbo 9:1 Forged Piston Kit.
Manufacturer kit reference: K9433
| Engine Code | 3SG |
|---|---|
| YOM From | 1992 |
| YOM To | 1997 |
| Bore Size | 86.5mm – K9433D050 , 86mm – K9433DA , 87mm – K9433D100 |
| Stroke | 86mm |
| Compression Height | 35mm |
| OEM Comp Ratio | 09:01 |
| Number of Rings | 3 |
| OEM Rod Length | 138mm |
| Clip Part Number | CW22 |
| Pin Size | 22mm |
| Pin Part Number | WP017 |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0051 |
| Con Rod Length C/C | 138mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9433D050 | 86.43mm | 9.0:1 | 2021cc |
| K9433D100 | 86.93mm | 9.19:1 | 2044cc |
| K9433DA | 85.93mm | 9:1 | 1997cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
