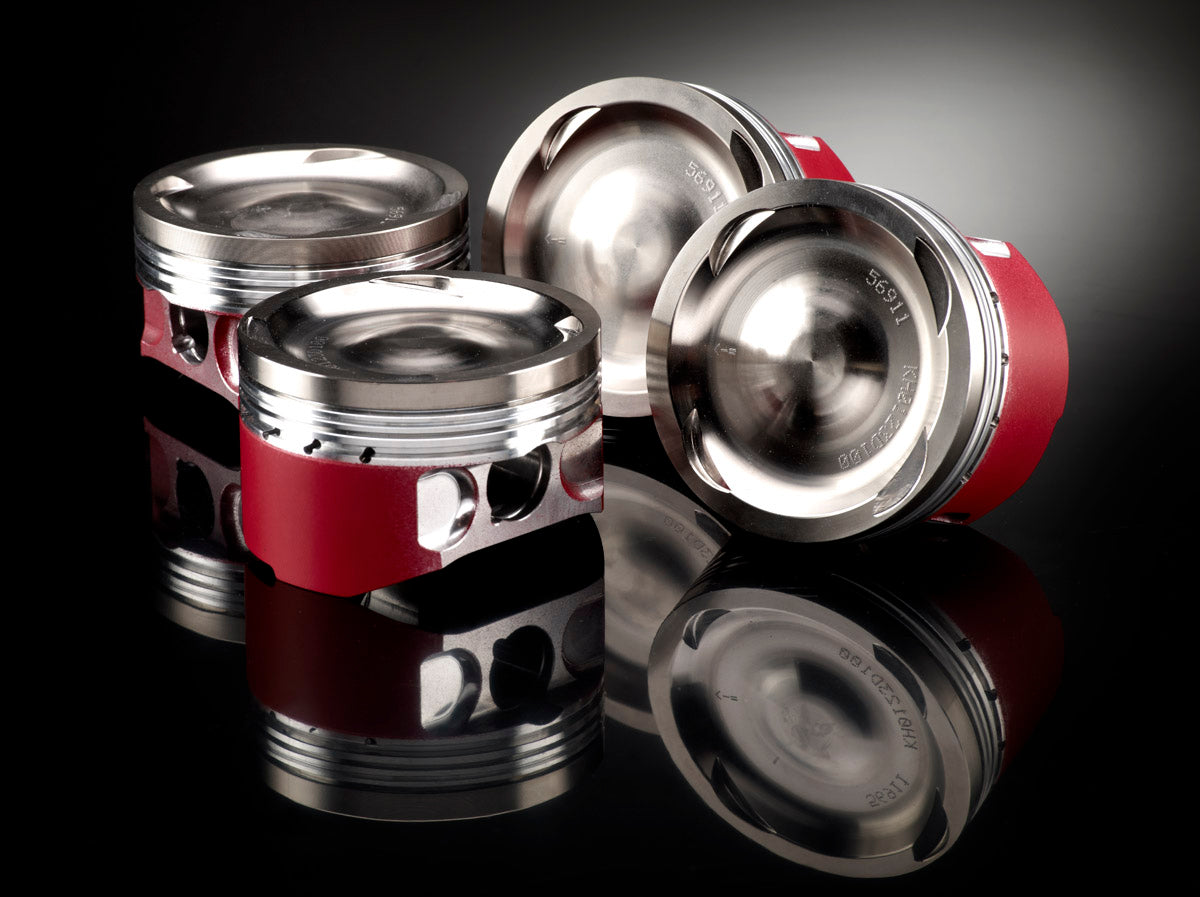

Wossner R21 2.0 16v Turbo Inc Quadra Forged Piston Kit (K9090)

Wossner Pistons

Wossner R21 2.0 16v Turbo Inc Quadra Forged Piston Kit (K9090)

£849.43

R21 2.0 16v Turbo Inc Quadra Forged Piston Kit.

Manufacturer kit reference: K9090

Technical specifications

Bore Size 88.5mm , 88mm
Stroke 82mm
Compression Height 40.5mm
OEM Comp Ratio 08:01
Number of Rings 3
OEM Rod Length 137mm
Clip Part Number CW24
Pin Size 24mm
Pin Part Number WP022
Cylinders 4
Valves Per Cylinder 4

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9090D050 88.43mm 8.08:1 2017cc
K9090DA 87.93mm 8:1 1994cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
