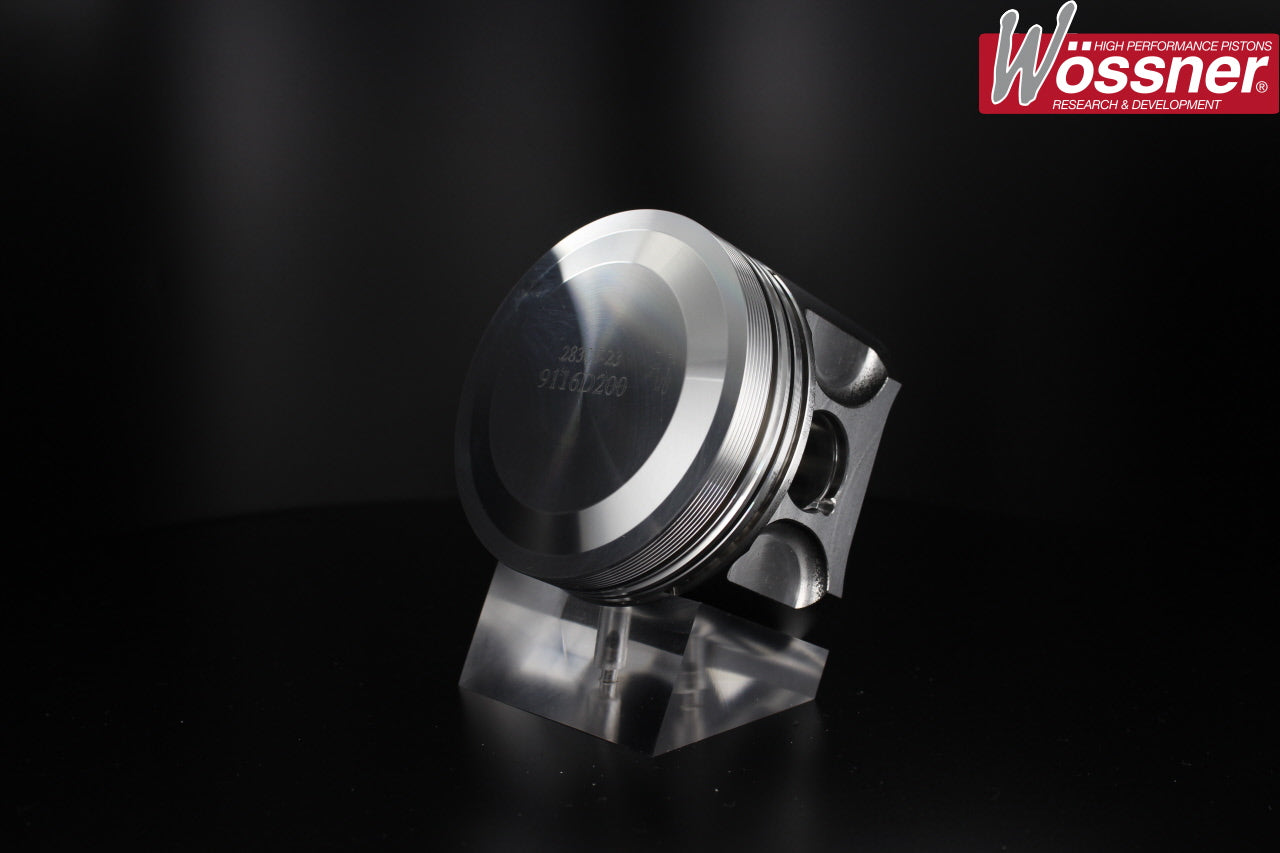

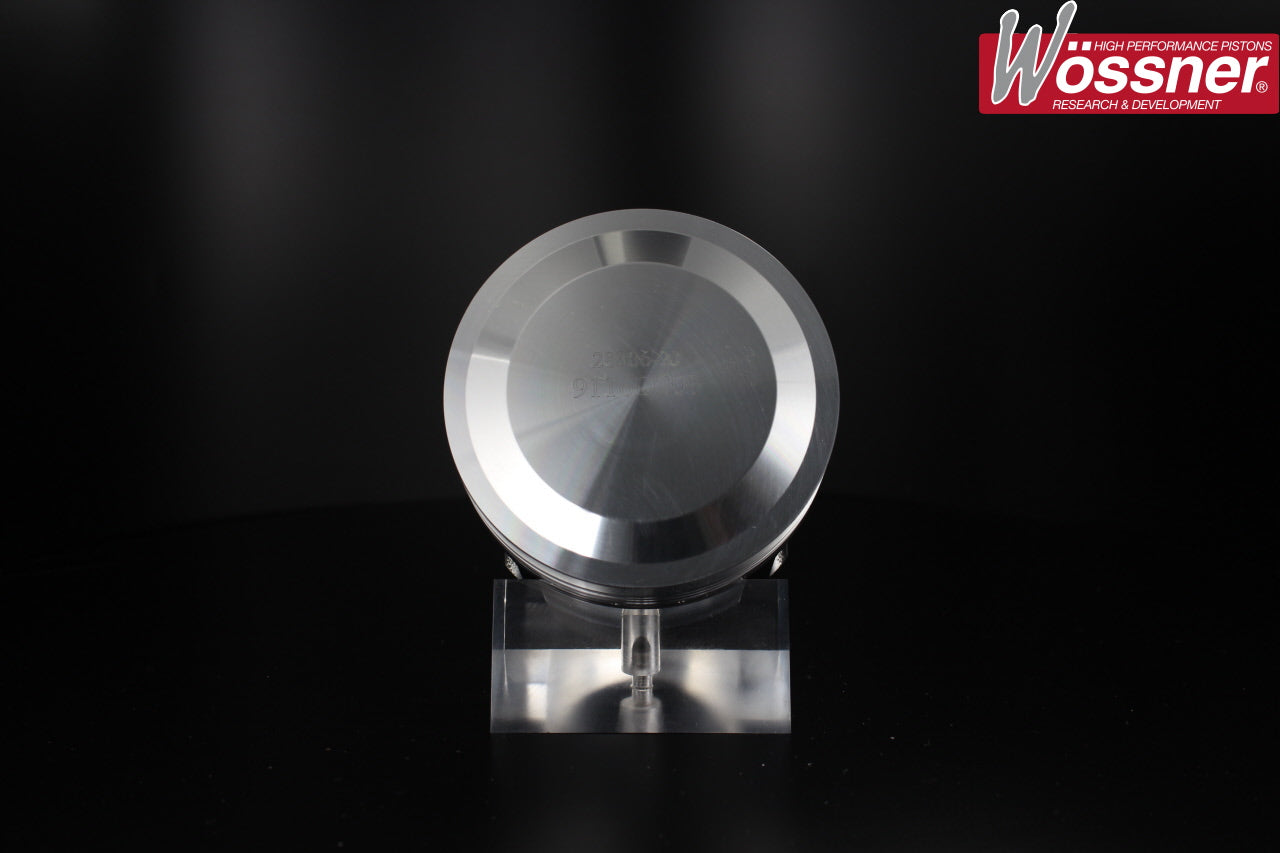

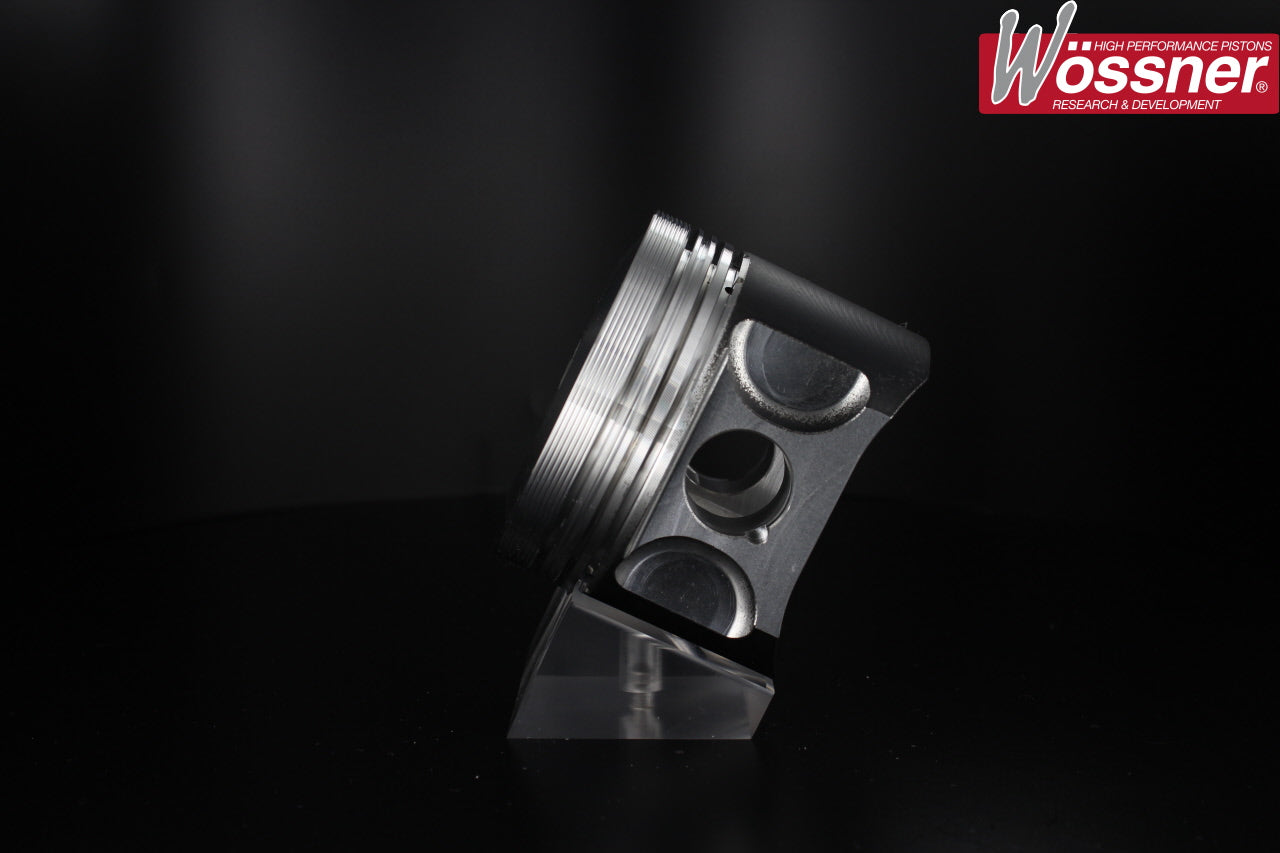

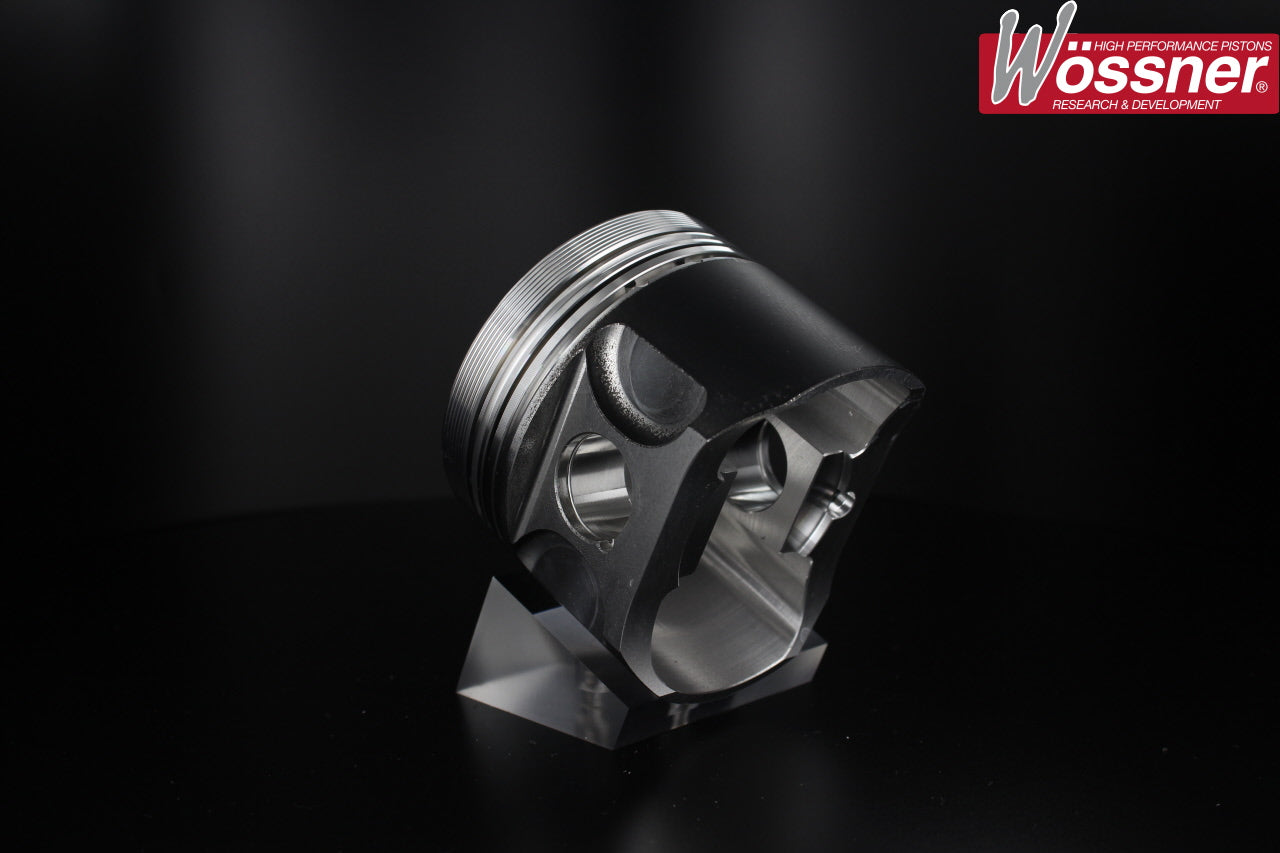

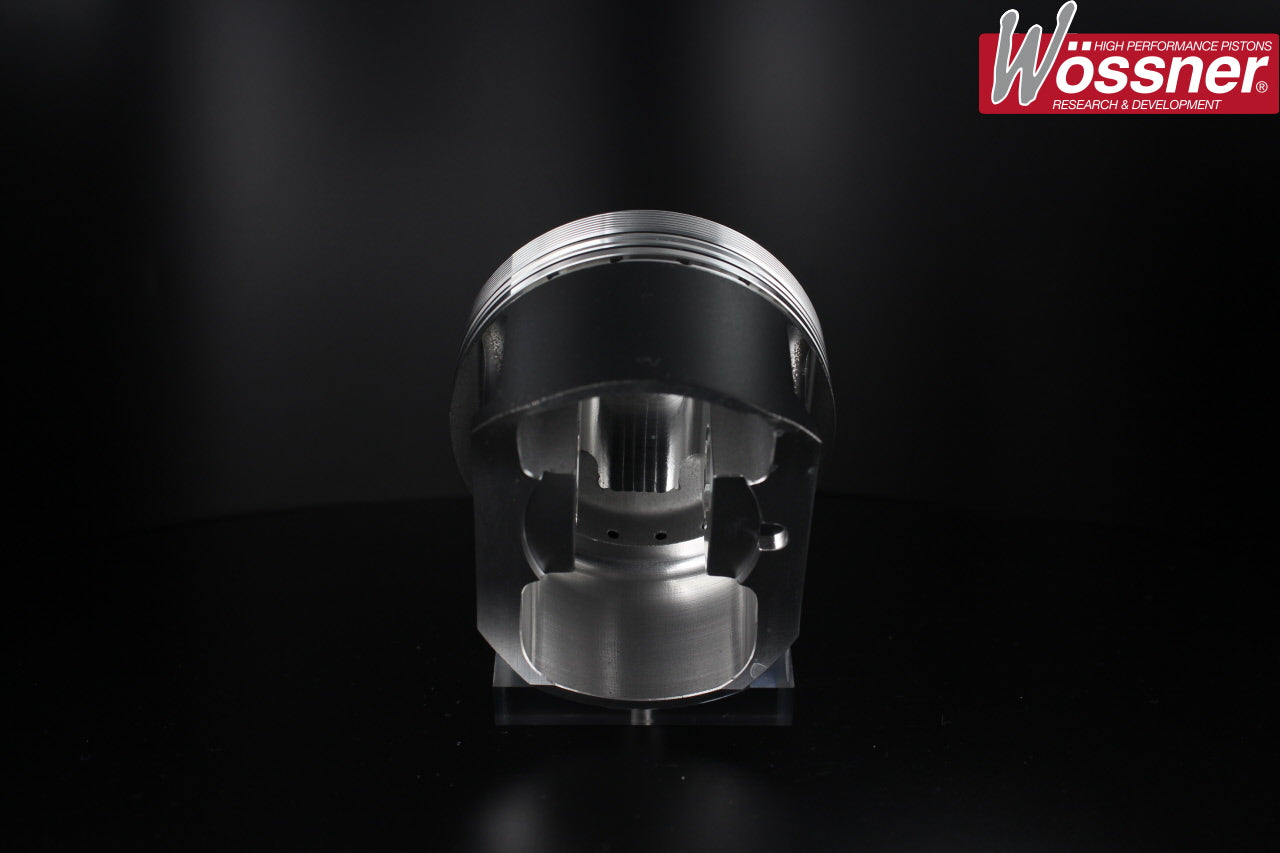

Wossner R5 Turbo 1&2 1.4 8v Forged Piston Kit (K9116)

£808.99

R5 Turbo 1&2 1.4 8v Forged Piston Kit.

Manufacturer kit reference: K9116

Technical specifications

Engine Code 8400
YOM From 1977
YOM To 1981
Bore Size 76mm , 77mm , 78mm
Stroke 77mm
Compression Height 35.6mm
OEM Comp Ratio 07:01
Number of Rings 3
OEM Rod Length 128mm
Clip Part Number CW20
Pin Size 20mm
Pin Part Number WP052
Cylinders 4
Valves Per Cylinder 2

Piston specifications by size

Piston reference Piston diameter Compression ratio Capacity
K9116D100 76.93mm 7.16:1 1433cc
K9116DA 75.93mm 7:1 1396cc
K9116D200 77.93mm 7.32:1 1471cc

Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
