£1,098.78

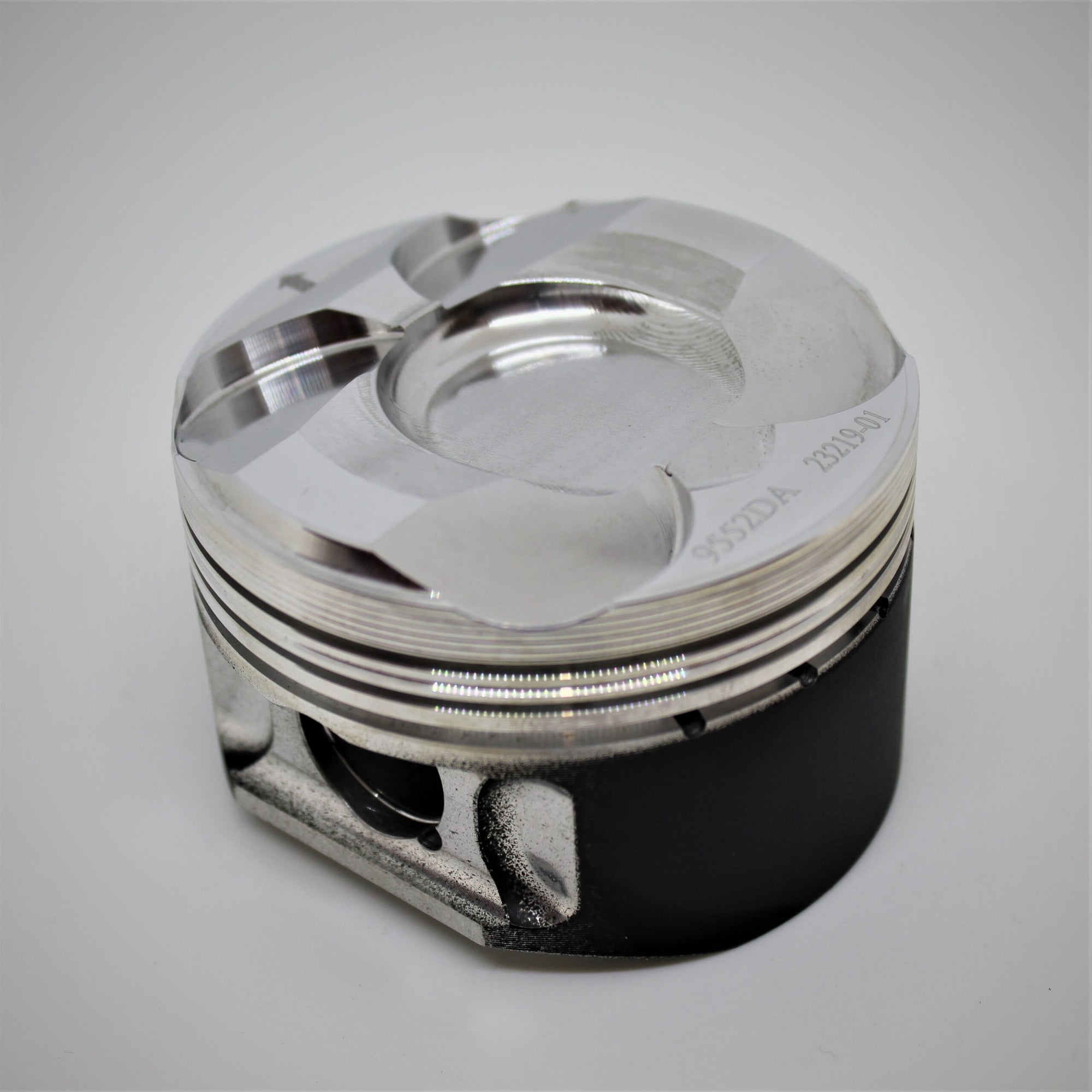

RCZ & 208 GTi 1.6 16v Turbo Forged Piston kit.
Manufacturer kit reference: K9552
| Engine Code | EP6C R8 , N18 |
|---|---|
| YOM From | 2018 |
| YOM To | 2021 |
| Bore Size | 77mm – K9552DA |
| Stroke | 85.8mm |
| Compression Height | 28.5mm |
| OEM Comp Ratio | 10.2:1 |
| Number of Rings | 3 |
| OEM Rod Length | 132.5mm |
| Clip Part Number | CW20 |
| Pin Size | 20mm |
| Pin Part Number | WP068DLC |
| Cylinders | 4 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0212 |
| Con Rod Length C/C | 132.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9552DA | 76.93mm | 10.2:1 | 1597cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
