£1,401.83

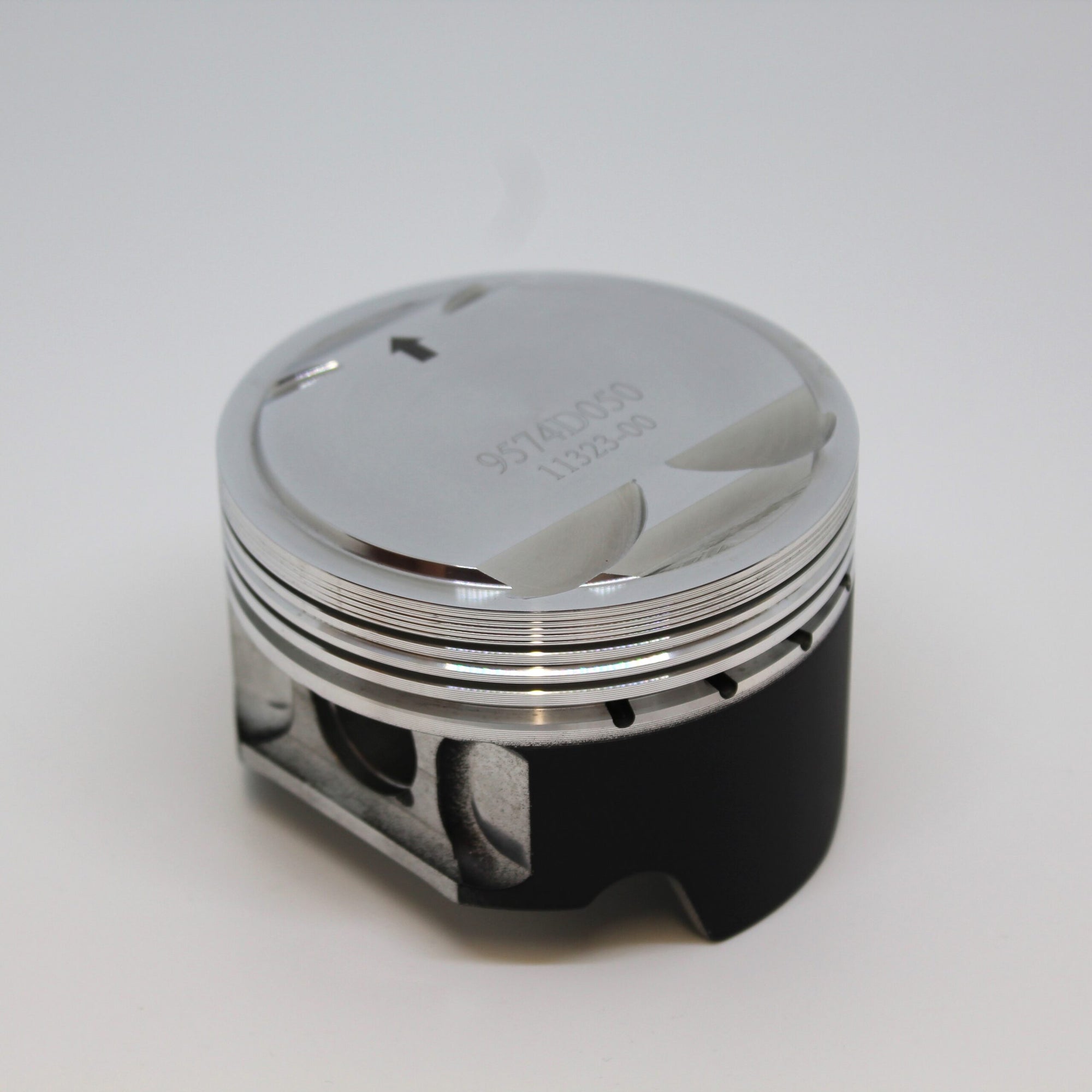

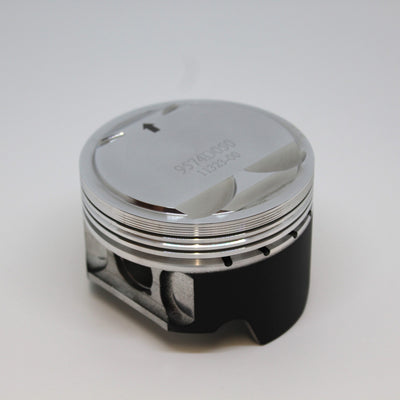

Skyline 2.5 NEO 24v VVT Turbo R32/R33 & R34 Low Comp Forged Piston Kit.
Manufacturer kit reference: K9574
| Engine Code | RB25DET NEO |
|---|---|
| YOM From | 1994 |
| YOM To | 2006 |
| Bore Size | 86.5mm – K9574D050 , 87mm – K9574D100 |
| Stroke | 71.7mm |
| Compression Height | 31mm |
| OEM Comp Ratio | 8.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 121.5mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0056 |
| Con Rod Length C/C | 121.5mm |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9574D050 | 86.43mm | 9.0:1 | 2527cc |
| K9574D100 | 86.93mm | 9.08:1 | 2556cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
