£2,121.52

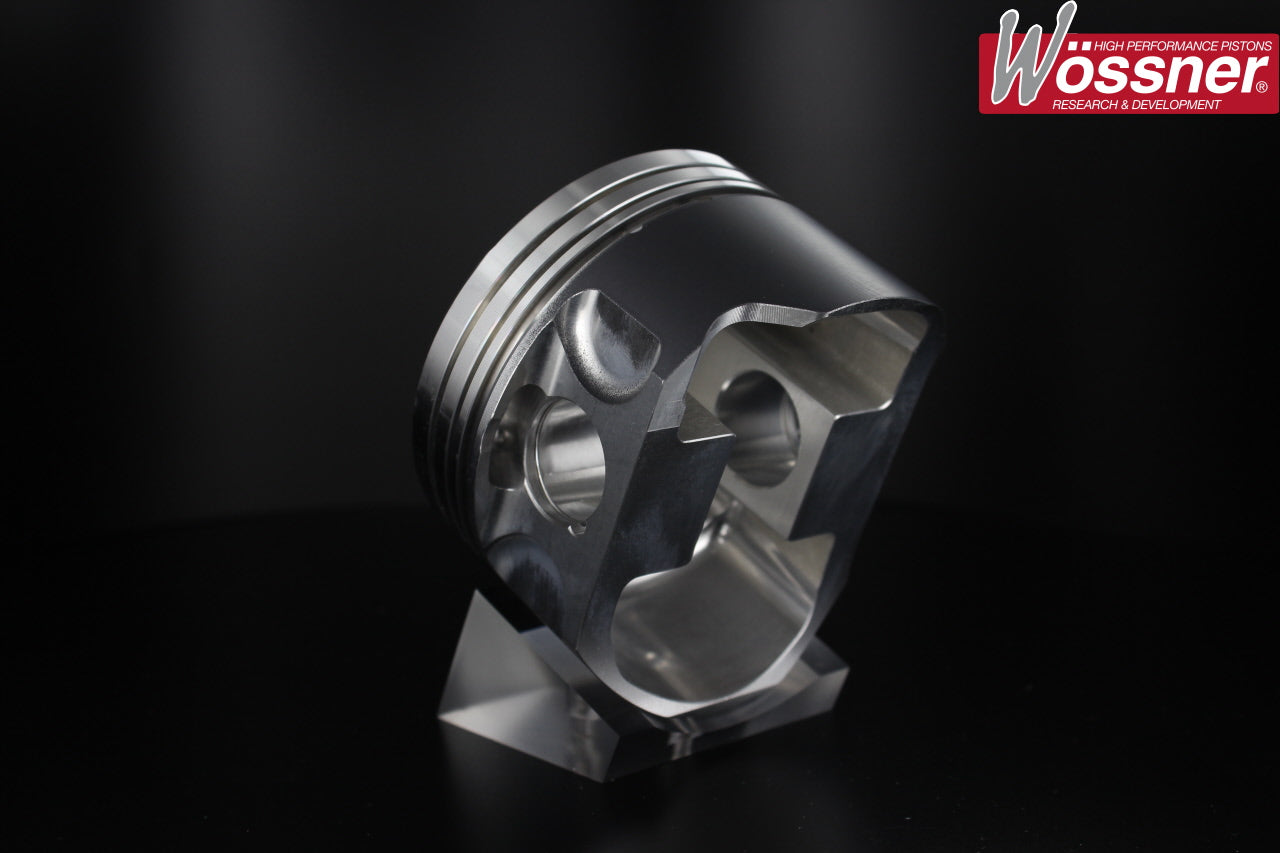

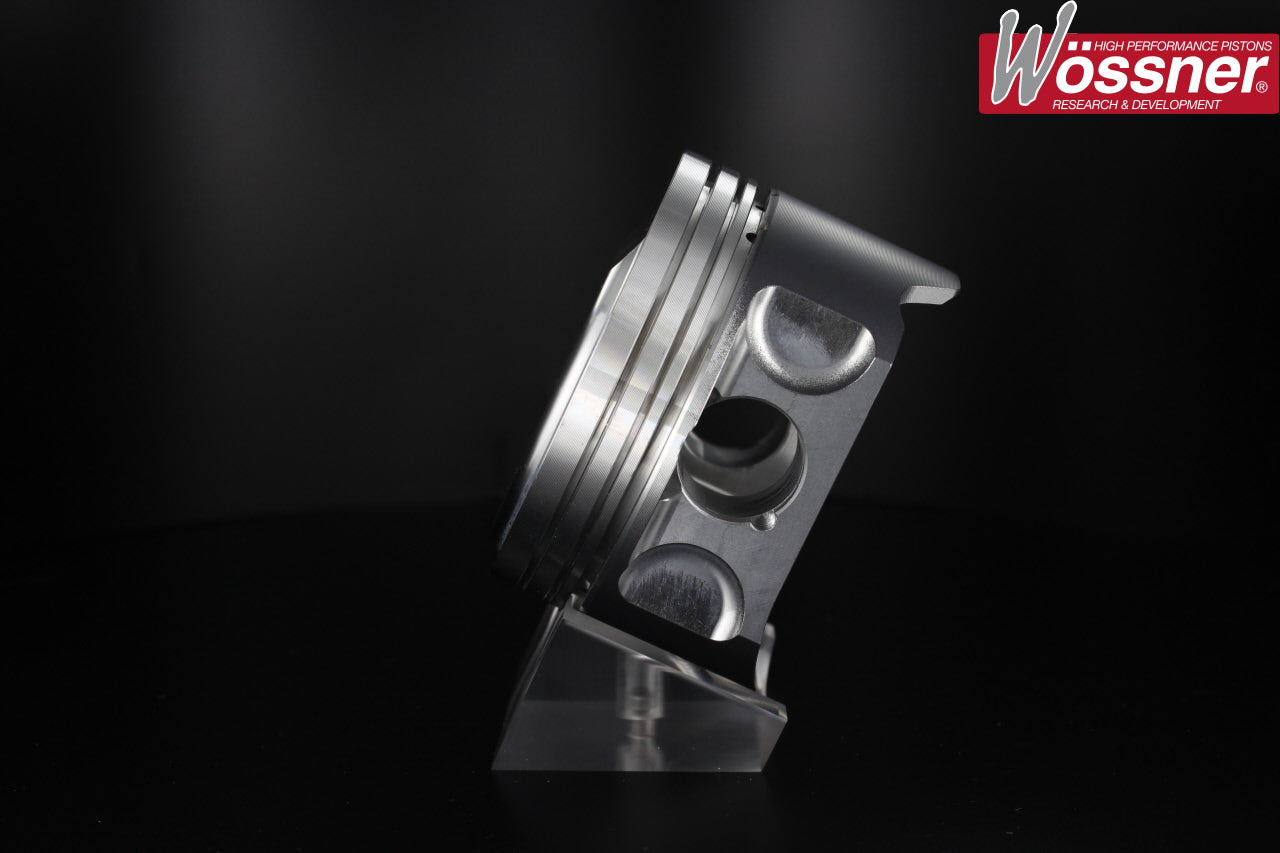

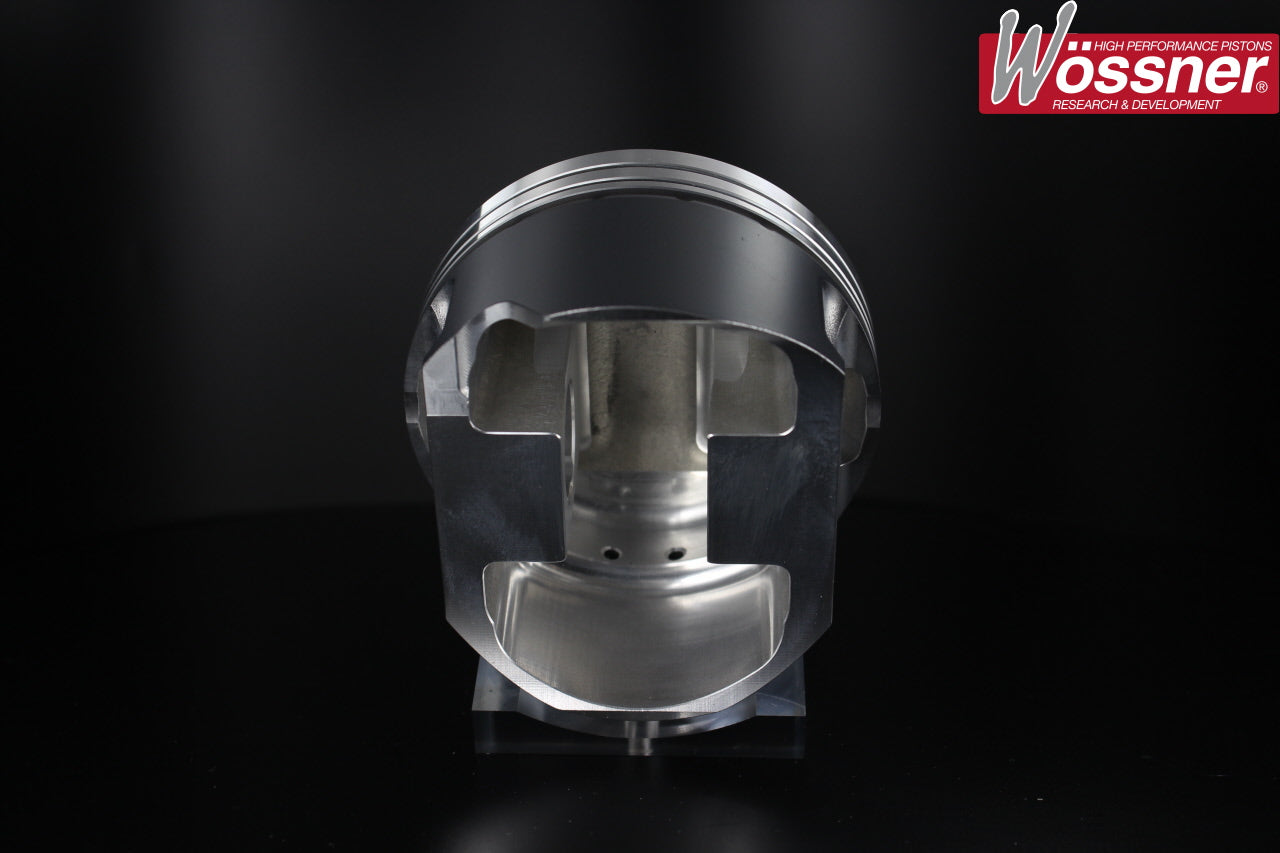

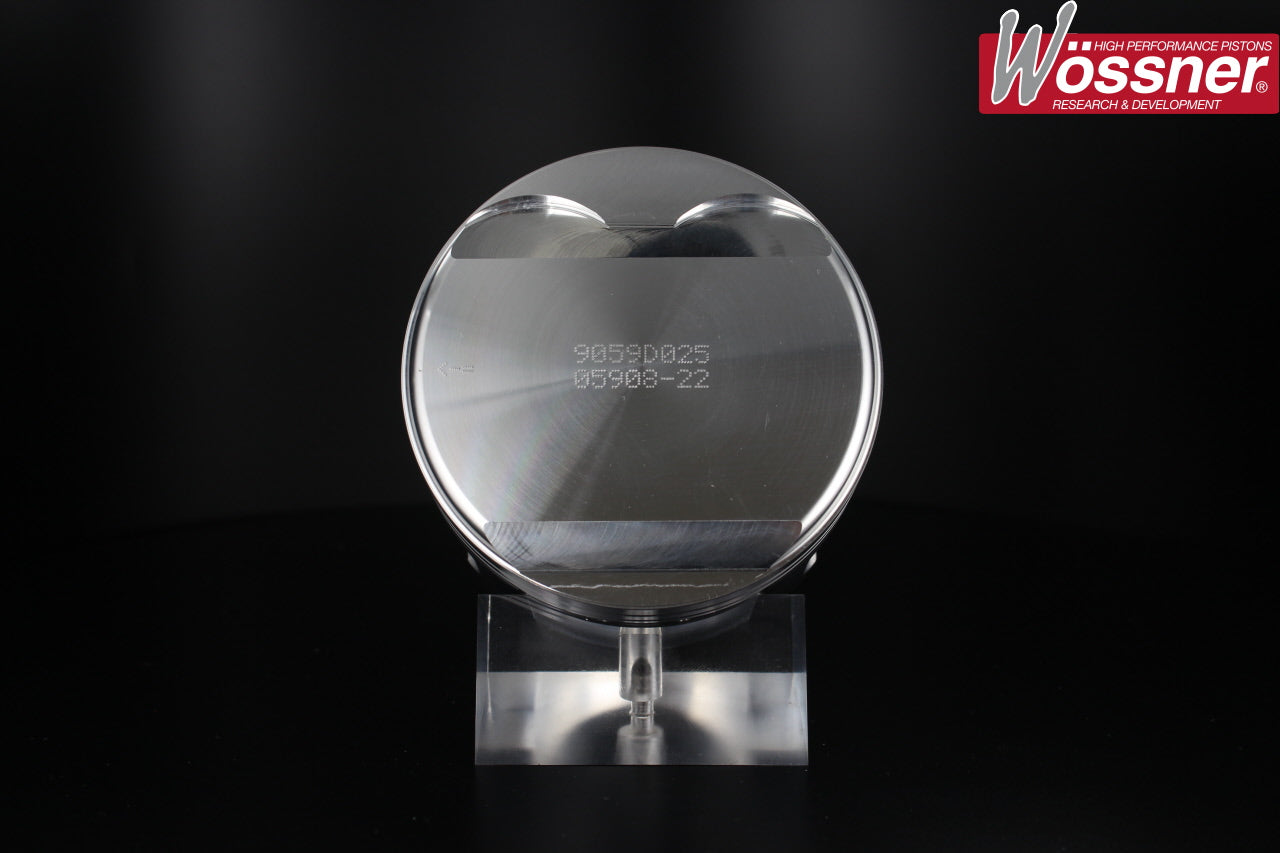

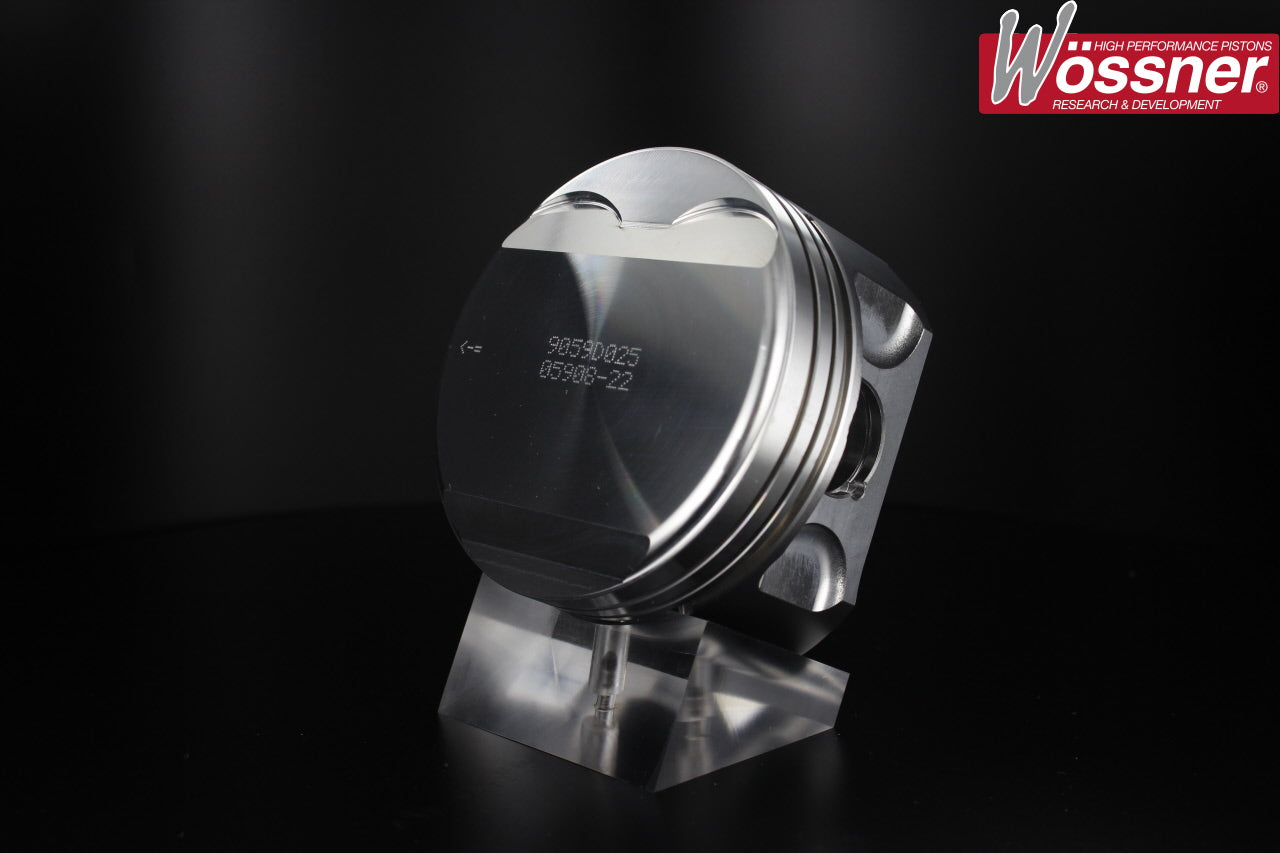

Skyline GTR 2.6 24v Turbo R32/R33 & R34 Low Comp Forged Piston & I-Beam Steel Con Rod Package.
Manufacturer kit reference: K9059/G0185
| Engine Code | RB26DETT |
|---|---|
| YOM From | 1989 |
| YOM To | 2002 |
| Bore Size | 86.25mm , 86.5mm , 86mm , 87mm |
| Stroke | 73.7mm |
| Compression Height | 30mm |
| OEM Comp Ratio | 8.5:1 |
| Number of Rings | 3 |
| OEM Rod Length | 121.5mm |
| Clip Part Number | CW21 |
| Pin Size | 21mm |
| Pin Part Number | WP092 |
| Cylinders | 6 |
| Valves Per Cylinder | 4 |
| Suits Wossner Con Rod | G0056 |
| Con Rod Length C/C | 121.5mm |
| Engine Code | RB25 & RB26 |
|---|---|
| Con Rod Length C/C | 121.5mm |
| Con Rod Big End Dia | 51mm |
| Con Rod Big End Width | 21.75mm |
| Con Rod Small End Dia | 21mm |
| Con Rod Small End Width | 21.75mm |
| Con Rod Bolt | 3/8" |
| Piston reference | Piston diameter | Compression ratio | Capacity |
|---|---|---|---|
| K9059D025 | 86.18mm | 7.85:1 | 2583cc |
| K9059D050 | 86.43mm | 7.88:1 | 2598cc |
| K9059D100 | 86.93mm | 7.96:1 | 2628cc |
| K9059DA | 85.93mm | 7.8:1 | 2568cc |
Piston diameter and cylinder bore are different measurements. Select the correct size and confirm the engine specification before ordering.
